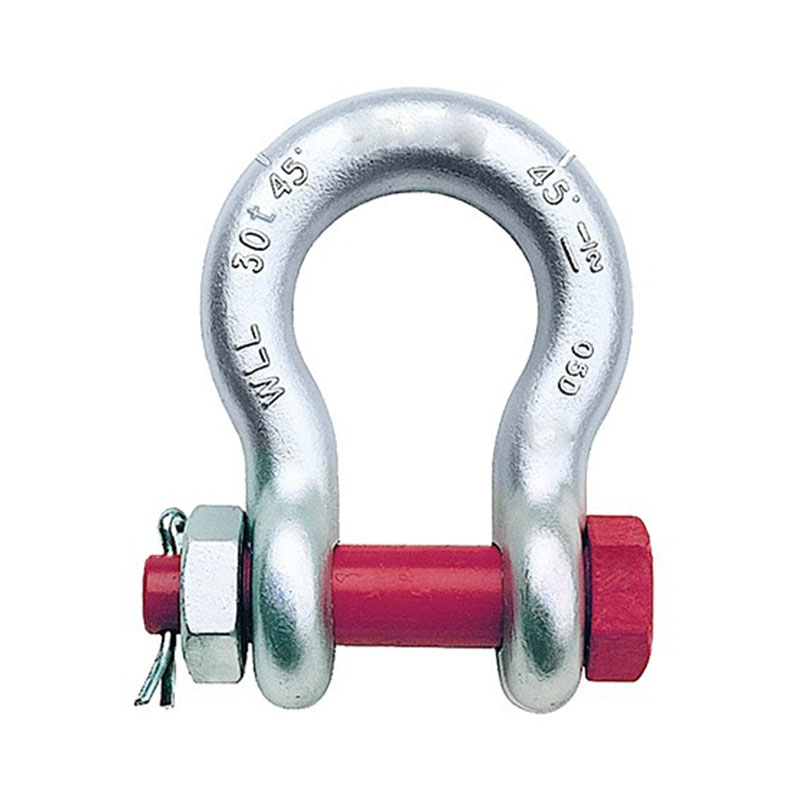

Bolt type safety anchor shackles can be used in applications where round pin or screw pin shackles are used. However, a bolt type shackle is a better choice in permanent or long-term applications, or if there's a risk of a load sliding on the shackle pin, causing it to rotate.

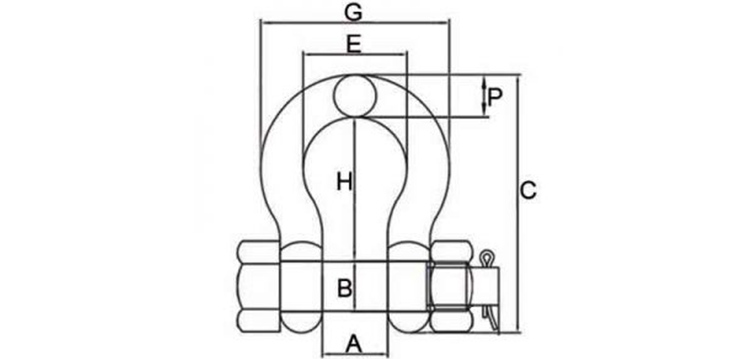

| Size | Working Load Limited | Weight | Dimensions (in.) | Tolerance +/- | |||||||
| (in) | (t) | (lbs) | A | B | H | E | C | G | P | C | A |
| 3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.6 | 1.47 | 0.98 | 0.19 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.11 | 0.47 | 0.31 | 1.13 | 0.78 | 1.84 | 1.28 | 0.25 | 0.06 | 0.06 |
| 3/8 | 1 | 0.33 | 0.66 | 0.44 | 1.44 | 1.03 | 2.49 | 1.78 | 0.38 | 0.13 | 0.06 |
| 1/2 | 2 | 0.79 | 0.81 | 0.64 | 1.88 | 1.31 | 3.28 | 2.31 | 0.5 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.68 | 1.06 | 0.77 | 2.38 | 1.69 | 4.19 | 2.94 | 0.69 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.72 | 1.25 | 0.89 | 2.81 | 2 | 4.97 | 3.5 | 0.81 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.95 | 1.44 | 1.02 | 3.31 | 2.28 | 5.83 | 4.03 | 0.97 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.66 | 1.69 | 1.15 | 3.75 | 2.69 | 6.56 | 4.69 | 1.06 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 15.83 | 2.25 | 1.53 | 5.25 | 3.63 | 9.16 | 6.38 | 1.5 | 0.25 | 0.13 |
