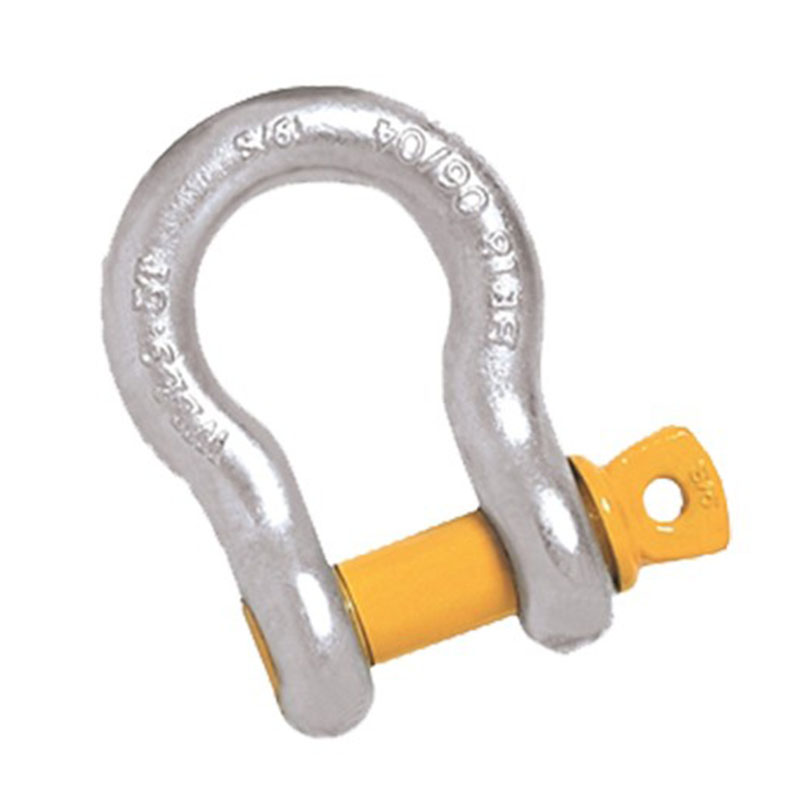

AS2741 Grade S Bow Shackle are most commonly used for lifting applications, providing connections to Chain, Wire Rope and other rated fittings within the Marine, Agricultural, Mining and Engineering Industries. Screw pin bow shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap.

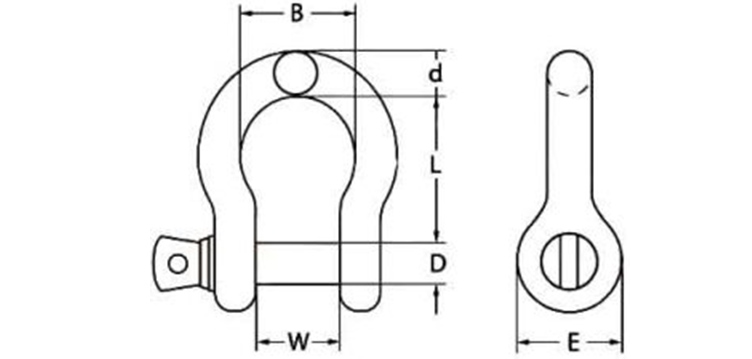

Size (mm) | WLL (ton) | Weight (kg) | Dimensions (mm) | |||||
| B | D | d | E | L | W | |||
| 5 | 0.33 | 0.02 | 15 | 6 | 5 | 14 | 22 | 10 |
| 6 | 0.5 | 0.05 | 20 | 8 | 6 | 17 | 29 | 12 |
| 8 | 0.75 | 0.09 | 21 | 10 | 8 | 21 | 31 | 13 |
| 10 | 1 | 0.14 | 26 | 11 | 10 | 25 | 37 | 17 |
| 11 | 1.5 | 0.17 | 29 | 13 | 11 | 27 | 43 | 18 |
| 13 | 2 | 0.29 | 33 | 16 | 13 | 33 | 48 | 21 |
| 16 | 3.2 | 0.63 | 43 | 19 | 16 | 40 | 61 | 27 |
| 19 | 4.7 | 1.02 | 51 | 22 | 19 | 48 | 72 | 32 |
| 22 | 6.5 | 1.53 | 58 | 25 | 22 | 54 | 84 | 37 |
| 25 | 8.5 | 2.41 | 68 | 29 | 25 | 60 | 95 | 43 |
| 29 | 9.5 | 3.09 | 74 | 32 | 29 | 67 | 108 | 46 |
| 32 | 12 | 4.31 | 83 | 35 | 32 | 76 | 119 | 52 |
| 35 | 13.5 | 6.01 | 92 | 38 | 35 | 84 | 133 | 57 |
| 38 | 17 | 8.03 | 98 | 44 | 38 | 92 | 146 | 60 |
| 44 | 25 | 13.79 | 127 | 51 | 44 | |||
