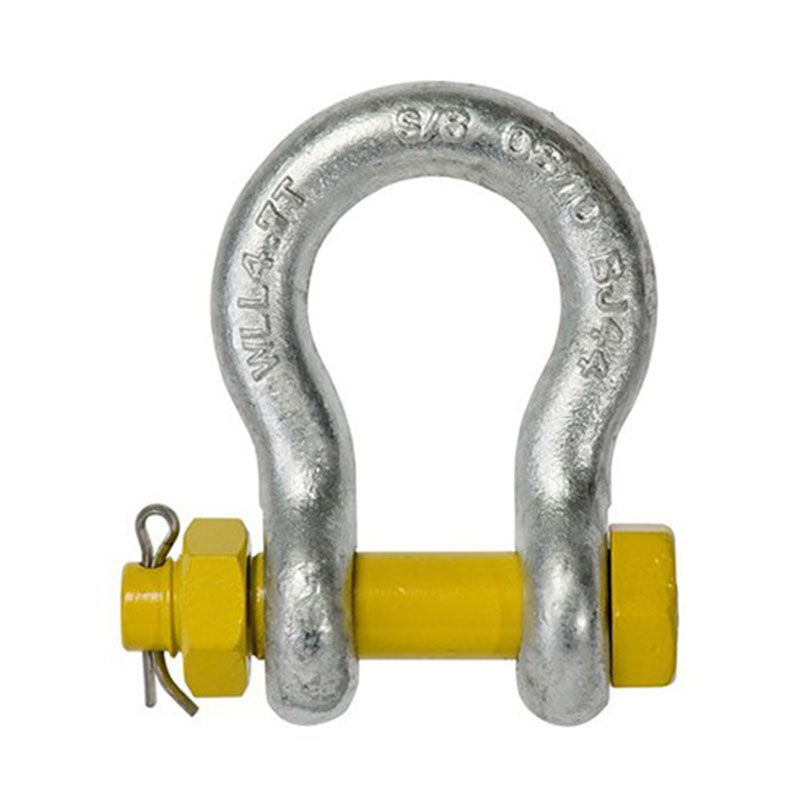

Grade S Bow Shackle are most commonly used for lifting applications, providing connections to Chain, Wire Rope and other rated fittings within the Marine, Agricultural, Mining and Engineering Industries. A bolt type shackle is a better choice in permanent or long-term applications, or if there's a risk of a load sliding on the shackle pin, causing it to rotate. The added safety measure from bolt/nut/cotter pin is the reason these shackles are also called safety anchor shackles.

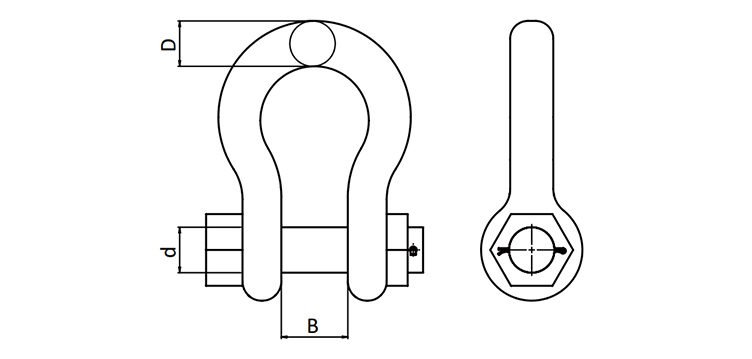

SIZE (mm) | WLL (ton) | D (mm) | d (mm) | B （mm) |
| 6 | 0.5 | 6 | 8 | 12 |
| 8 | 0.75 | 8 | 10 | 13 |
| 10 | 1 | 10 | 11 | 17 |
| 11 | 1.5 | 11 | 13 | 18 |
| 13 | 2 | 13 | 16 | 21 |
| 16 | 3.2 | 16 | 19 | 27 |
| 29 | 4.7 | 29 | 22 | 32 |
| 22 | 6.5 | 22 | 25 | 37 |
| 25 | 8.5 | 25 | 29 | 43 |
| 29 | 9.5 | 29 | 32 | 46 |
| 32 | 12 | 32 | 35 | 52 |
| 35 | 13.5 | 35 | 38 | 57 |
| 38 | 17 | 38 | 41 | 60 |
| 44 | 25 | 44 | 51 | 73 |
| 51 | 35 | 51 | 57 | 83 |
| 57 | 42.5 | 57 | 63 | 95 |
| 63 | 55 | 63 | 70 | 105 |
