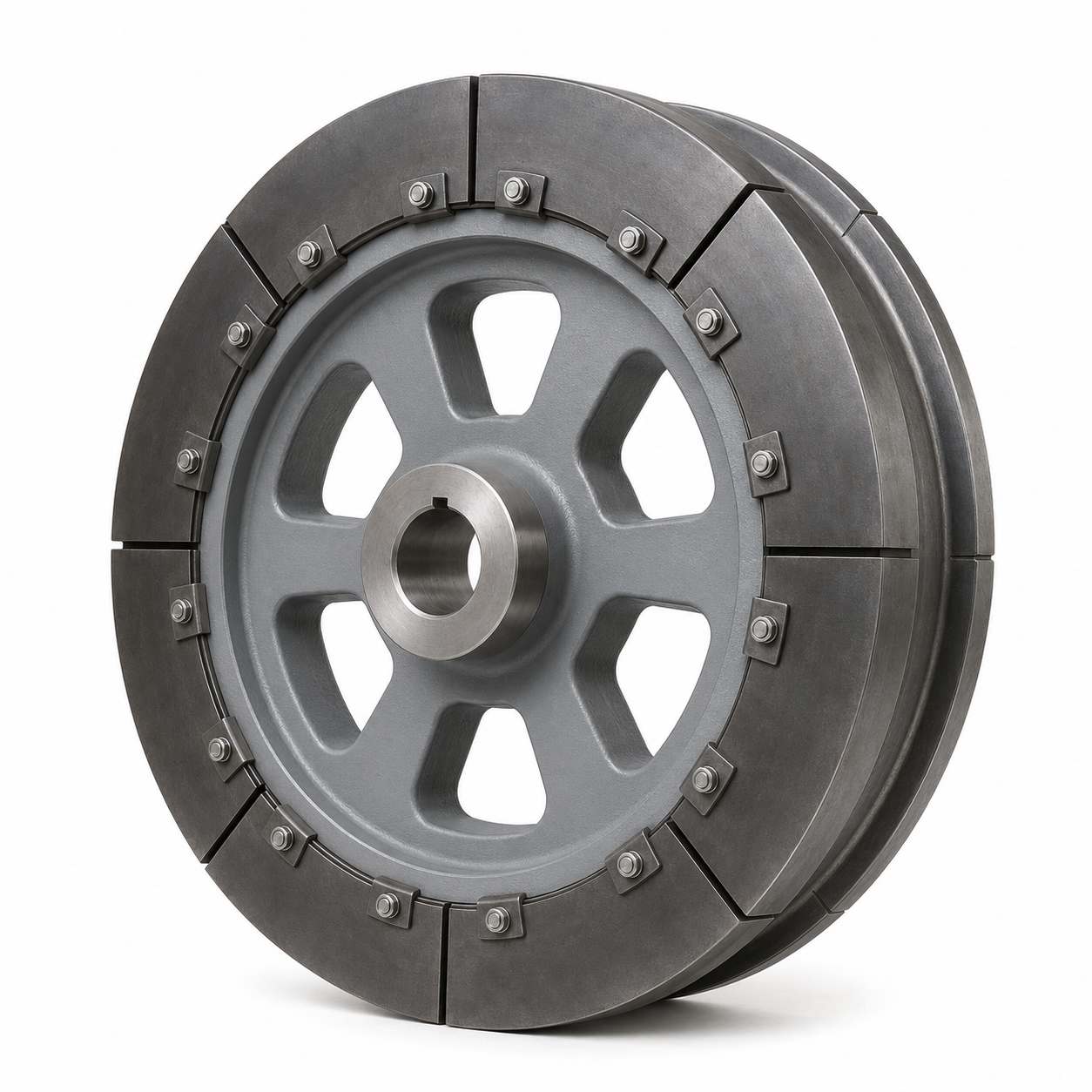

Segmented Plain Rim Wheels are designed for bucket elevators using DIN 764 or DIN 766 chains with DIN 5699 and DIN 745 shackles, or CICSA LH chains with ATS bucket attachments. They are suitable for rear-mounted buckets, while a rimless version is available for buckets with lateral attachments. The replaceable segments use special CrMo alloy steel with a minimum hardness of 40 HRC for high wear resistance. The welded steel hub is available as a standard Type A hub or a self-cleaning Type B hub with peripheral material discharge slots. The bore and keyway are machined according to customer requirements
Segmented Plain Rim Wheels are used in bucket elevators operating with DIN 764 and DIN 766 round steel chains and DIN 5699 or DIN 745 shackles. They can also work with CICSA LH chains and special ATS bucket attachments.
The standard wheel configuration is suitable for buckets with rear attachments. A version without rims is also available for buckets with lateral attachments.
The replaceable wheel segments are manufactured from special CrMo alloy steel and provide high wear resistance with a minimum hardness of 40 HRC. The steel hub uses welded construction and is available in two versions:
Type A: Standard hub.
Type B: Self-cleaning hub with peripheral slots for material discharge.
The bore and keyway are machined according to customer requirements.

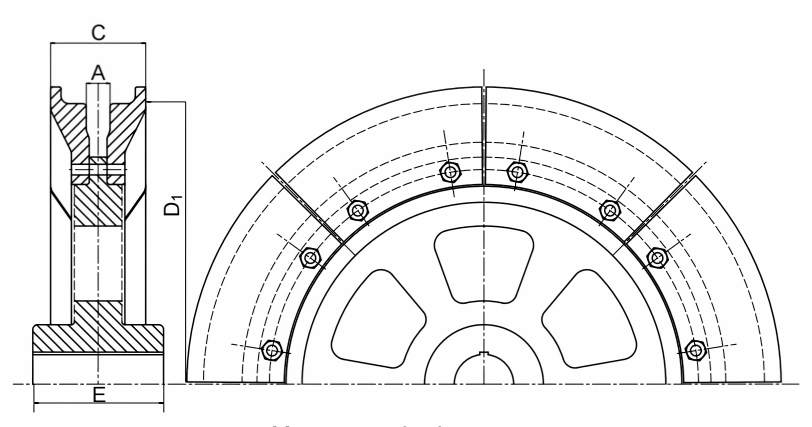

| Code | Nominal Diameter D (mm) | DIN 764 / DIN 766 Chain Diameter (mm) | CICSA LH Chain Diameter (mm) | No. of Segment Pairs | D1 (mm) | A (mm) | C (mm) | E (mm) | Mass, Segments Only (kg ≅) |
| 630/13 - 630/14 | 630 | 13 | 14 | 8 | 615 | 19 | 82 | 140 | 65 |
| 630/16 | 630 | 16 | – | 8 | 615 | 22 | 85 | 140 | 67 |
| 630/18 | 630 | 18 | – | 8 | 615 | 24 | 87 | 140 | 69 |
| 630/20 - 630/19 | 630 | 20 | 19 | 8 | 615 | 27 | 92 | 160 | 70 |
| 630/23 - 630/22 | 630 | 23 | 22 | 8 | 615 | 29 | 94 | 160 | 70 |
| 710/16 | 710 | 16 | 16 | 8 | 690 | 22 | 90 | 150 | 75 |
| 710/18 | 710 | 18 | – | 8 | 690 | 24 | 92 | 150 | 78 |
| 710/20 - 710/19 | 710 | 20 | 19 | 8 | 690 | 27 | 95 | 160 | 80 |
| 710/23 - 710/22 | 710 | 23 | 22 | 8 | 690 | 32 | 100 | 160 | 82 |
| 710/26 | 710 | 26 | – | 8 | 690 | 34 | 102 | 160 | 84 |
| 800/20 - 800/19 | 800 | 20 | 19 | 8 | 780 | 27 | 107 | 160 | 95 |
| 800/23 - 800/22 | 800 | 23 | 22 | 8 | 780 | 30 | 110 | 160 | 98 |
| 800/26 | 800 | 26 | – | 8 | 780 | 34 | 115 | 160 | 100 |
| 900/23 - 900/22 | 900 | 23 | 22 | 8 | 875 | 30 | 130 | 190 | 155 |
| 900/26 | 900 | 26 | 26 | 8 | 875 | 34 | 135 | 190 | 160 |
| 900/30 | 900 | 30 | – | 8 | 875 | 42 | 140 | 190 | 165 |
| 1000/23 | 1000 | 23 | – | 10 | 970 | 30 | 135 | 200 | 210 |
| 1000/26 | 1000 | 26 | 26 | 10 | 970 | 34 | 139 | 200 | 220 |
| 1000/30 | 1000 | 30 | 30 | 10 | 970 | 42 | 145 | 200 | 230 |
| 1100/23 | 1100 | 23 | – | 10 | 1045 | 30 | 150 | 200 | 255 |
| 1100/26 | 1100 | 26 | 26 | 10 | 1045 | 34 | 154 | 200 | 255 |
| 1100/30 | 1100 | 30 | 30 | 10 | 1045 | 42 | 159 | 200 | 260 |
| 1100/36 | 1100 | 36 | – | 10 | 1045 | 46 | 165 | 200 | 270 |
| 1250/30 - 1250/34 | 1250 | 30 | 30 / 34 | 12 | 1210 | 42 | 159 | 220 | 310 |
| 1250/36 | 1250 | 36 | – | 12 | 1210 | 46 | 165 | 220 | 320 |
| 1250/39 | 1250 | 39 | – | 12 | 1210 | 56 | 175 | 240 | 330 |
Name: Segmented Plain Rim Wheels
MOQ: 1 Piece
Package: To Be Confirmed
Manufacturing Standards:
Manufactured for DIN 764 and DIN 766 chains with DIN 5699 and DIN 745 shackles, or CICSA LH chains with ATS bucket attachments. Replaceable segments use special CrMo alloy steel with a minimum hardness of 40 HRC. The hub uses welded steel construction and is available as a standard Type A hub or a self-cleaning Type B hub with peripheral material discharge slots. The bore and keyway are machined according to customer requirements.
Testing Standards:
The CICSA product catalogue does not specify separate testing standards. Product dimensions, segment hardness, chain compatibility and machined bore requirements shall correspond to the selected catalogue model and confirmed customer requirements.
Application Standards:
Designed for bucket elevators using DIN 764 or DIN 766 chains with DIN 5699 and DIN 745 shackles. The wheels also support CICSA LH chains with special ATS bucket attachments. The standard configuration is suitable for rear-mounted buckets, while a version without rims is available for laterally mounted buckets.
Maintenance Standards:
The CrMo alloy steel segments are removable and replaceable. Replacement segments must correspond to the original wheel model, chain diameter, dimensions and number of segment pairs.
