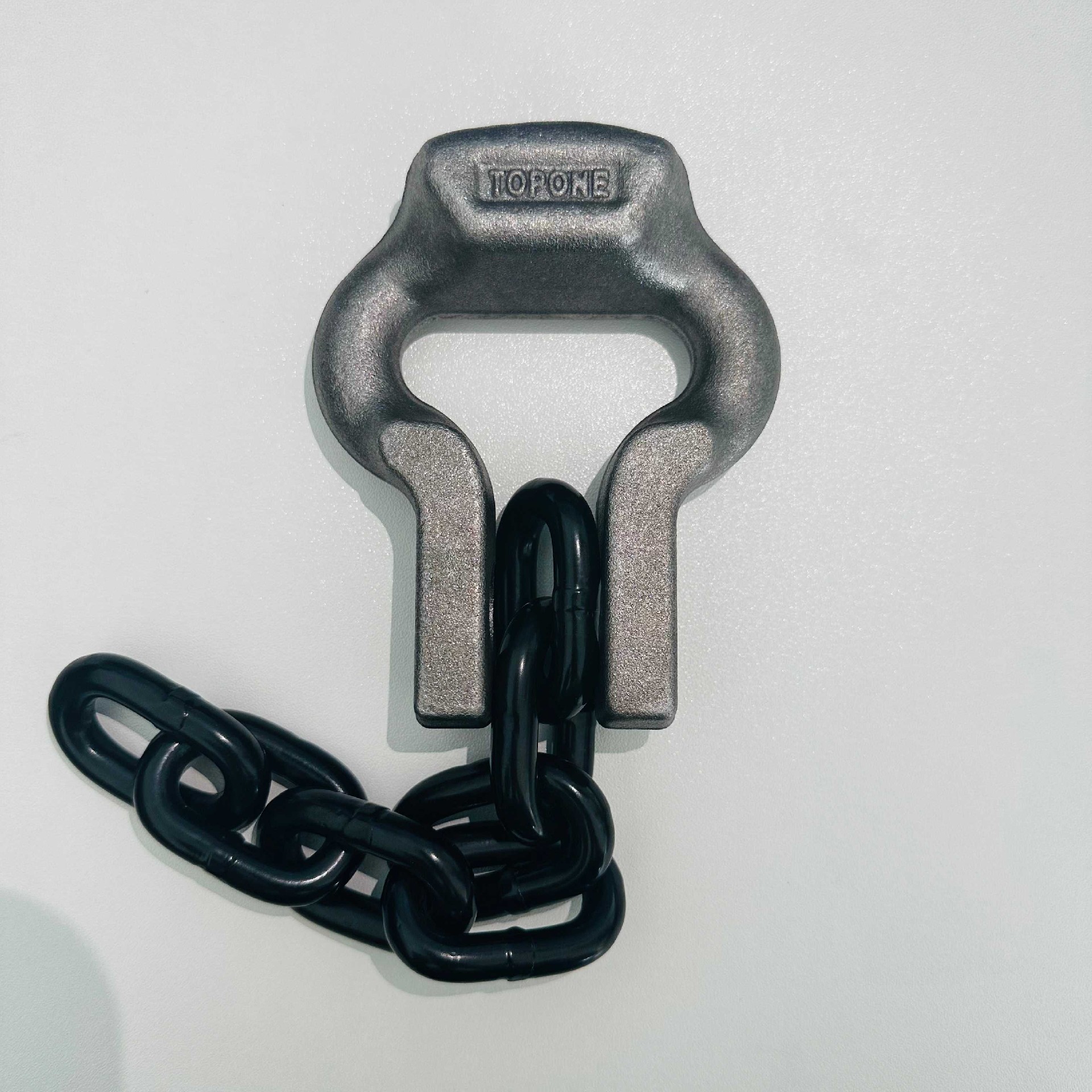

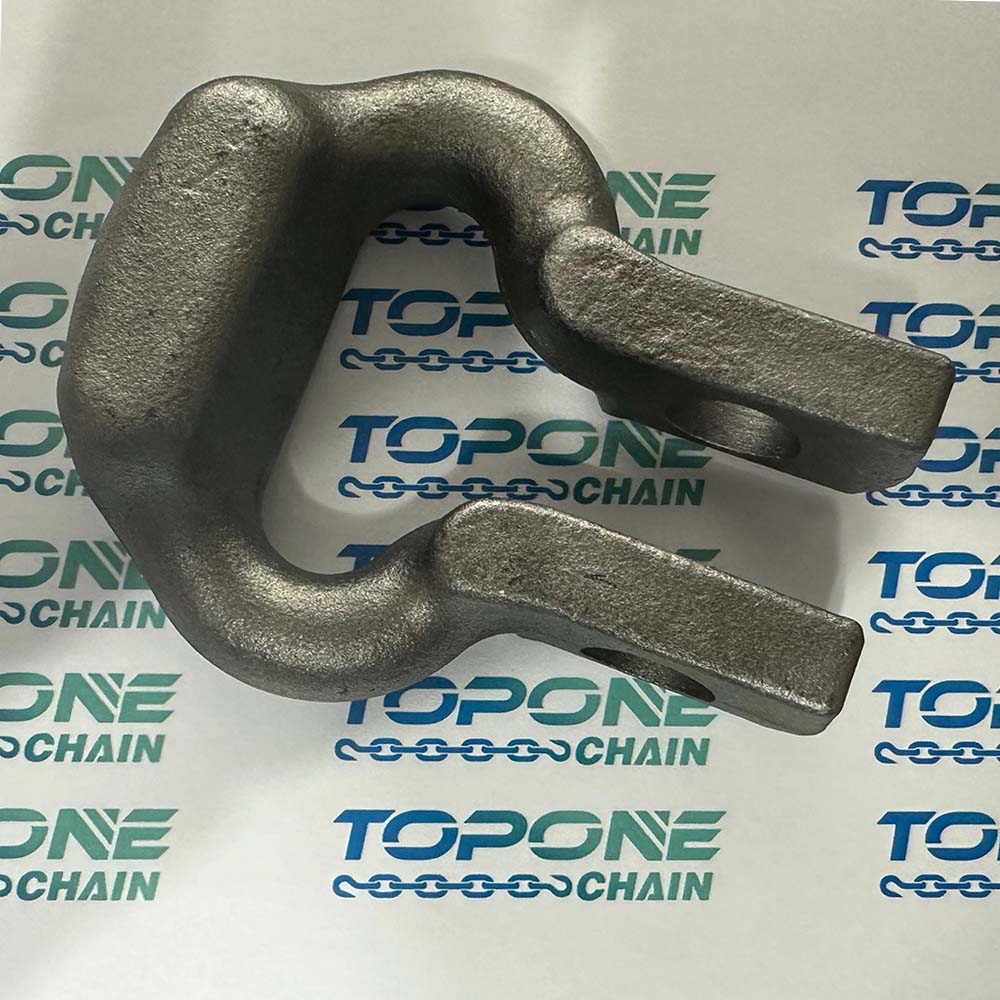

Outboard chain connectors DIN 22253
DIN22253
PN-G-46696
MT/T71-1997
Dimension | ||||||||||||
Size | a | t | c | b | e (+1/-2) | l1 | m (0/-1) | n (0/-1) | p (+1/0) | f (+1/-0.5) | g (+1/-1.5) | |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
14x50 | 15 (+0.7/-0.5) | 50 (+0.8/-0.3) | 79 ±1 | 17 +0.5 | 78 | 17.5 (+1/0) | 15 | 32 | 17 | 51 | 29 | |
18x64 | 19 (+1.0/-0.5) | 64 (+0.9/-0.3) | 101 ±1 | 21 +0.5 | 100 | 20.5 (+1/0) | 19 | 43 | 37 | 55 | 40 | |
19x64.5 | 20 (+1.0/-0.5) | 64.5 (+0.9/-0.3) | 105 ±1 | 21 +0.5 | 100 | 20.5 (+1/0) | 20 | 43 | 37 | 55 | 41 | |
22x86 | 23 (+1.0/-0.5) | 86 (+1.3/-0.4) | 132 ±2 | 25 +1.0 | 133 | 24.5 (+1/0) | 23 | 52 | 44 | 75 | 46 | |
24x86 | 25 (+1.0/-0.5) | 86 (+1.3/-0.4) | 136 ±2 | 25 +1.0 | 133 | 26 (+1/0) | 25 | 53 | 44 | 78 | 55 | |
26x92 | 27 (+1.0/-0.5) | 92 (+1.4/-0.5) | 146 ±2 | 28 +1.0 | 141 | 28 (+1.5/0) | 27 | 58 | 44 | 85 | 56 | |
30x108 | 32 (+1.0/-0.5) | 108 (+1.6/-0.5) | 172 ±2 | 31 +1.0 | 159 | 32 (+1.5/0) | 32 | 70 | 44 | 100 | 59 | |
Mechanical Properties | ||||||
Size | Test Force | Breaking Force | ||||
Grade B | Grade C | DIN 22253 | Grade B | Grade C | DIN 22253 | |
(mm) | (KN) | (KN) | (KN) | (KN) | (KN) | (KN) |
14x50 | 135 | 180 | 185 | 170 | 225 | 212 |
18x64 | 230 | 300 | 305 | 290 | 370 | 351 |
19x64.5 | 26 | 325 | 340 | 325 | 405 | 391 |
22x86 | / | 440 | 456 | / | 550 | 525 |
24x86 | 410 | 490 | 507 | 510 | 650 | 588 |
26x92 | / | / | 595 | / | / | 690 |
30x108 | / | / | 750 | / | / | 869 |
