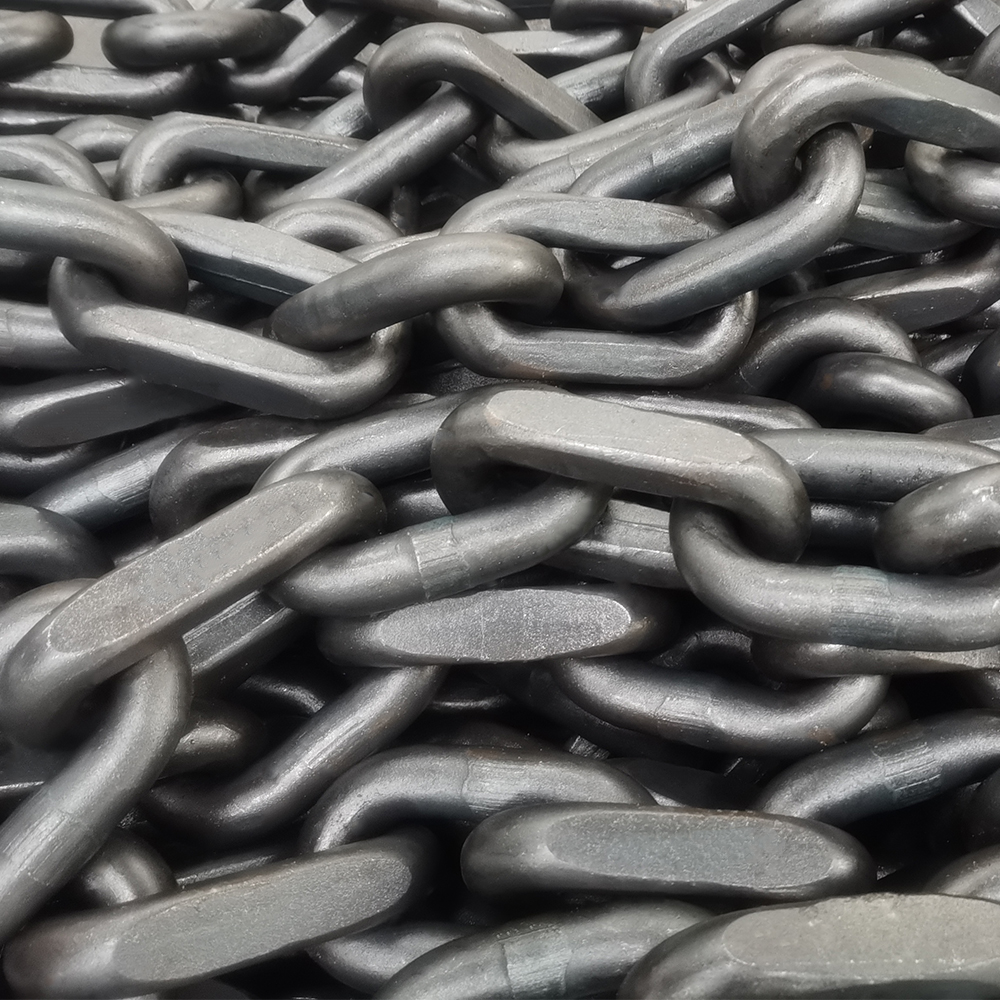

Flat chains have a smaller height(Outside width) than ordinary ring links. At the same time, it will not lose its working performance.
We mainly produce compact chains in compliance with DIN 2225 and MT/T 929 standards.
The height of the vertical ring of flat chains is lower, which makes the initially tensed chains to be suspended between two scraper blades. In such a way, wear of the plate chain way at the bottom of the middle slot can be effectively reduced, and the service life of the middle slot can be prolonged.

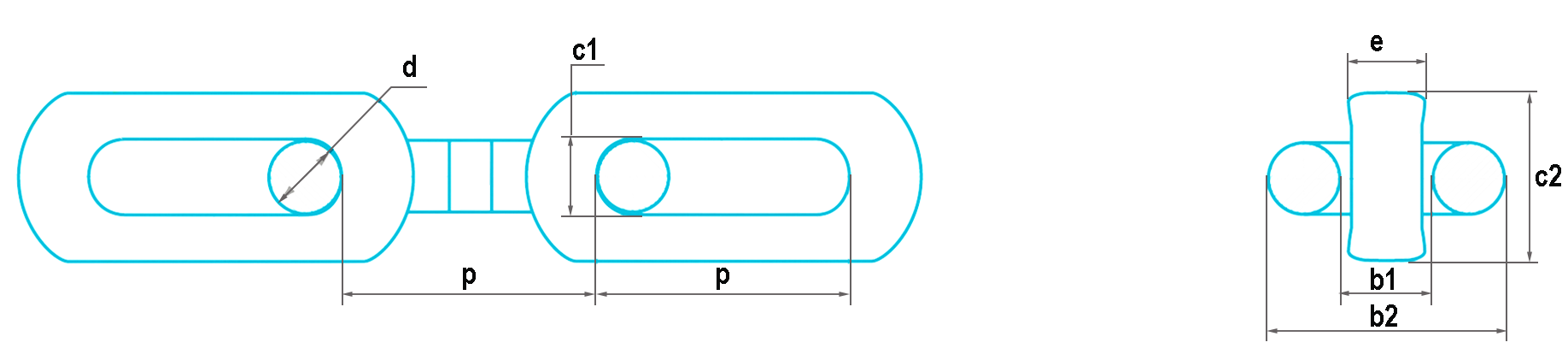

Dimension | ||||||||
Chain Size | Diameter | Pitch | Round Horizontal Link | Flat Vertical Link | e max | Weight | ||
d x p (mm) | d (mm) | P (mm) | b1 min, (mm) | b2 max. (mm) | c1 min. (mm) | c2 max. (mm) | (mm) | (kg) |
26x92 | 26 ±0.8 | 92 ±0.9 | 30.1 | 87 | 30 | 75 | 30.0 | 13.7 |
30x108 | 30 ±0.9 | 108 ±1.1 | 34.1 | 99 | 34 | 87 | 34.0 | 18.0 |
34x126 | 34 ±1.0 | 126 ±1.3 | 38.1 | 111 | 38 | 99 | 38.0 | 22.7 |
38x126 | 38 ±1.1 | 126 ±1.3 | 42.1 | 123 | 42 | 111 | 42.0 | 30.1 |
38x137 | 38 ±1.1 | 137 ±1.4 | 42.1 | 123 | 42 | 111 | 42.0 | 29.0 |
38x146 | 38 ±1.1 | 146 ±1.5 | 42.1 | 123 | 42 | 111 | 42.0 | 27.6 |
42x137 | 42 ±1.1 | 137 ±1.4 | 18.6 | 139 | 46 | 115 | 48.5 | 37.0 |
42x146 | 42 ±1.1 | 146 ±1.5 | 48.6 | 139 | 46 | 115 | 48.5 | 36.0 |
42x152 | 42 ±1.4 | 152 ±1.5 | 54 | 127 | 56.0 | 47.0 | ||
Mechanical Properties | |||||||
Chain Size d x p | Chain Grade | Measuring Force | Test Force | Breaking Force min. | Unit Elongation at test force max. | Unit Elongation at breaking force min. | Fatigue Resistance min. |
(mm) | (KN) | (KN) | (KN) | (%) | (%) | (cycles) | |
26x92
| C | 26 | 637 | 850 | 1.6 | 11 | 70.000 |
C++ | 26 | 700 | 970 | 1.6 | 14 | 70.000 | |
D | 26 | 740 | 1060 | 1.4 | 11 | 90.000 | |
30x108
| C | 35 | 848 | 1130 | 1.6 | 11 | 70.000 |
C++ | 35 | 950 | 1280 | 1.6 | 14 | 70.000 | |
D | 35 | 990 | 1400 | 1.4 | 11 | 90.000 | |
34x126 | C | 45 | 1090 | 1450 | 1.6 | 11 | 70.000 |
C++ | 45 | 1200 | 1650 | 1.6 | 14 | 70.000 | |
D | 45 | 1270 | 1800 | 1.4 | 11 | 90.000 | |
38x126 38x137 38x146 | C | 57 | 1360 | 1820 | 1.6 | 11 | 70.000 |
C++ | 57 | 1500 | 2040 | 1.6 | 14 | 70.000 | |
D | 57 | 1590 | 2270 | 1.4 | 11 | 90.000 | |
42x146 | C | 69 | 1660 | 2220 | 1.6 | 11 | 70.000 |
C++ | 69 | 1800 | 2500 | 1.6 | 14 | 70.000 | |
D | 69 | 1940 | 2770 | 1.4 | 11 | 90.000 | |
