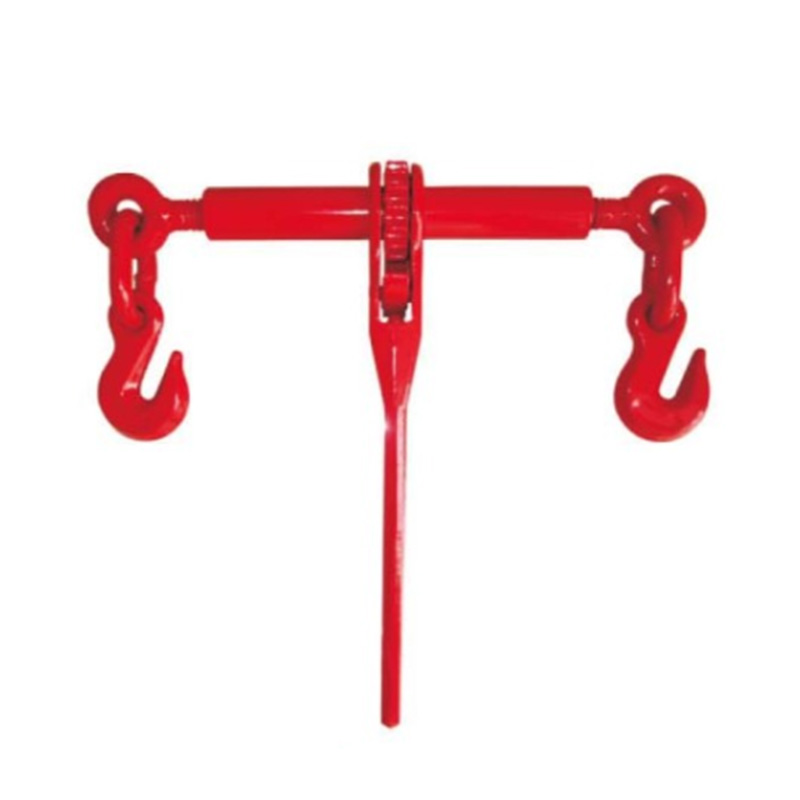

Binder is used for freight transportation, moving, transportation or storage of fixed action. They are safe, reliable, lightweight, easy to operate, and protect objects from destruction when locked. It is a kind of machine equipment for structural reinforcement of building template and reduction of wooden board, and the key has the effect of tightening.
Safety, reliable design for easy operation.
No requirement for locking of handle than lever type load binder.
High quality drop forged construction.
Heat treated for extra strength.
Each binder individually proof tested.

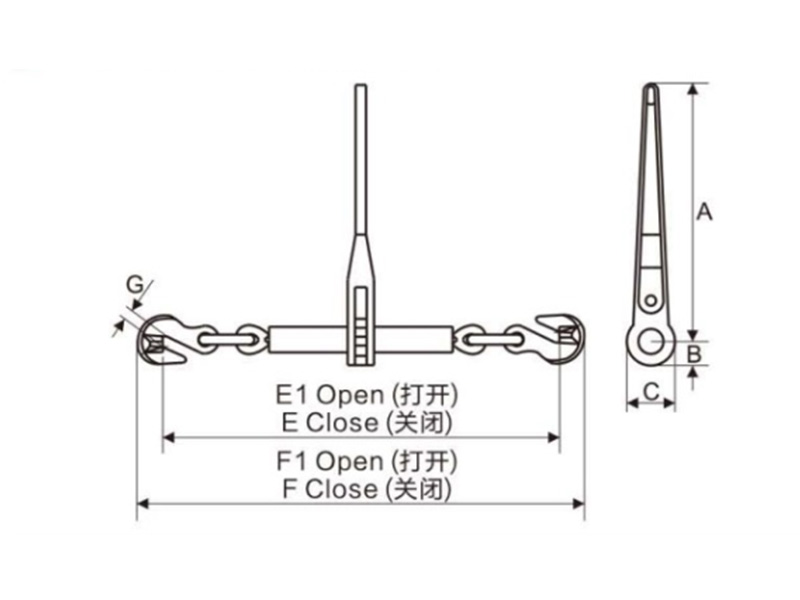

Chain Size (in) 链条尺寸 | W.L.L (lbs) 工作载荷 | Proof Load (lbs) 保证载荷 | Min. Ultimate Load (lbs) 最小极限载荷 | Weight (lbs) 重量 | Handle Length (in) 手柄长度 | Dimension (in) 主要尺寸 | |||||||
| A | B | C | E | E1 | F | F1 | G | ||||||
| 1/4-5/16 | 2600 | 5200 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 |
| 5/16-3/8 | 5400 | 1 0800 | 19000 | 10.50 | 13.42 | 13.92 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12..90 | 13.92 | 13.92 | 1.30 | 2.60 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.30 | 2.60 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
