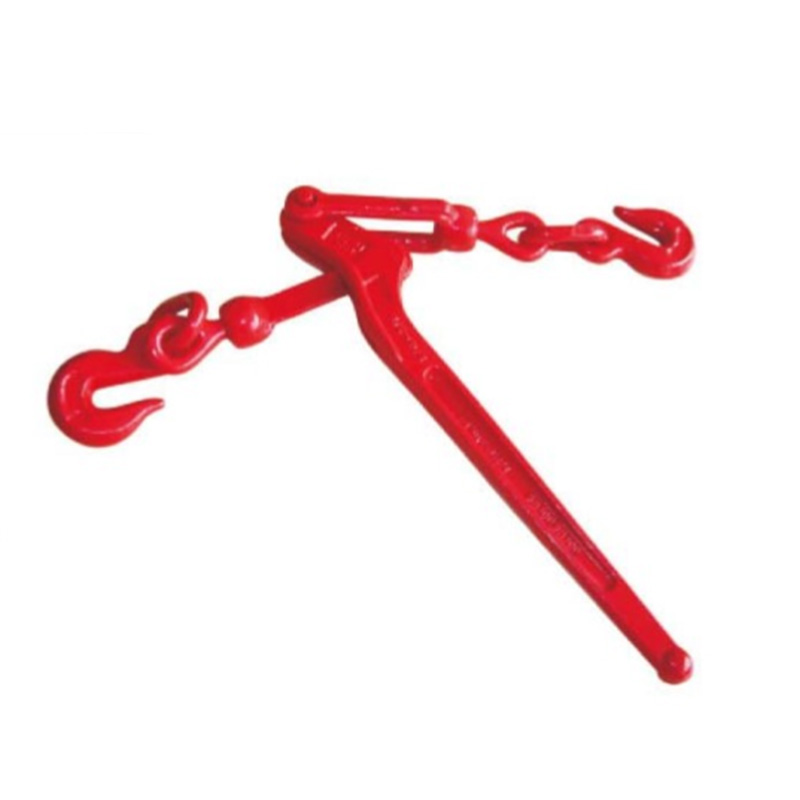

Lever Binder: the lever fulcrum adopts the overweight structure of tensile resistance; The binder root can be bent to unload heavy objects easily. The buckle on the hook and the tee kit can withstand axial tension. Products are widely used in port, electric power, iron and steel, shipbuilding, petrochemical, mining, railway, construction, metallurgical chemical industry, automobile manufacturing, plastic machinery, industrial control, highway, large transportation, pipeline auxiliary equipment, slope tunnel, well management and protection, Marine rescue, ocean engineering, airport construction, bridge, aviation, aerospace, venues and other important industries as well as infrastructure construction machinery The equipment.
Safety, durability designed for all heavy duty transport use
Drop forged steel, high strength
Free 360 degree swivel hooks for easier handling
Heat-treated for extra strength
Each binder individually proof tested
Drop forged or casting is available as requirement
Chain Size (in) 链条尺寸 | W.L.L. (Ibs) 工作载荷 | ProofLoad (lbs) 保证载荷 | Min.Ultimate Load (lbs) 最小极限载荷 | Weight (lbs) 重量 | Handle Length (in) 手柄长度 | Dimension (in) 主要尺寸 | ||||||

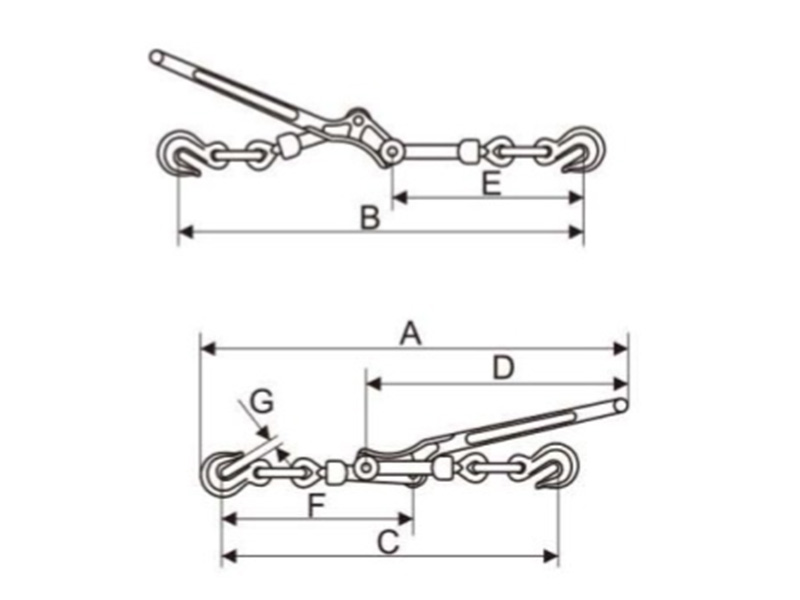

A | B | C | D | E | F | G | ||||||
1/4-5/16 | 2600 | 5200 | 7800 | 3.52 | 11.42 | 18.5 | 17.3 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 8.37 | 15.43 | 25.2 | 23.2 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
3/8-1/2 | 9200 | 18400 | 28000 | 12.11 | 17.24 | 28.5 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
1/2-5/8 | 11000 | 22000 | 44000 | 19.7 | 21.00 | 33.86 | 30.12 | 25.78 | 20.87 | 14.37 | 14.37 | 0.74 |
