According to EN12195-3 standard
Handle: forged.
Suitable forG100 chain
With G100 eye grab hook with safety pin
Not for lifting,only for lashing
Surface finish: Powder coating
Min. Breaking strength is 2 times ofthe WL.L

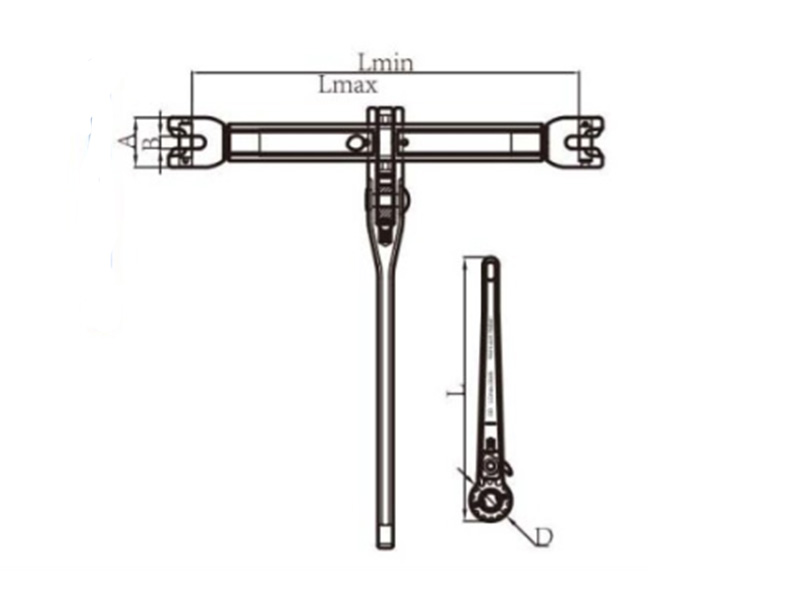

Size 规格 | L.C. (KN) 工作载荷 | B.L. (KN) 破断载荷 | Dimension (mm) 主要尺寸 | NW (kg/pcs) 净重 | |||||
A | B | L | D | Lmin | Lmax | ||||
8-10 | 50 | 1 00 | 40 | 10 | 383 | 56 | 312 | 472 | 3.5 |
10-10 | 80 | 1 60 | 49 | 13 | 390 | 65 | 337 | 497 | 5.5 |
13-10 | 134 | 268 | 64 | 16 | 392.5 | 69 | 347 | 507 | 7.1 |
