·MD1 Electric has two speeds: normal and low speed. At lower speeds, it can load and unload goods

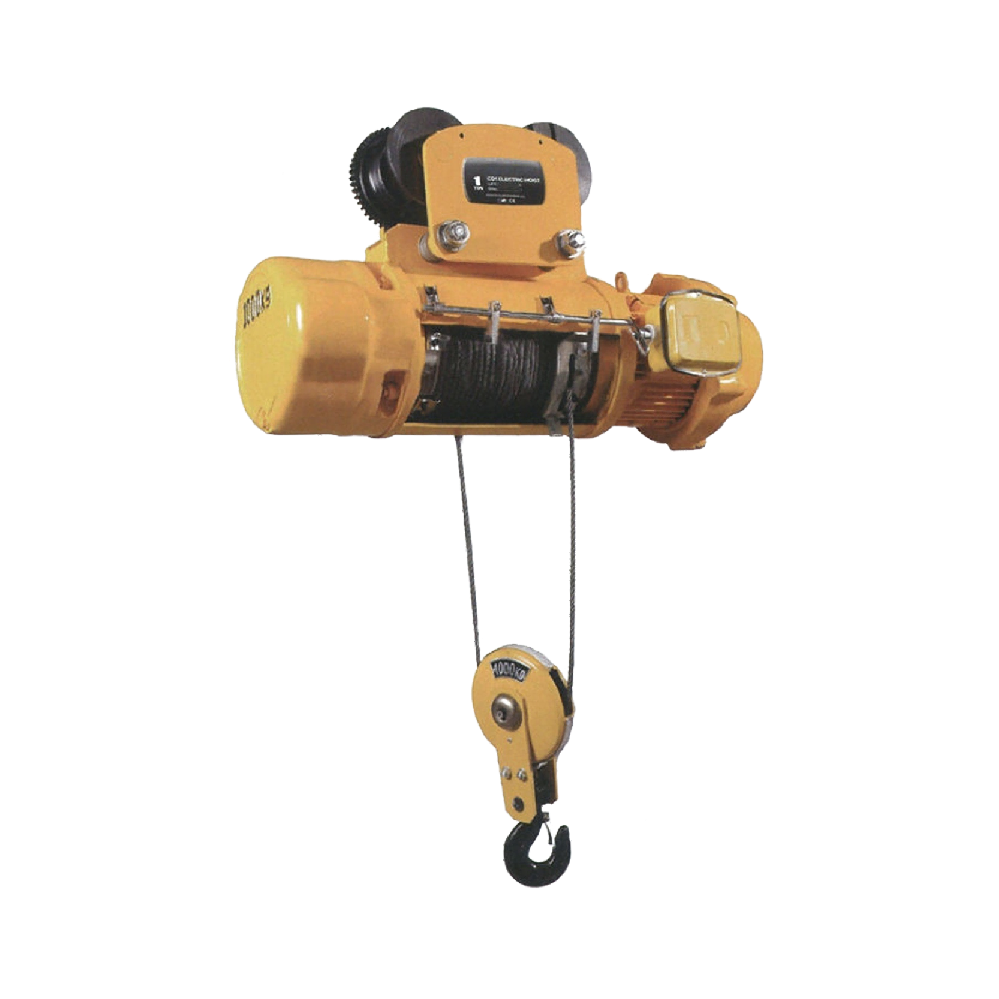

·MD1 electric hoist is a small lifting equipment, which can be used in single beam bridge crane, warehouse and bridge

·Reducer: it adopts three-stage fixed shaft helical gear transmission structure. The gear and gear shaf are made of heat-treated alloy steel

·The box and cover are made of hioh-qualty cast iron, which are tiantly assembled and well sealed. The reducer is a par of itsel, which is very convenient for loading and unloading

·Control box: it adopts a device that can cut off the main circuit in case of emergency and is equipped with up and down travel protection fire cut-off limiter. The safe operation of the electric hoist is ensured. Electrical components have long service life and reliable use

·Steel wire rope: gb1102-74 (6 x 37 + 1) hoisting steel wire rope is adopted, which ensures durability

·Conical motor: the hoisting motor adopts the conical rotor brake asynchronous motor with large ifting torque, without additional brake. The load continuity rate of the motor is 25%, the motor adopts class B or class F insulation, and the motor protection grade is IP44 / IP54

·Button switch: hand operated, light and convenient, divided into rope operation and cordless remote control.
