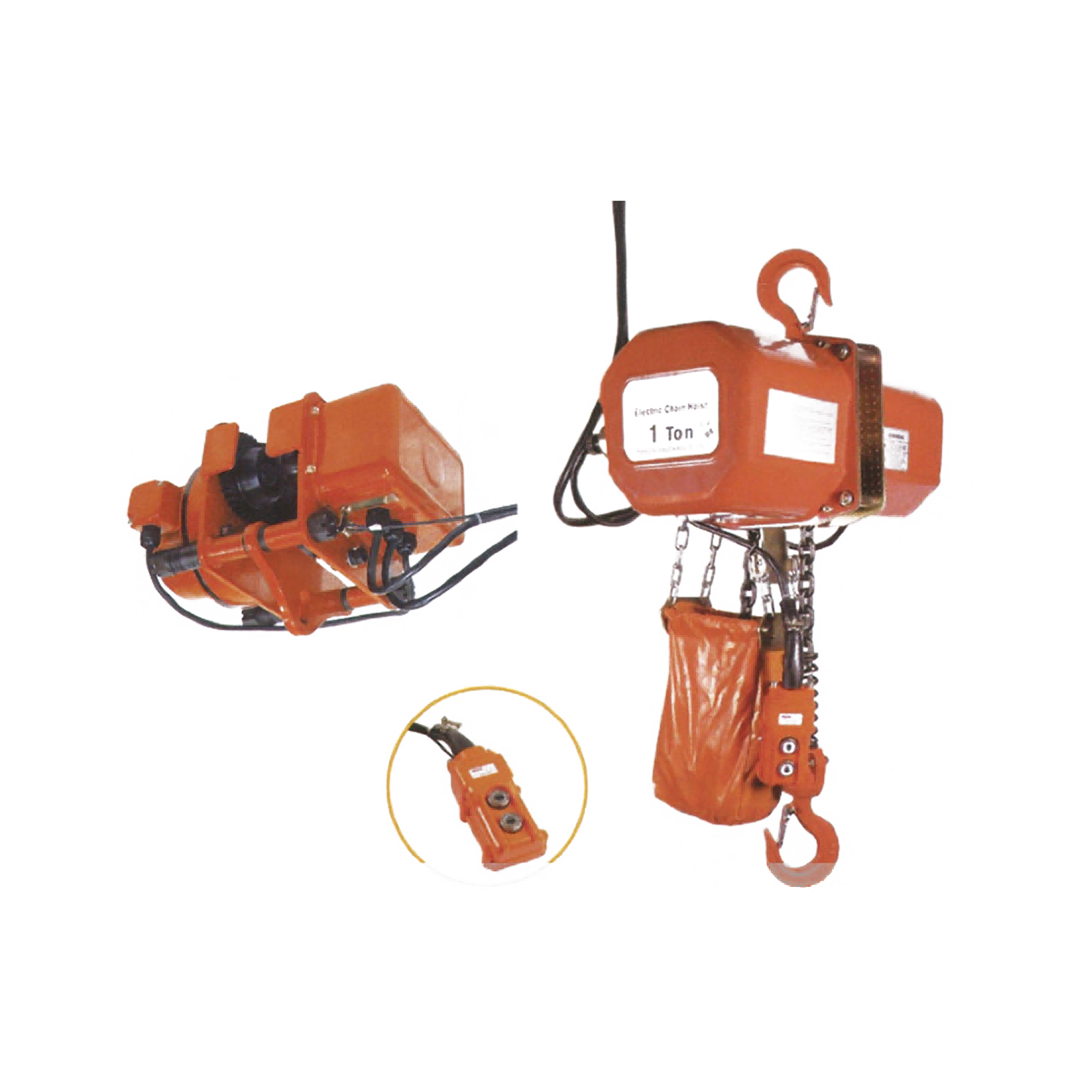

The Electric Hoist delivers industrial-grade lifting with advanced safety features. Its high-strength safety hook prevents breakage under heavy loads. The portable motor operates efficiently while preventing overheating. A 24V control button ensures user safety during operation. Built with dual Japanese braking technology, it offers extra reliability for critical lifts. The hoist includes a limit switch and load-limiting device to avoid overload risks. Choose single-phase or three-phase power supply for flexible installation. CE-certified and designed for durability, this electric hoist handles demanding environments with ease.
·High strength safety hook ensures no breakage
·Portable high efficiency motor with overheating protection.
·The control button adopts 24V voltage to ensure safe use.
·With limit switch
·With load limiting device
·Single phase and three-phase power supply can be used
·CE certified
·Japanese technology, double braking, safer and more reliable
| Model | VKL-0.5A | VKL-1.0A | VKL-2.0A | VKL-3.0A | VKL-3.0B | VKL-5.0B | |
| Capacity(t) | 0.5 | 1.0 | 2.0 | 3.0 | 3.0 | 5.0 | |
| Standard Lift(M) | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test load(t) | 6.25 | 12.5 | 25 | 37.5 | 37.5 | 65.5 | |
| Motor power(kw) | 0.8 | 1.6 | 1.6 | 1.6 | 3.0 | 3.0 | |
| No. of load chain fall lines | 1 | 1 | 2 | 3 | 2 | 3 | |
| Diameter of load chain(mm) | 7.1 | 7.1 | 7.1 | 7.1 | 9 | 9 | |
| Lifting speed(m/min) | 7 | 7 | 3.5 | 2.3 | 4 | 2.6 | |
| Net welght(kg) | 50 | 55 | 60 | 65 | 78 | 85 | |
| Dead weight per meter(kg) | 1.1 | 1.1 | 2.2 | 3.3 | 3.5 | 5.3 | |
