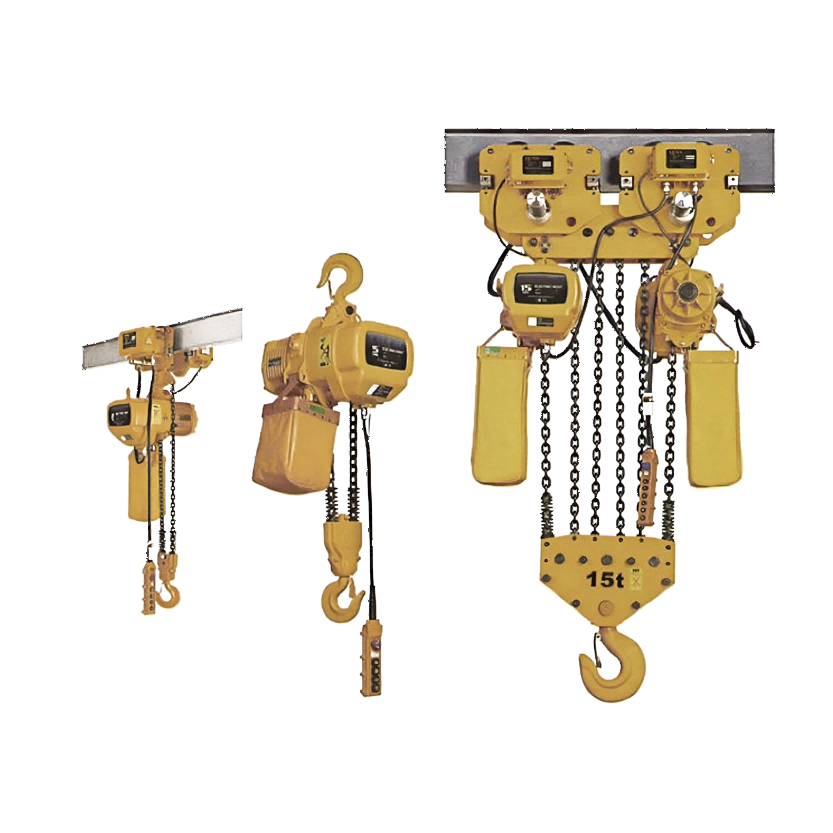

The Electric Hoist features a unique compact design that minimizes the space between the machine body and beam track. This structure maximizes vertical lifting efficiency, making it ideal for low - ceiling buildings, temporary worksites, or locations needing expanded operational space. Its robust build ensures reliable performance in confined environments while maintaining easy installation. Choose this hoist to enhance productivity in workshops, construction sites, or modular plants.
Shorten the distance between the machine body and the beam track it has a unique and best structure, which is suitable for use in lower buildings, especially in temporarily built plants or places where effective lifting space needs to be expanded.
| Model | HHBB-0.5A | HHBB-1.0A | HHBB-2.0A | HHBB-1.0B | HHBB-2.0B | HHBB-3.0B | HHBB-5.0B | |
| Capacity(t) | 0.5 | 1.0 | 2.0 | 1.0 | 2.0 | 3.0 | 5.0 | |
| Standard Lift(M) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test load(t) | 6.25 | 12.5 | 25 | 12.5 | 25 | 37.5 | 62.5 | |
| Motor power(kw) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 3.0 | 3 | |
| No. of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 2 | |
| Diameter of load chain(mm) | 6.3 | 7.1 | 10 | 6.3 | 7.1 | 10 | 11.2 | |
| Lifting speed(m/min) | 7.8 | 6.8 | 6.8 | 3.9 | 3.4 | 5.8 | 2.8 | |
| Net welght(kg) | 42 | 59 | 110 | 47 | 69 | 123 | 133 | |
| Dead weight per meter(kg) | 0.5 | 1.1 | 2.2 | 1.0 | 2.2 | 4.4 | 5.8 | |
