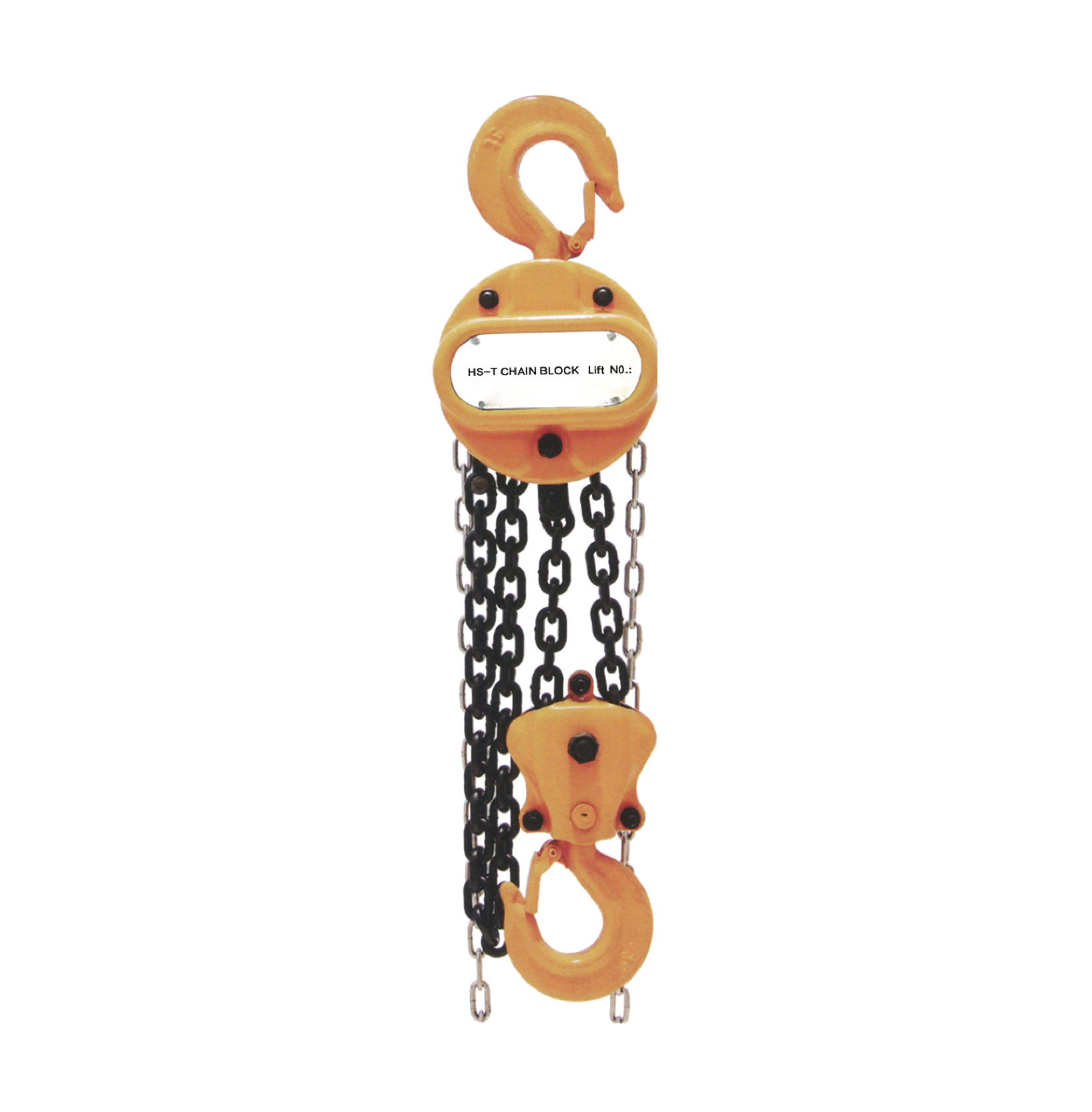

The chain block is a portable lifting device, which isconvenient for manual operation. Suitable for usein factories, mines, farms, buildings, agriculturalproduction and docks, docks and warehouses forinstalling machines, lifting goods, and loading andunloading goods. lts special advantage is that it canbe used in open places and places without powersupply.
·Safe and reliable, requiring less maintenance.
·High efficiency, small hand tension.
·Light weight and easy handling
·Small size and beautiful appearance.
·Long service life
| MODEL | HSZ-T1/2 | HSZ-T1 | HSZ-T1 1/2 | HSZ-T2 | HSZ-T3 | HSZ-T5 | HSZ-T10 | |
| CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | |
| Min.distance bettween hooks(mm) | 255 | 306 | 368 | 444 | 486 | 616 | 700 | |
| Chainpull to lift full load(n） | 221 | 304 | 343 | 314 | 646 | 383 | 392 | |
| No. of load chain fall lines(mm) | 1 | 1 | 1 | 2 | 2 | 2 | 4 | |
| Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 5 | 10 | 10 | |
| Net weight(kg) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | |
| Gross weight(kg) | 10 | 13 | 20 | 17 | 28 | 45 | 83 | |
| Packing(L*W*H)(cm) | 28*21*17 | 30*24*18 | 34*29*20 | 35*25*19 | 38*30*20 | 45*35*24 | 70*45*75 | |
