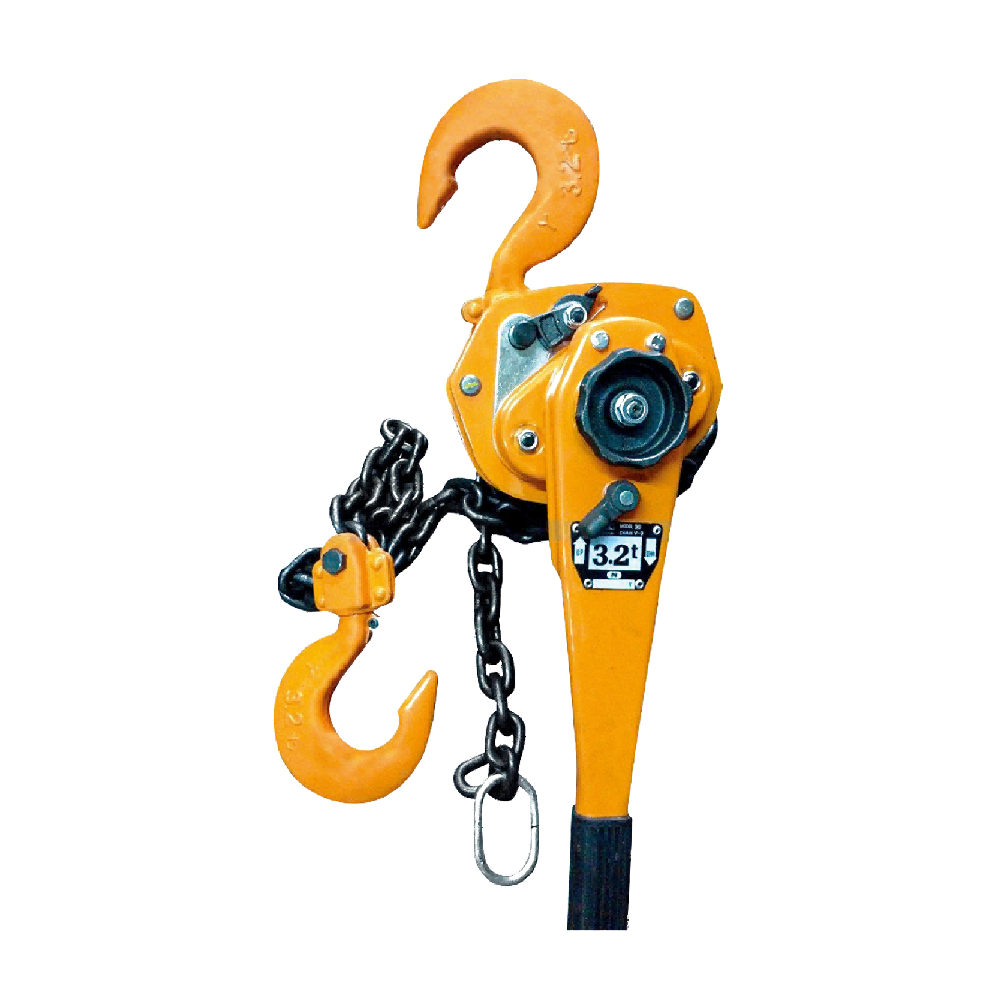

The HSH-VL Lever Block Chain Hoist combines lightweight design with robust construction. It uses high-strength alloy chains and hooks for reliable lifting. The 360-degree rotary handle operates smoothly in tight spaces, while the Weston double-card automatic brake ensures safety. Its powder-coated finish resists wear and extends durability. The rubber anti-slip handle provides a firm grip during operation. Choose from multiple capacities for versatile tasks. Contact us to customize your hoist for industrial or construction needs.
·Light weight and strong construction
·High strength alloy chain and hook
·Minimum head, multi-function operation
·The 360 degree rotary hande is easy to operate in a ·narrow space
Powder paint appearance, wear resistance, durability
·Weston double card automatic brake provides better protection
·Rubber anti slip handle for safe operation
| Model | VL-0.5T | VL-0.75T | VL-1.5T | VL-3T | VL-6T | VL-9T | |
| Capacity(t) | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standart lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running teat losd(t) | 0.75 | 1.125 | 2.25 | 4.5 | 9 | 13.5 | |
| No. of falls of load chain | 1 | 1 | 1 | 1 | 2 | 3 | |
| Load chain diameter(mm) | 5 | 6.3 | 7.1 | 9 | 9 | 9 | |
| Dimension(mm) | A | 102 | 155 | 170 | 198 | 198 | 198 |
| B | 80 | 88 | 110 | 120 | 120 | 120 | |
| C | 95 | 135 | 162 | 211 | 254 | 319 | |
| Net weight(kg) | 3.5 | 6.6 | 11 | 17 | 27.5 | 47 | |
| Packing(L*W*H)(CM) | 37*14*17 | 37*14*17 | 52*14*18 | 55*16*21 | 55*16*21 | 55*16*21 | |
The working process of lever hoists are quite simple with its handle being attached to a block which has an internal ratchet and gear mechanism. They work by cranking the lever up and down to power these ratchets. To facilitate the easy moving of the load up and down, the direction of the internal gear is switched. The switching of the internal gear is an easy process. The hook at the end of the lever block is used to attach it to the loads as it provides a secure support. Lever blocks can be easily customized as per customer requirements.
