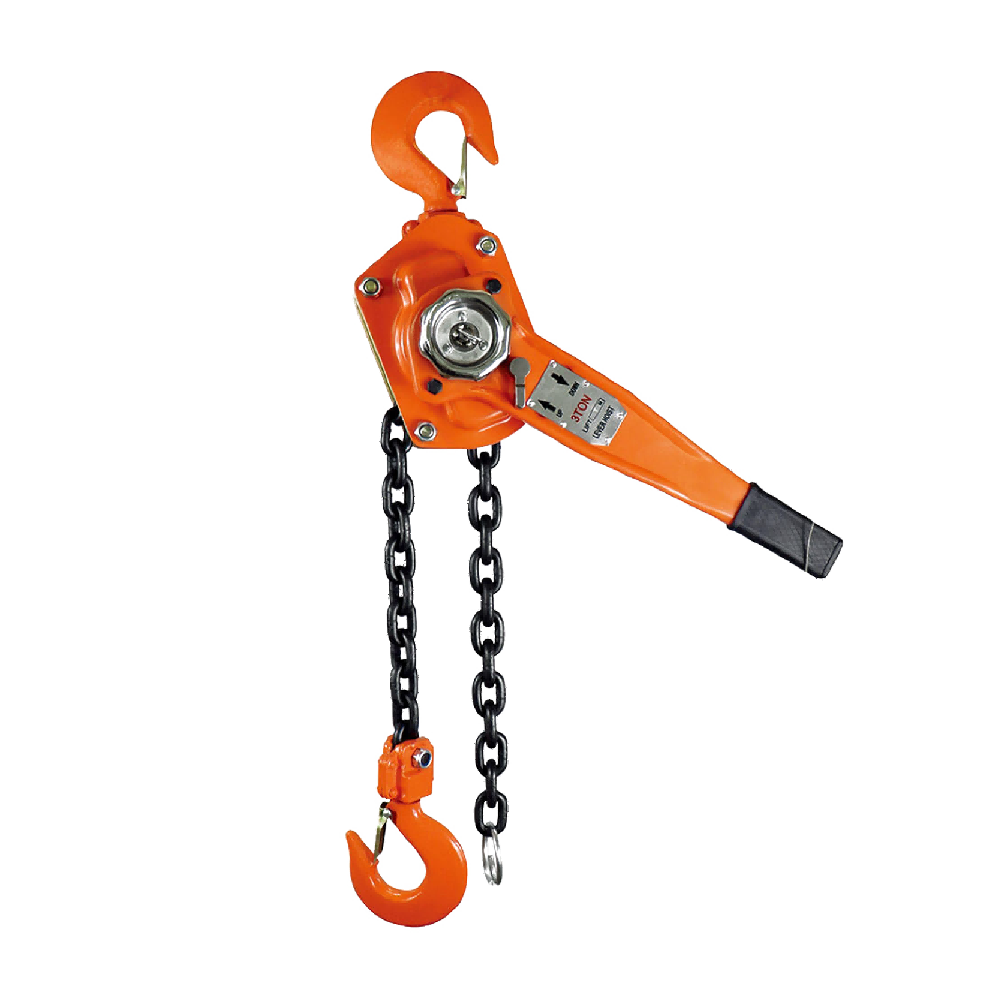

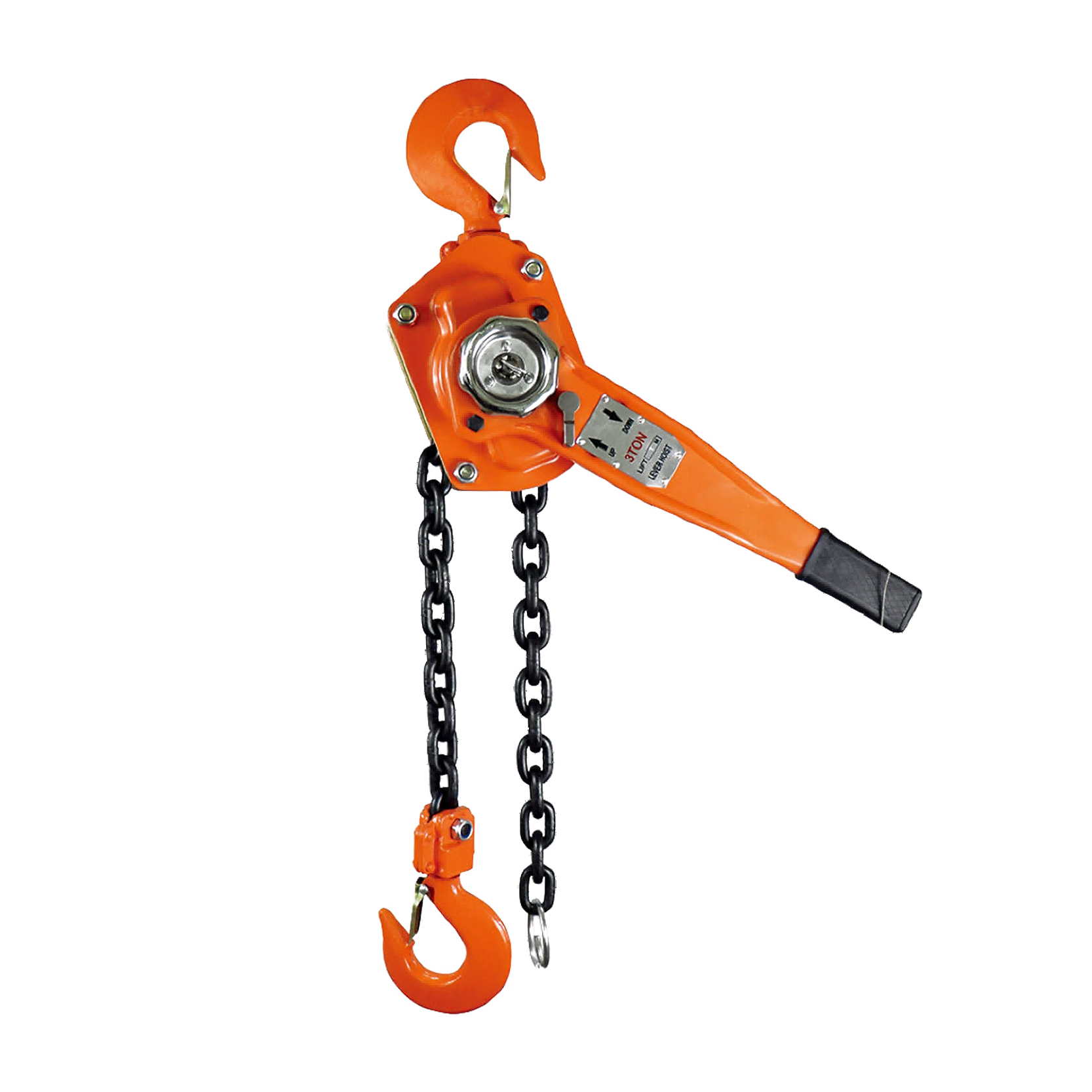

The HSH-VA Lever Block Chain Hoist delivers reliable heavy lifting with advanced safety features. Its torque control mechanism ensures precise load management. The heat-treated hook resists overloads for safer lifting. Shockproof gear and brake housings block dust and rain damage. A rubber anti-slip handle improves grip during operation. The hoist uses extraordinary braking force and easy adjustments. Anti-rust-treated chains withstand harsh environments. A unique brake design minimizes wear. The chain locating pin protects the machine head. A stable device prevents chain winding during hoisting. Choose HSH-VA for durable, rust-proof lifting solutions.
·Torque control mechanism
·The heat treated hook can ensure safety even if it is overloaded
·The shockproof gear housing and brake housing play the role of dust and rain prevention
·Rubber anti slip handle for safe operation
·Extraordinary braking force, easy to adjust, the best anti rust treatment
·The brake mechanism adopts a special design to avoid wear
·The chain locating pin well protects the machine head
·Rust proof chain with special surface treatment is used for heavy lifting
·Stable device to prevent chain winding during hoisting
| Model | VA-0.5T | VA-0.75T | VA-1T | VA-1.5T | VA-2T | VA-3T | VA-6T | |
| Capacity(t) | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 | |
| Standart lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running teat losd(t) | 0.75 | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 9 | |
| No. of falls of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |
| Load chain diameter(mm) | 5 | 6 | 6 | 8 | 8 | 10 | 10 | |
| Dimension(mm) | A | 102 | 148 | 148 | 176 | 176 | 195 | 195 |
| B | 80 | 87.5 | 87.5 | 102 | 102 | 109 | 109 | |
| C | 95 | 135 | 135 | 157 | 57 | 210 | 253 | |
| Net weight(kg) | 3.5 | 7 | 7.5 | 11 | 12 | 19 | 32 | |
| Packing(L*W*H)(CM) | 34*14*17 | 37*14*17 | 37*14*17 | 52*14*18 | 24*14*18 | 55*16*21 | 55*16*21 | |
The working process of lever hoists are quite simple with its handle being attached to a block which has an internal ratchet and gear mechanism. They work by cranking the lever up and down to power these ratchets. To facilitate the easy moving of the load up and down, the direction of the internal gear is switched. The switching of the internal gear is an easy process. The hook at the end of the lever block is used to attach it to the loads as it provides a secure support. Lever blocks can be easily customized as per customer requirements.
