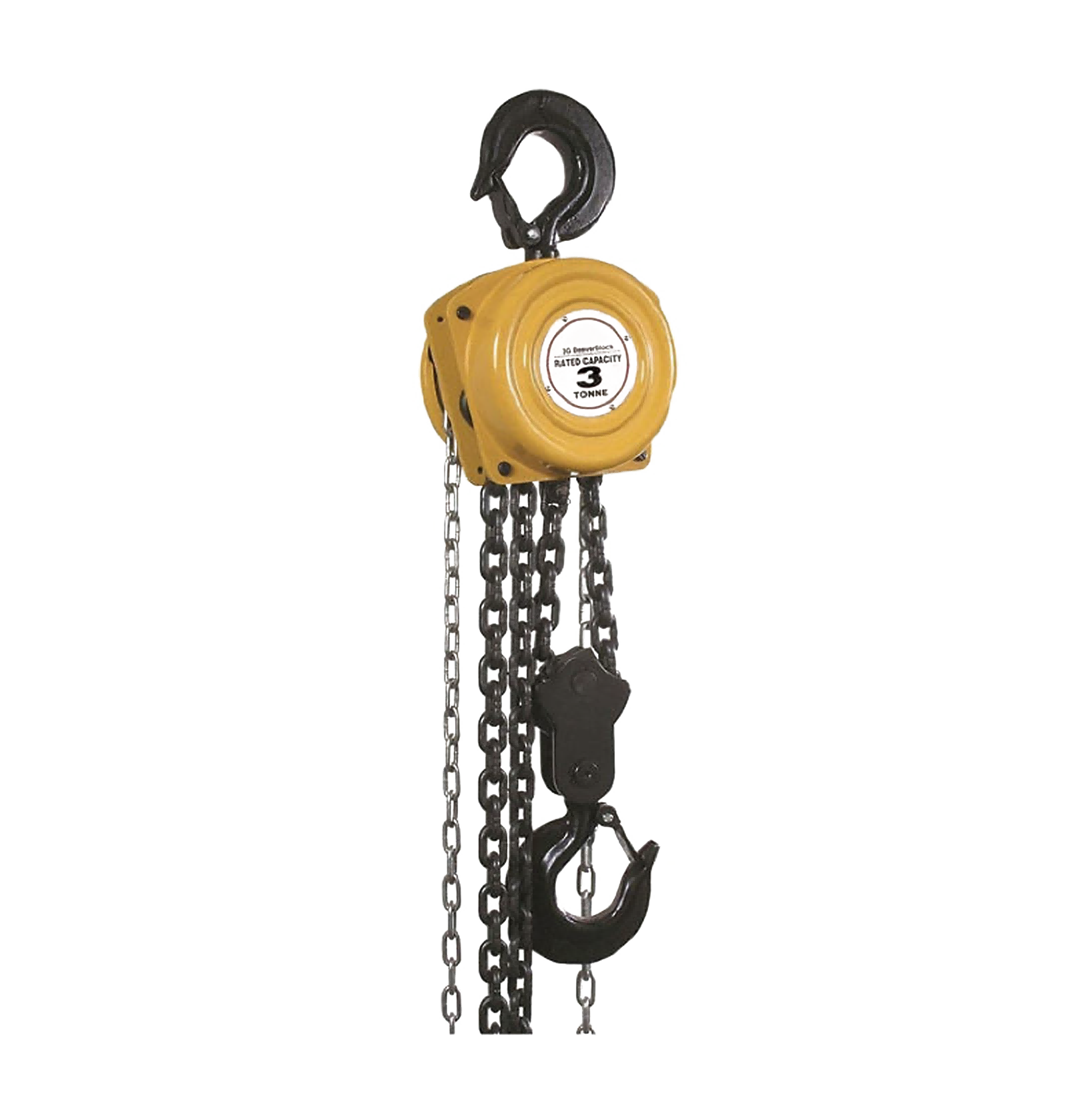

The HSZ-ORM Hand Chain Hoist is a quality lifting equipment. It is available in the load of 0.25ton to 10ton. Its heavy-duty and compact construction is on a par with the international standard. It is fitted with a reliable brake disc, high-grade standard alloy steel chain, and galvanized hand zipper. Its hook, by undergoing the process of drop forging and heat treatment, possesses high bearing load and a long life of service. It is available in different models in the different capacities, lifting height, and other specifications to meet different needs. Contact us to choose the one that suits your needs the best.
·The load range is from 0.25ton to 10ton
·The heavy-duty and compact design meets all relevant world standards
·Reliable brake disc, standard high-grade alloy steel chain and galvanized hand zipper
·After drop forging and professional heat treatment, the hook has high load strength and long service life
| MODEL | ORM-250KG | ORM-500KG | ORM-1000KG | ORM-2000KG | ORM-3000KG | ORM-5000KG | ORM-10000KG | |
| CAPACITY(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Standard lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test load(t) | 0.375 | 0.75 | 1.5 | 3 | 4.5 | 7.5 | 15 | |

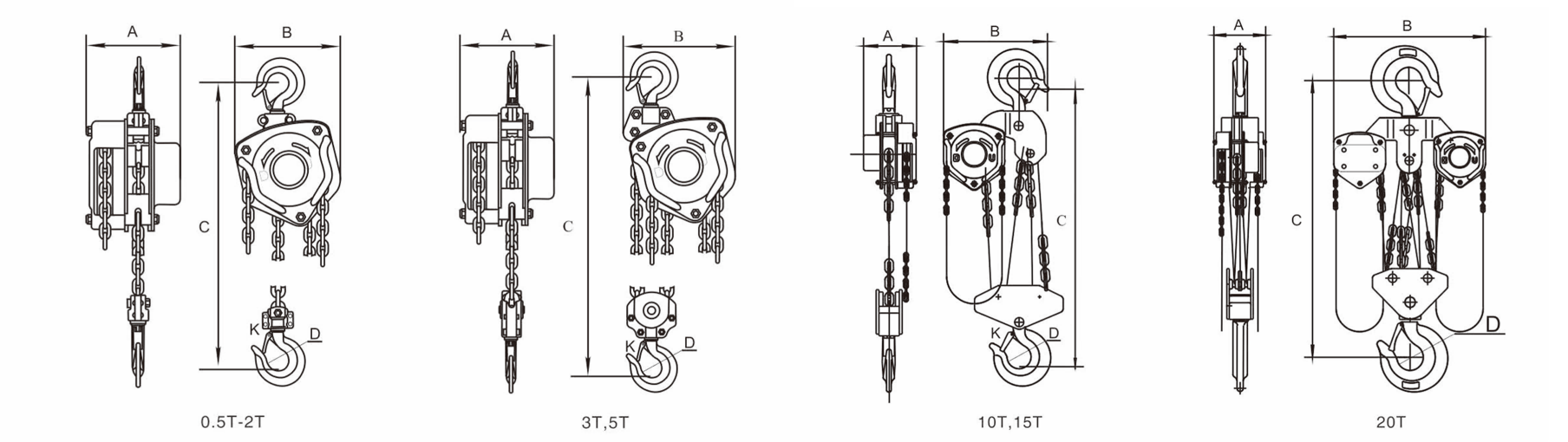

| Min.distance bettween hooks(mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 | |
| Chainpull to lift full load(n） | 25 | 33 | 34 | 34 | 35 | 39 | 41 | |
| No. of load chain fall lines(mm) | 1 | 1 | 1 | 1 | 2 | 2 | 4 | |
| Diameter of load chain(mm) | 4*12 | 5*15 | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 | |
| Net weight(kg) | 4.2 | 5.7 | 10.8 | 17.1 | 26.2 | 40 | 73.2 | |
| Gross weight(kg) | 5 | 6.5 | 12.5 | 19 | 28 | 43 | 76 | |
| Packing(L*W*H)(cm) | 18*12*10 | 19*16*11 | 26*17*18 | 30*17*22 | 35*17*26 | 44*32*17 | 62*50*26 | |
