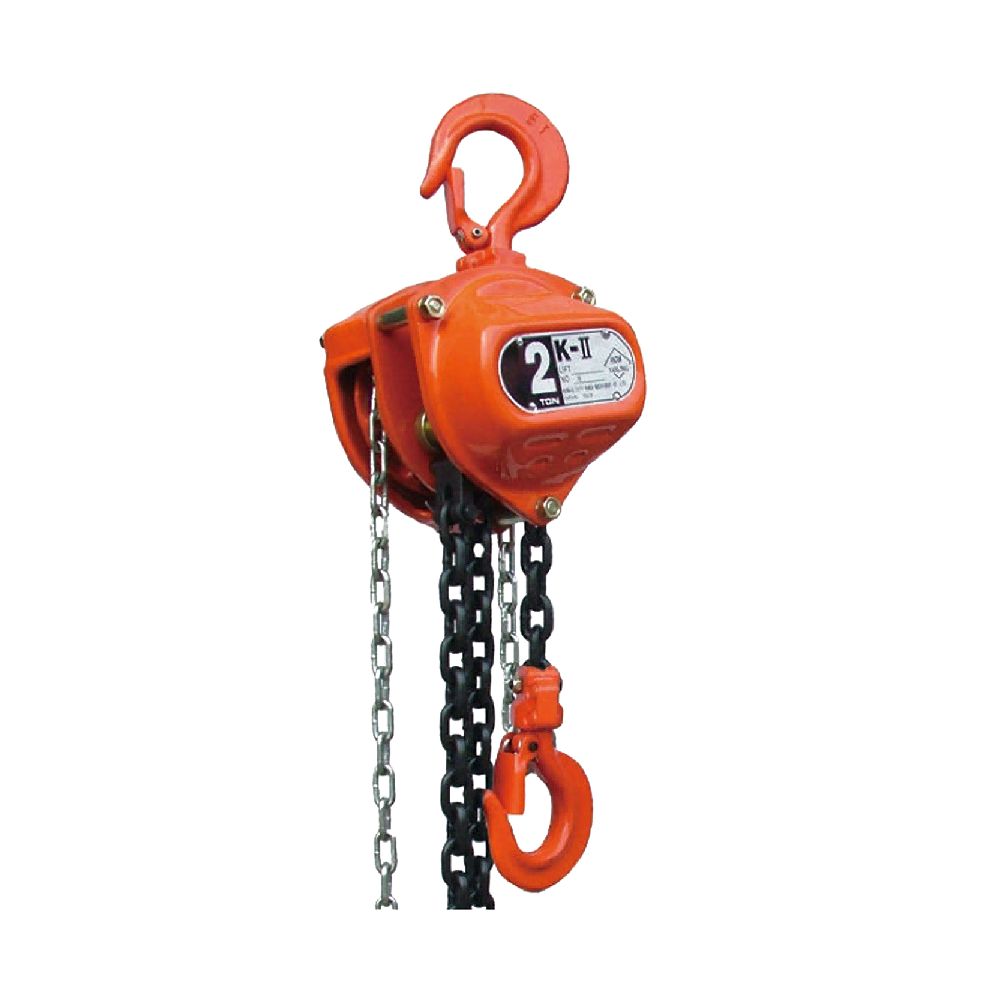

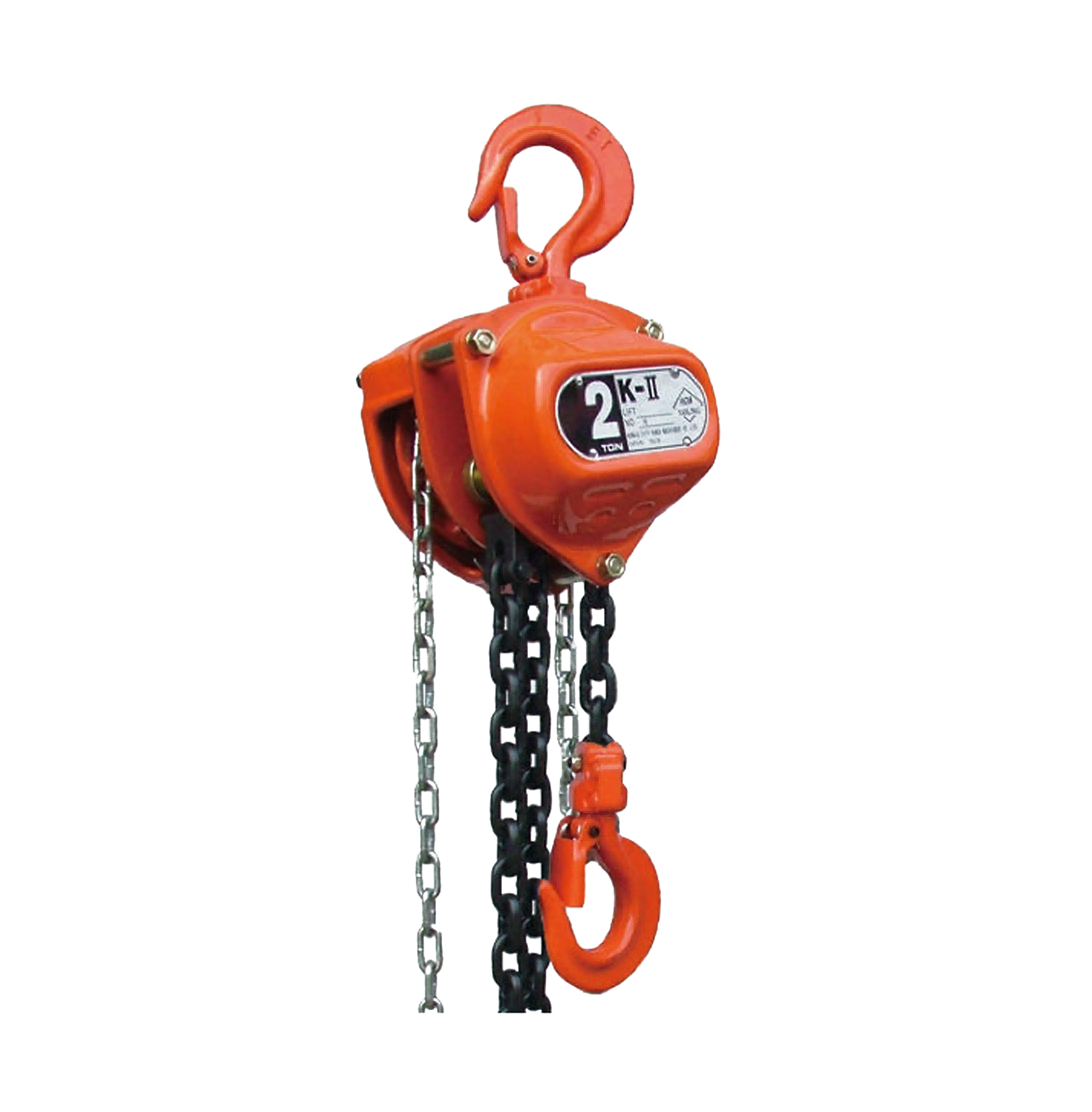

HSZ-KⅡ Hand Chain Hoist is a high-strength lifting equipment. It helps you exert a small force while lifting heavy loads. It incorporates high-quality alloy chains and galvanized standard bracelets. The hook, having undergone professional heat treatment after being drop forged, resists high loads and lasts a longer time. It provides extra load limiters. It ranges in load from 0.5tons to 20tons, and heavy 30-ton and 50-ton machines are also available. It comprises different models having different capacities, standard lifts, and different specifications to meet different requirements.
·Additional load limiters are available
·Use small force to lift large weight
·High grade alloy steel chain and standard galvanized Bracelet
·After drop forging and professional heat treatment, the hook has high load strength and long service life
·The load range is from 0.5tons to 20tons, and there are 30tons and 50tons of heavy machinery
| MODEL | HZS-KⅡ1/2 | HZS-KⅡ1 | HZS-KⅡ1 1/2 | HZS-KⅡ2 | HZS-KⅡ3 | HZS-KⅡ5 | HZS-KⅡ10 | |
| CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | |
| Min.distance bettween hooks(mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 | |
| Chainpull to lift full load(n） | 25 | 33 | 34 | 34 | 35 | 39 | 41 | |
| No. of load chain fall lines(mm) | 1 | 1 | 1 | 2 | 2 | 2 | 4 | |
| Diameter of load chain(mm) | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | |
| Net weight(kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 | |
| Gross weight(kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 | |
| Packing(L*W*H)(cm) | 26*16*20 | 26*16*20 | 27*18*24 | 28*18*24 | 28*19*26 | 39*22*30 | 48*46*26 | |
