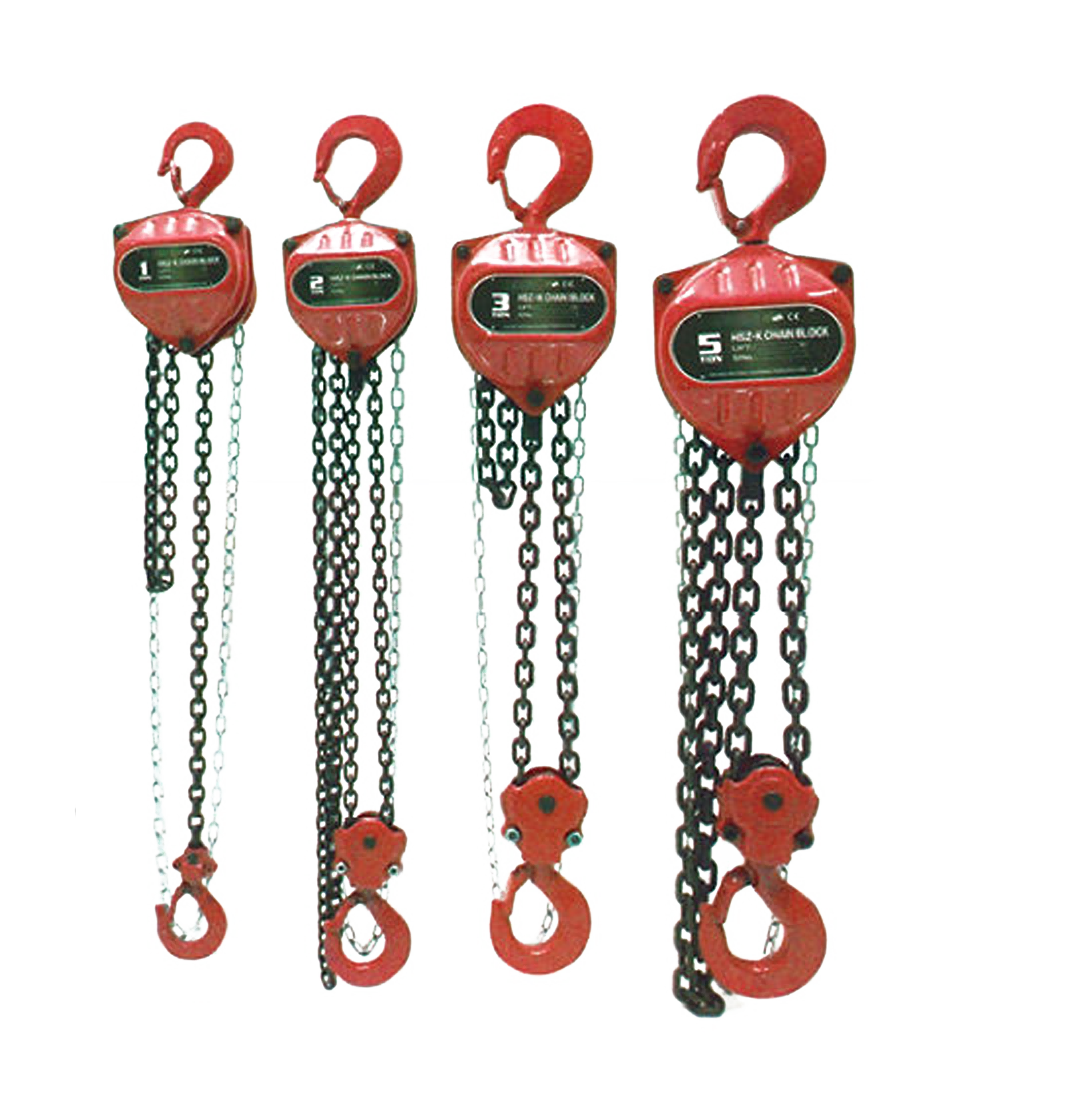

The HSZ - K Hand Chain Hoist has a capacity of 0.5T to 20t. It is compact but heavy-duty in design and conforms to all applicable world standards. It comes equipped with a dependable brake disc, a standard high-grade alloy steel chain, and a galvanized hand zipper. The hook, following drop forging and skilled heat treatment, possesses high load capacity and long durability. They have various models such as HSZ-K1/2 to HSZ-K10 with varied capacities, typical lifts, and other specs to fit various requirements.
·The load range is from 0.5T to 20t
·The heavy-duty and compact design meets all relevant world standards
·Reliable brake disc, standard high-grade alloy steel chain and galvanized hand zipper
·After drop forging and professional heat treatment, the hook has hiah load strenath and long service life
| MODEL | HSZ-K1/2 | HSZ-K1 | HSZ-K1 1/2 | HSZ-K2 | HSZ-K3 | HSZ-K5 | HSZ-K10 | |
| CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard lift(m) | 2.5 | 2.6 | 2.5 | 3 | 3 | 3 | 3.5 | |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | |
| Min.distance bettween hooks(mm) | 225 | 306 | 368 | 444 | 486 | 616 | 700 | |
| Chainpull to lift full load(n） | 221 | 304 | 343 | 314 | 343 | 383 | 392 | |
| No. of load chain fall lines(mm) | 1 | 1 | 1 | 2 | 2 | 2 | 4 | |
| Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | |
| Net weight(kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 | |
| Gross weight(kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 | |
| Packing(L*W*H)(cm) | 28*21*17 | 30*24*18 | 34*29*20 | 35*25*19 | 38*30*20 | 45*35*24 | 70*45*75 | |
