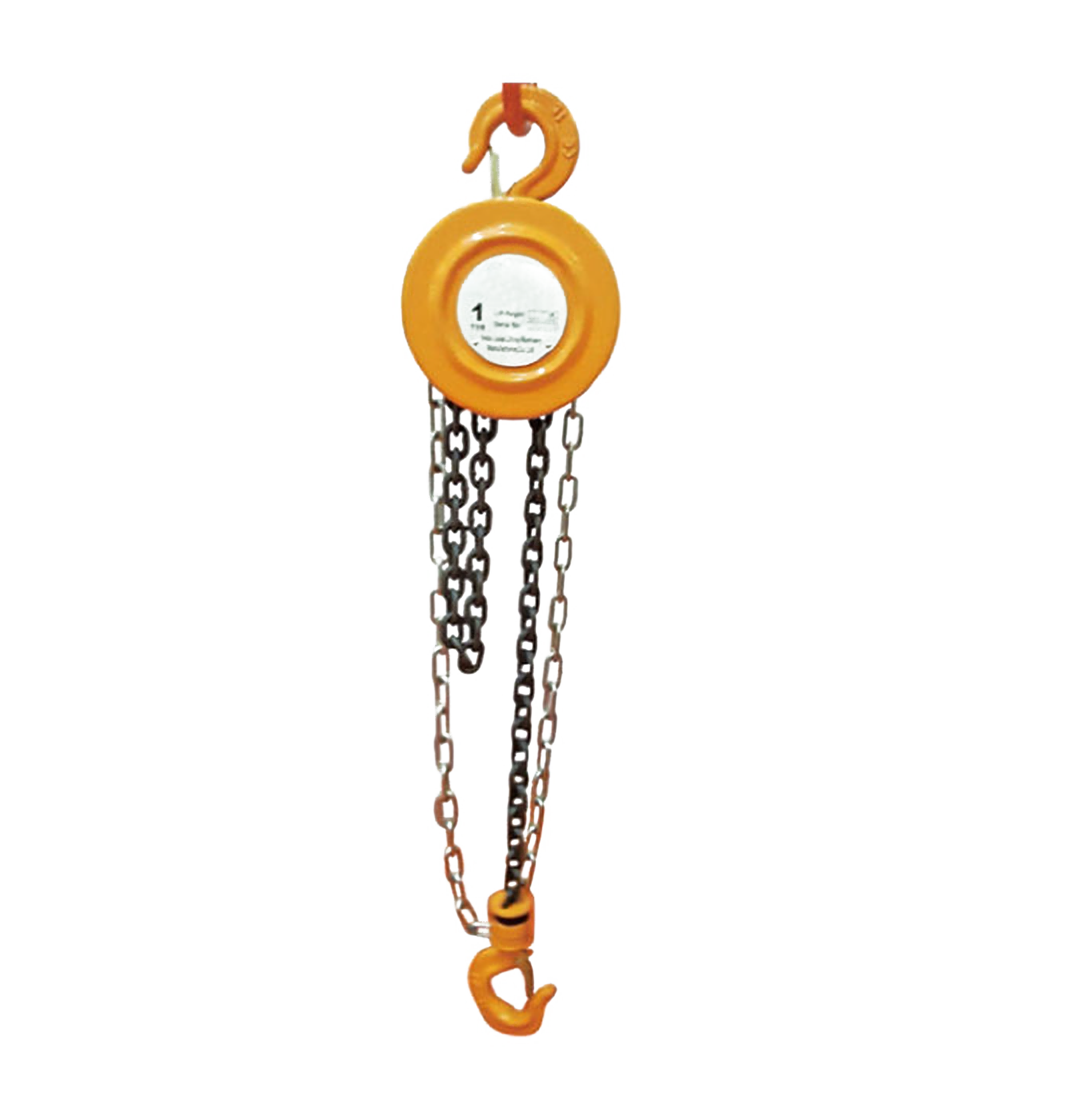

The HSZ Hand Chain Hoist is designed with a Chinese-style round gourd appearance. It makes it possible for the user to lift heavy weights with little force. It consists of high-grade alloy steel chains and plain galvanized bracelets. The hook, being drop forged and professionally heat treated, possesses strong load capacity and extended service life. The range of capacities ranges from 0.5 tons to 20 tons, with heavy machinery options of 30tons and 50tons. Options like HAZ-1/2 to HAZ-10 are offered in various capacities, normal lifts, and other specifications to suit various requirements.
·Chinese style round gourd
·Use small force to lift large weight
·High grade alloy steel chain and standard galvanized Bracelet
·After drop forging and professional heat treatment, the hook has high load strength and long service life
·The load range is from 0.5 tons to 20 tons, and there are 30 tons and 50 tons of heavy machinery
| MODEL | HAZ-1/2 | HAZ-1 | HAZ-1 1/2 | HAZ-2 | HAZ-3 | HAZ-5 | HAZ-10 | |
| CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | |
| Min.distance bettween hooks(mm) | 240 | 275 | 340 | 380 | 475 | 600 | 700 | |
| Chainpull to lift full load(n） | 25 | 33 | 34 | 34 | 35 | 39 | 41 | |
| No. of load chain fall lines(mm) | 1 | 1 | 1 | 2 | 2 | 2 | 4 | |
| Diameter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | |
| Net weight(kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 | |
| Gross weight(kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 | |
| Packing(L*W*H)(cm) | 28*21*17 | 30*24*18 | 34*29*20 | 35*25*19 | 38*30*20 | 45*35*24 | 62*50*28 | |
