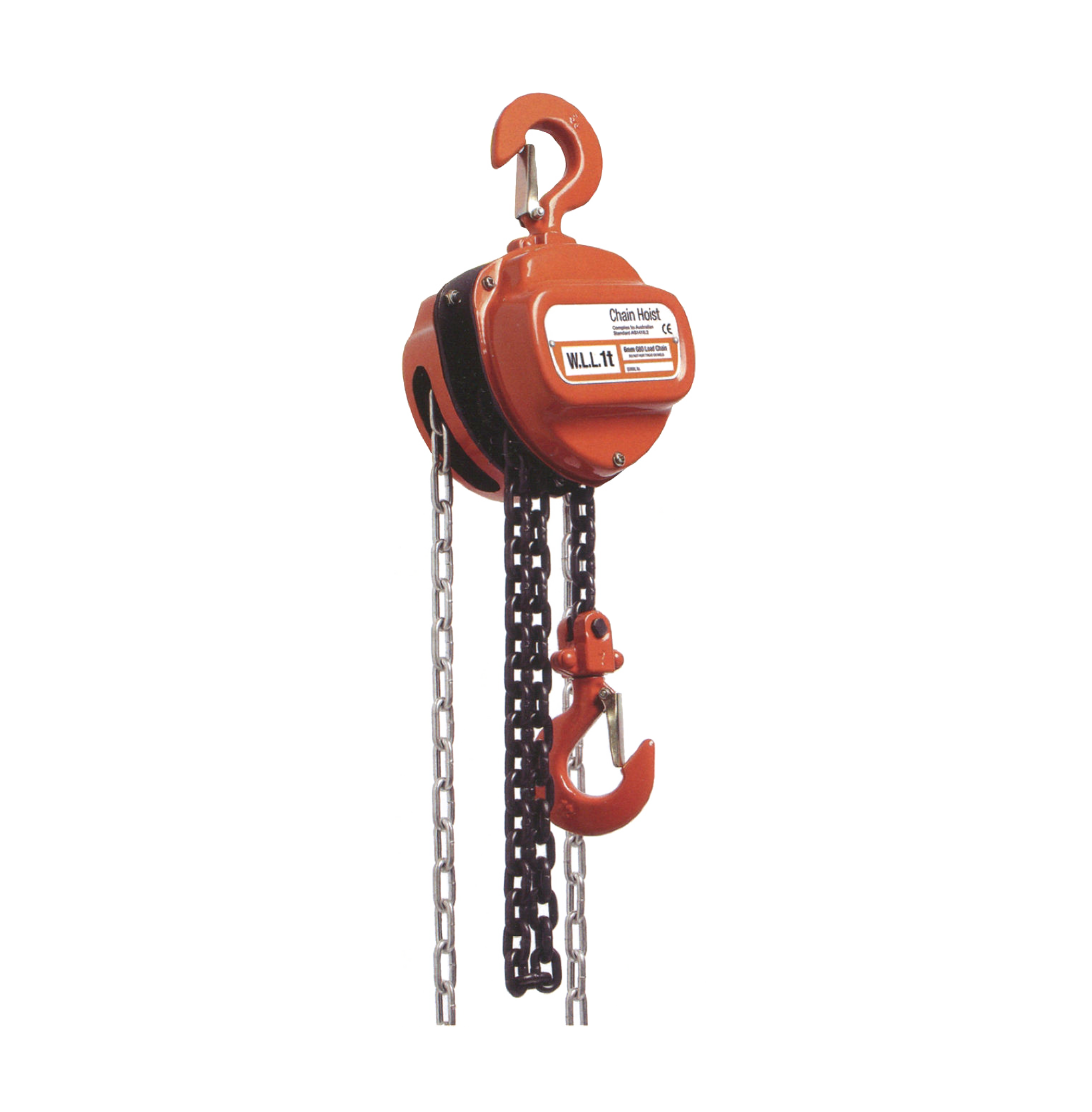

The HSZ - C Hand Chain Hoist is a high-strength lifting equipment. The user can lift large weights with small force. It is equipped with a high-grade alloy steel chain and a common galvanized bracelet. The hook, after professional drop forging and heat treatment, has high load strength and long service life. Load capacity can be anywhere between 0.5 tons to 20 tons, and then there are heavy hoists weighing 30 - tons and 50 - tons. It also offers additional load limiters. Ideal for various industrial lifting processes.
·Additional load limiters are available.
·Use small force to lift large weight
·High grade alloy steel chain and standard galvanized Bracelet.
·After drop forging and professional heat treatment, the hook has high load strengthand long service life.
·The load range is from 0.5 tons to 20 tons, and the heavy hoist has 30 tons and 50 tons
| MODEL | HSZ-C1/2 | HSZ-CL1 | HSZ-C1 1/2 | HSZ-C2 | HSZ-C3 | HSZ-C5 | HSZ-C10 | |
| CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | |
| Min.distance bettween hooks(mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 | |
| Chainpull to lift full load(n） | 25 | 33 | 34 | 34 | 35 | 39 | 41 | |
| No. of load chain(mm) | 1 | 1 | 1 | 2 | 2 | 2 | 4 | |
| Diameter of load chain(mm) | 6 | 6 | 8 | 8 | 8 | 10 | 10 | |
| Net weight(kg) | 8 | 10 | 11 | 14 | 22 | 36 | 68 | |
| Gross weight(kg) | 9.4 | 11.5 | 12 | 17 | 26 | 43 | 82 | |
| Packing(L*W*H)(cm) | 28*21*17 | 30*24*18 | 34*29*20 | 35*25*19 | 38*30*20 | 45*35*24 | 70*46*75 | |
