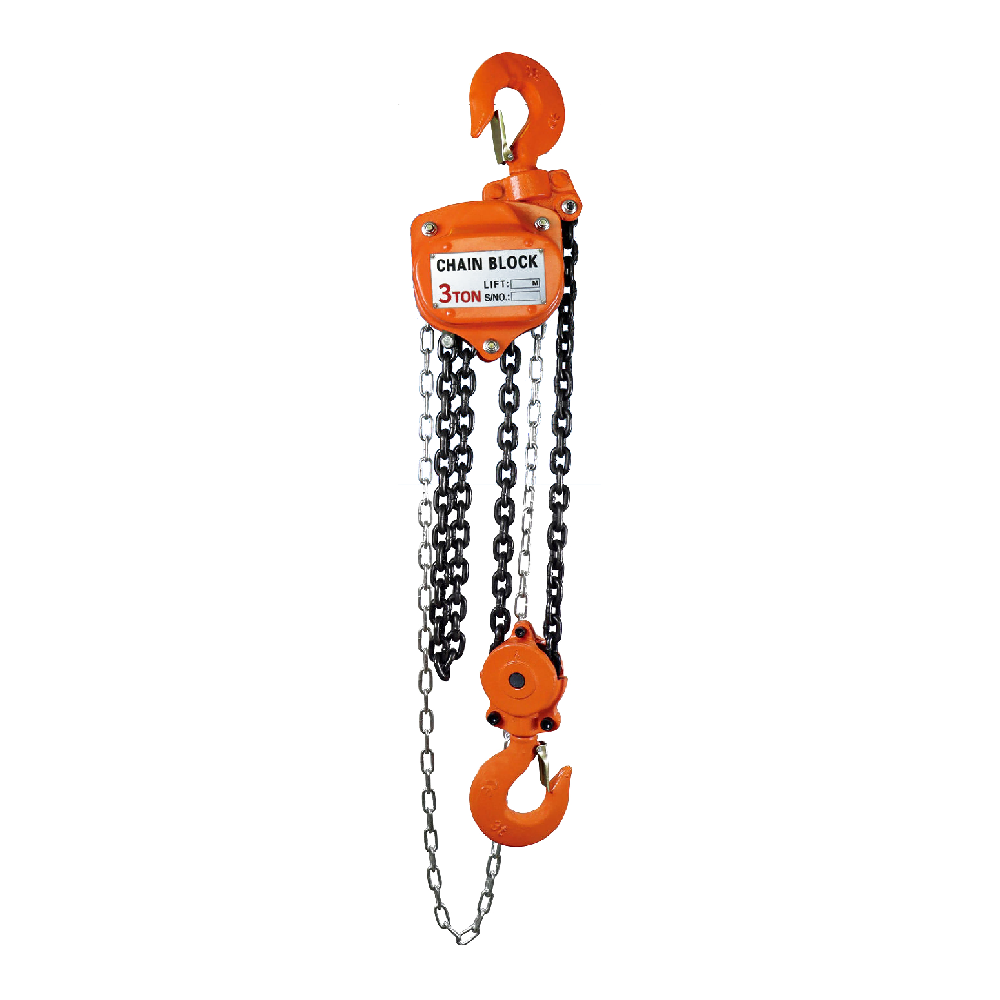

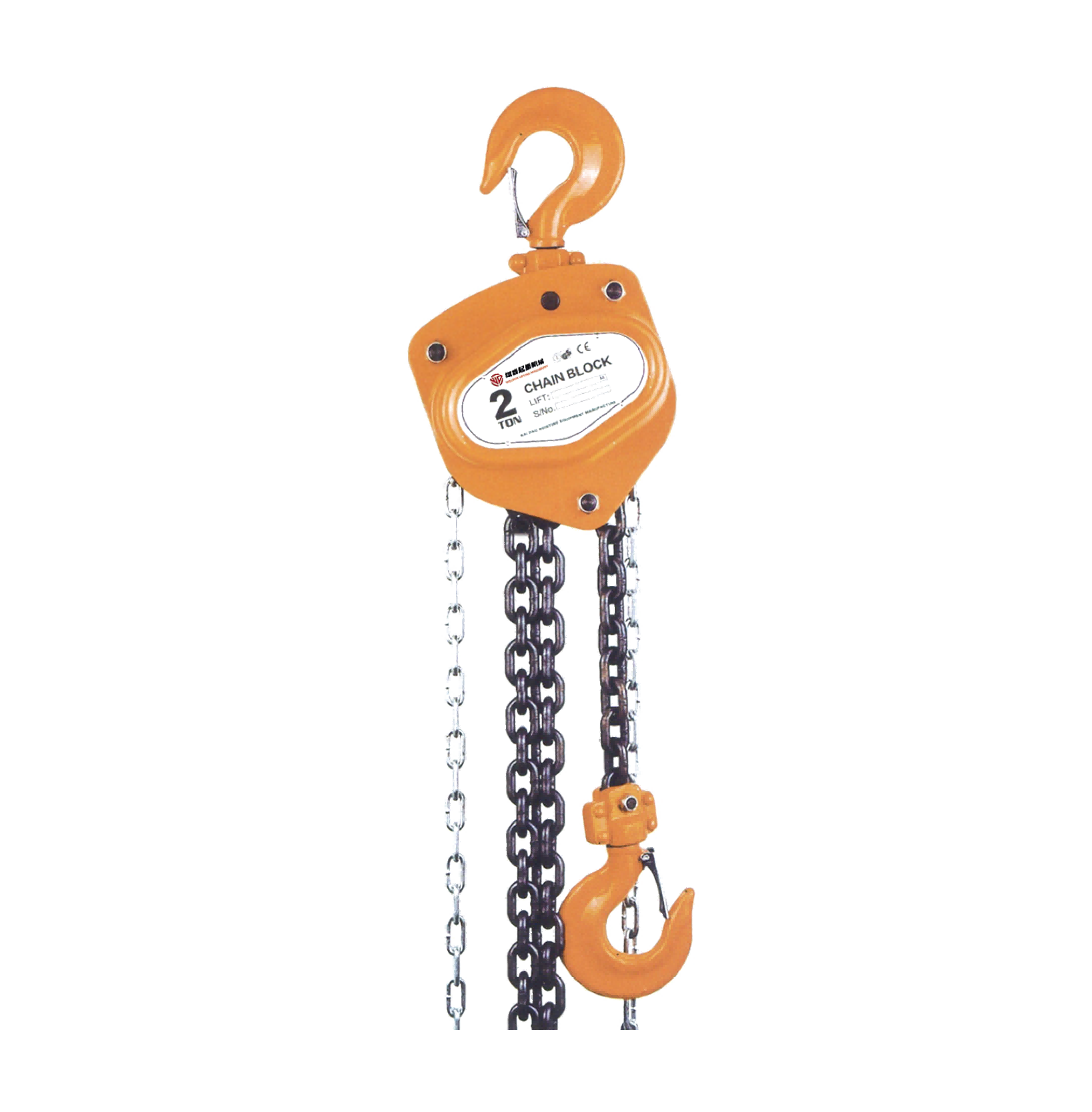

The HSZ - A Hand Chain Hoist features a wide load capacity of 0.5 to 20 tons, and heavy - duty models of 30 and 50 tons. It has a heavy - duty and compact construction to international specifications. It features a reliable brake disc, a standard high - grade alloy steel chain, and a galvanized hand zipper. The hook, after drop forging and heat treatment, has long service life and high strength of loading. They include types like HSZ - A1/2 to HSZ - A10, which differ in capacities, standard lifts, and weight. An example is the HSZ - A1/2, which comes with a capacity of 0.5 tons and net weight of 8.4 kg.
·The load range is from 0.5 tons to 20 tons, and the heavy hoist has 30 tons and 50 tons.
·The heavy-duty and compact design meets all relevant world standards
·Reliable brake disc, standard high-grade alloy steel chain and galvanized hand zipper
·After drop forging and professional heat treatment, the hook has high load strength and long service life
| MODEL | HSZ-A1/2 | HSZ-A1 | HSZ-A1 1/2 | HSZ-A2 | HSZ-A3 | HSZ-A5 | HSZ-A10 | |
| CAPACITY(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | ||
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | |
| Min.distance bettween hooks(mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 | |
| Chainpull to lift full load(n） | 25 | 33 | 34 | 34 | 35 | 39 | 41 | |
| No. of load chain fall lines(mm) | 1 | 1 | 1 | 1 | 2 | 2 | 4 | |
| Diameter of load chain(mm) | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | |
| Net weight(kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 | |
| Gross weight(kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 | |
| Packing(L*W*H)(cm) | 30*17*32 | 30*17*32 | 30*17*32 | 28*19*23 | 30*17*32 | 40*20*34 | 62*50*26 | |
