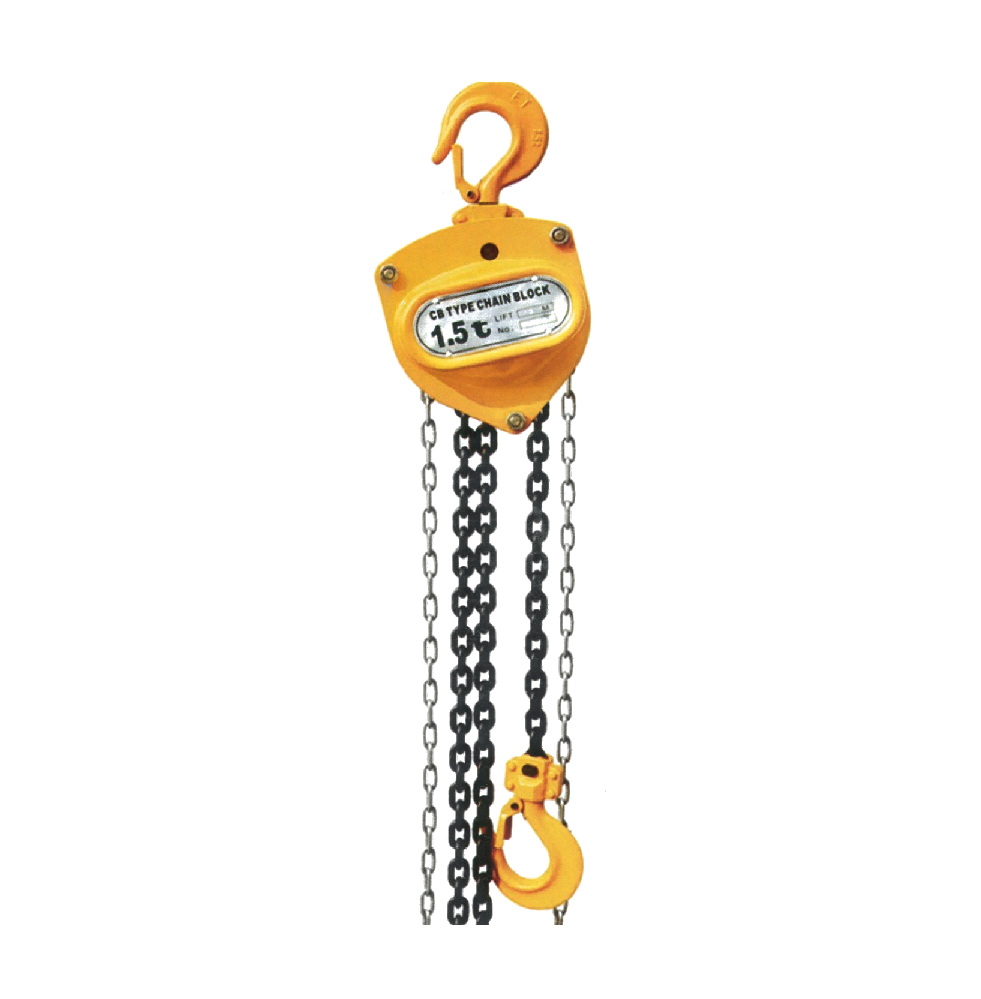

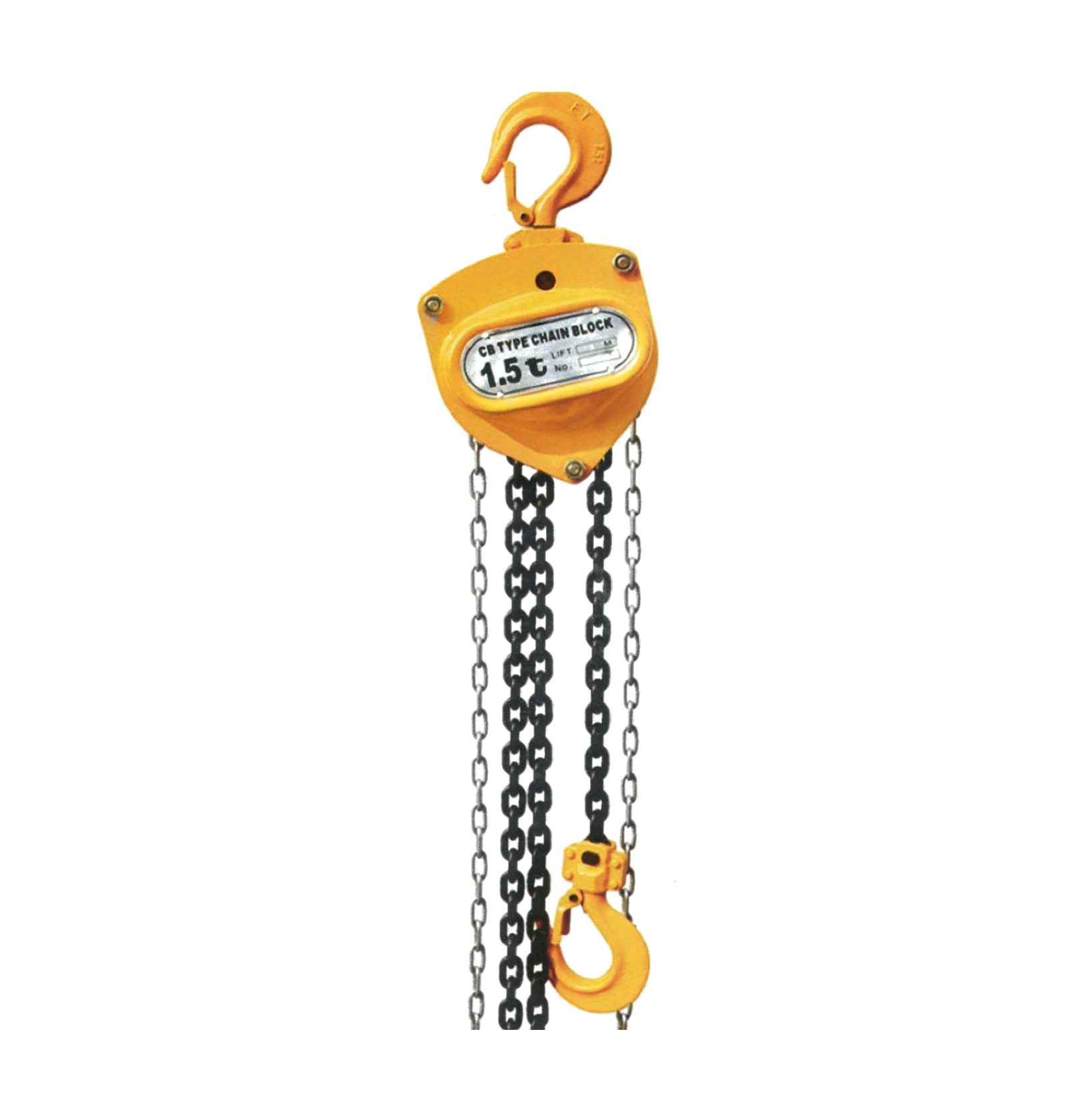

The HSC-CB Hand Chain Hoist is a reliable lifting machine. It has a 0.5Ton to 20Ton working load, heavy - duty types of 30 Ton and 50Ton. Its heavy - duty and space - saving configuration meets international specifications. It consists of a reliable brake disc, a standard high - grade alloy steel chain, and a galvanized hand zipper strip. The hook, after being forged and heat treated, has high strength and long service life. Different models like CB - I 1T to CB - I 10T provide different capacities, lifting heights, and specifications according to requirements.
·Working load from 0.5Ton to 20Ton. The heavy duty hoistwith 30 Ton and 50Ton
·The heavy-duty and compact design meets all relevant world standards
·Reliable brake disc, standard high-grade alloy steel chain and galvanized hand zipper strip
·After forging and professional heat treatment, the hook has high strength and long service life
| MODEL | CB-I 1T | CB-I 1.5T | CB-I 2T | CB-I 3T | CB-I 5T | CB-I 10T | |
| CAPACITY(t) | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Lifting height(m) | 2.5 | 2.5 | 265 | 3 | 3 | 3 | |
| Load chain | No. ofs | 1 | 1 | 1 | 1 | 2 | 4 |
| Demendsion | 6*18 | 7.1*21 | 8*24 | 10*30 | 9*27 | 10*30 | |
| Force of fil load | 250 | 265 | 335 | 372 | 360 | 380 | |
| N.W/G.W(KG) | 14.5/15 | 16.5/17 | 19.5/20.1 | 32/34 | 41.1/43.6 | 75.7/79.1 | |
| Dimension(mm) | A | 149 | 176 | 176 | 231 | 249 | 463 |
| B | 153 | 173 | 173 | 185 | 185 | 185 | |
| C | 29 | 35 | 35 | 39 | 49 | 54 | |
| D | 41 | 51 | 51 | 49 | 67 | 75 | |
| Hmin | 352 | 385 | 385 | 445 | 615 | 765 | |
| Additlonal weight per 1m lift(kg) | 0.8 | 1.1 | 1.4 | 2.2 | 3.8 | 8.8 | |
