Chain Hoist
Hand Chain Hoist close left right

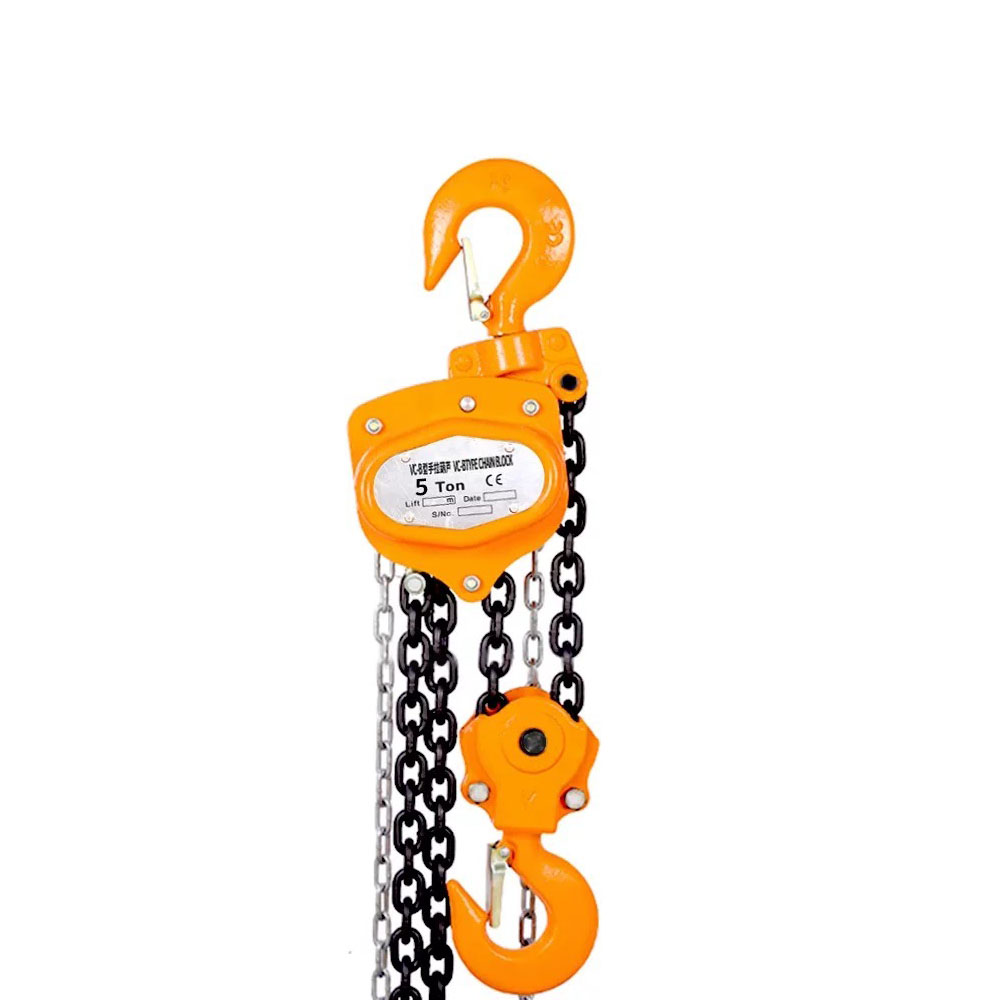

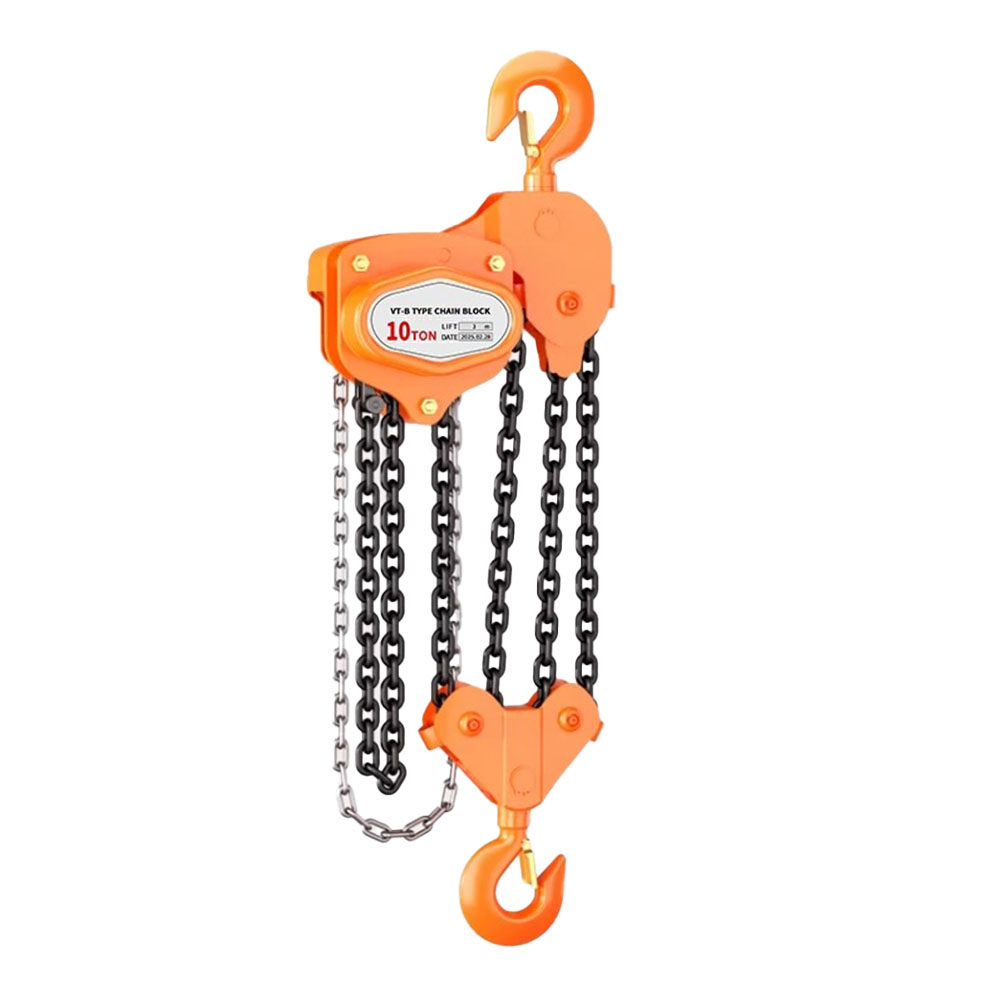

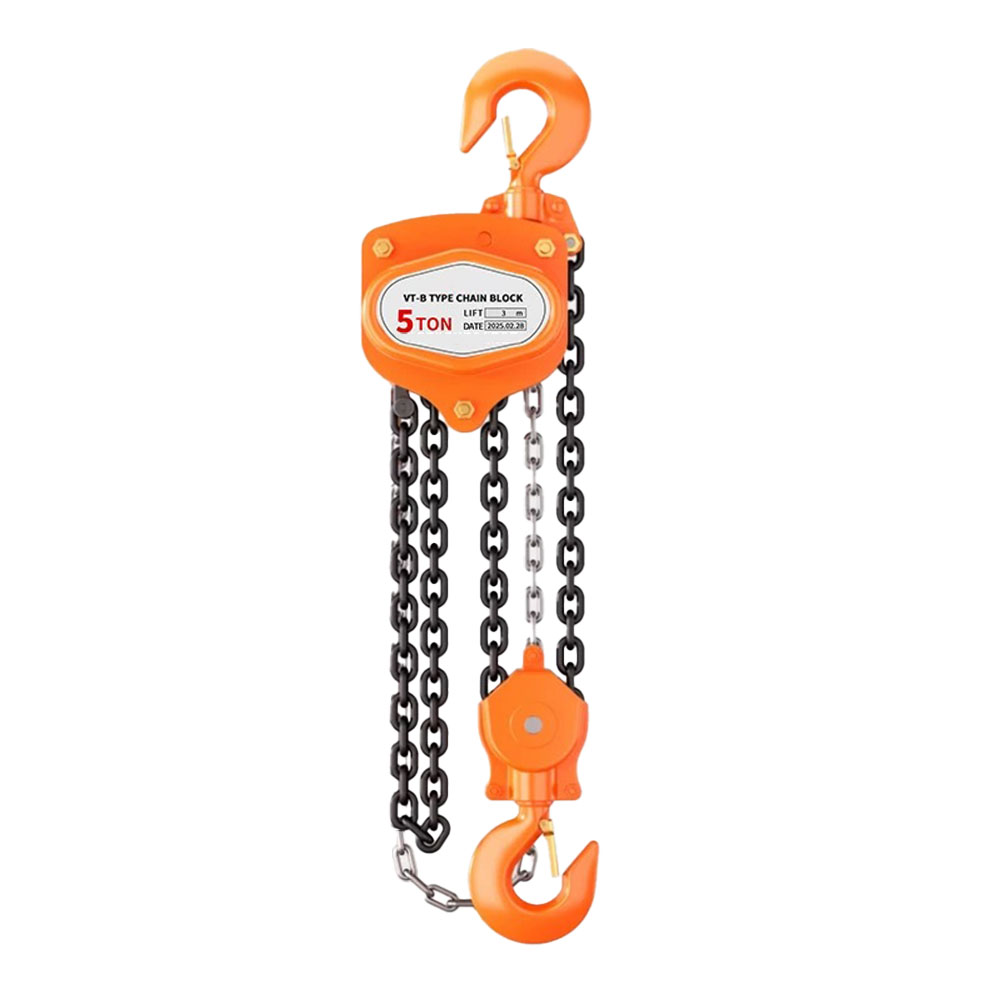

Hand Chain Hoist

The Hand Chain Hoist is a robust, manually operated lifting solution designed for industrial, construction, and warehouse applications. Engineered for durability and precision, this hoist provides reliable vertical lifting and lowering of heavy loads with minimal effort. Its compact design, combined with high load capacity, makes it an indispensable tool for material handling in environments where electricity is unavailable or impractical.

Whatsapp
Email
    • Introduction

    The gear cover design with high strength prevent the outside impact to protect its internal components.

    The adoption of overall bearing, greatly improved product performance and service life.

    The adoption of low-alloy structural steel plates, more safe and long service life.

    Grade 80 high strength load chain, High safety factor, Long service life.

    The open hook rack prevent the entry of foreign matter to avoid the card ant phenomenon of chain and pulley.

    Steady rotation, high efficiency, light


    Parameter


    TYPE

    TOPONE-D1/2

    TOPONE-D1

    TOPONE-D2

    TOPONE-D3

    TOPONE-D5

    TOPONE-D10

    TOPONE-D15

    TOPONE-D20

    TOPONE-D30

    Capacity

    T

    0.5

    1

    2

    3

    5

    10

    15

    20

    30

    Standard Lift

    M

    3/6

    3

    3

    3

    3

    3

    6

    6

    6

    Running Test Load

    T

    0.75

    1.5

    3

    4.5

    7.5

    15

    22.5

    30

    45

    Effort Required To Lift Rated Load

    N

    240

    250

    335

    343

    380

    380

    385

    400x2

    400x2

    Falls of Load Chain


    1

    1

    1

    2

    2

    4

    8

    8

    8

    Load Chain Diameter

    mm

    5x15

    6x18

    8x24

    7x21

    10x30

    10x30

    10x30

    10x30

    10x30

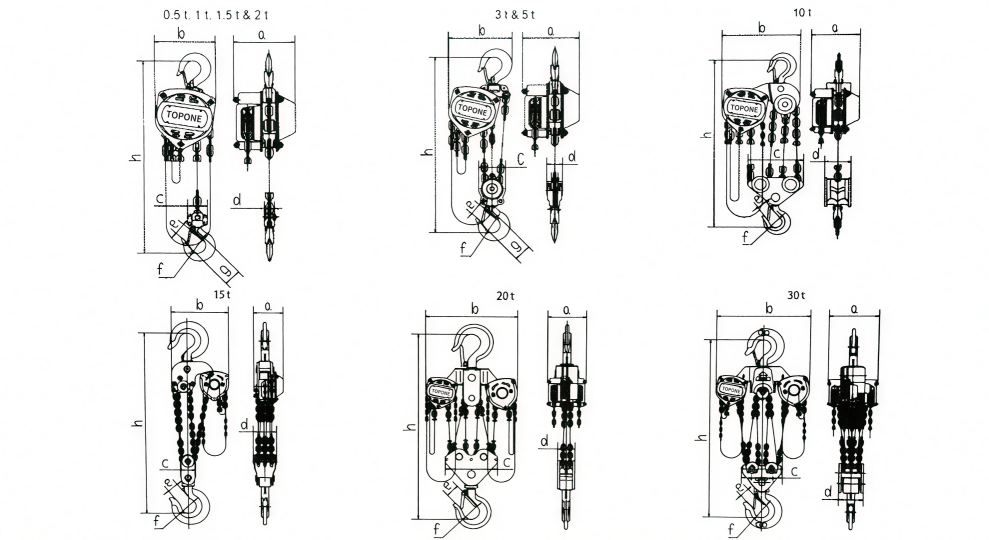

    Dimensions(mm)

    a

    148

    172

    210

    230

    280

    385

    405

    640

    705

    b

    132

    151

    175

    177

    189

    189

    242

    200

    454

    c

    23

    26

    34

    39

    41

    50

    80

    80

    80

    d

    35

    40

    50

    55

    65

    85

    110

    110

    110

    h min

    345

    376

    470

    565

    630

    780

    920

    980

    1280

    Net Weight

    Kg

    9.3/14

    12.2

    19.5

    27

    41

    78

    160

    217

    433

    Extra Weight Per Meter of Extra Lift

    Kg

    1.4

    1.6

    2.2

    3

    5.2

    9.5

    14.2

    19

    27.7


    Standards
