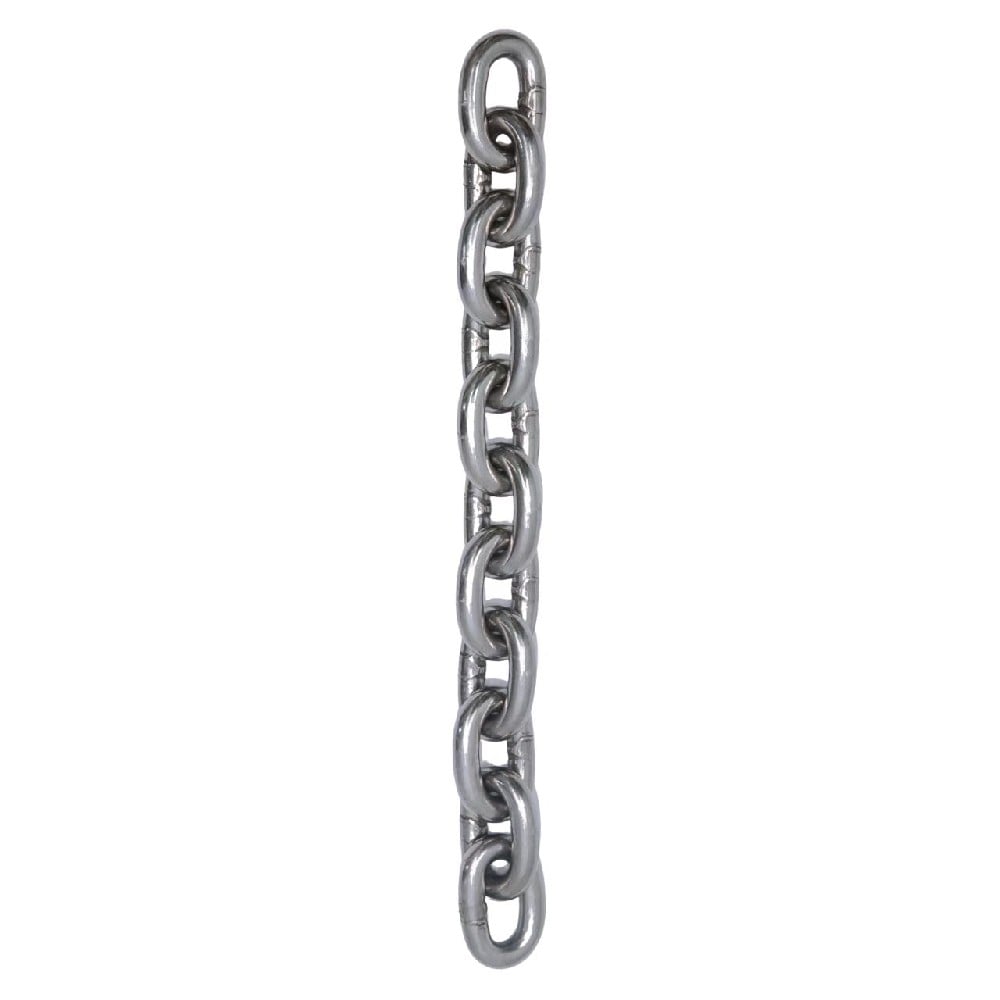

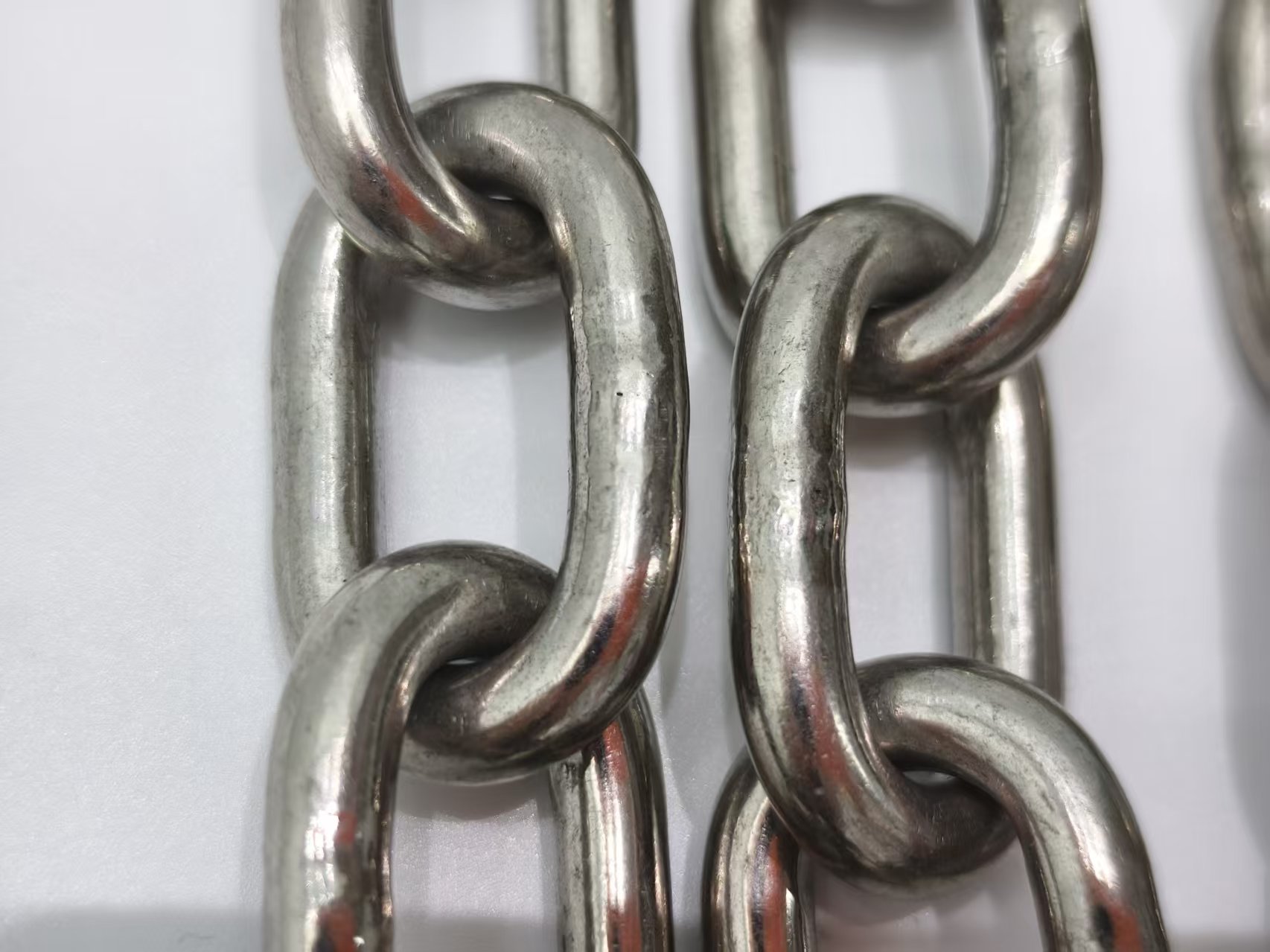

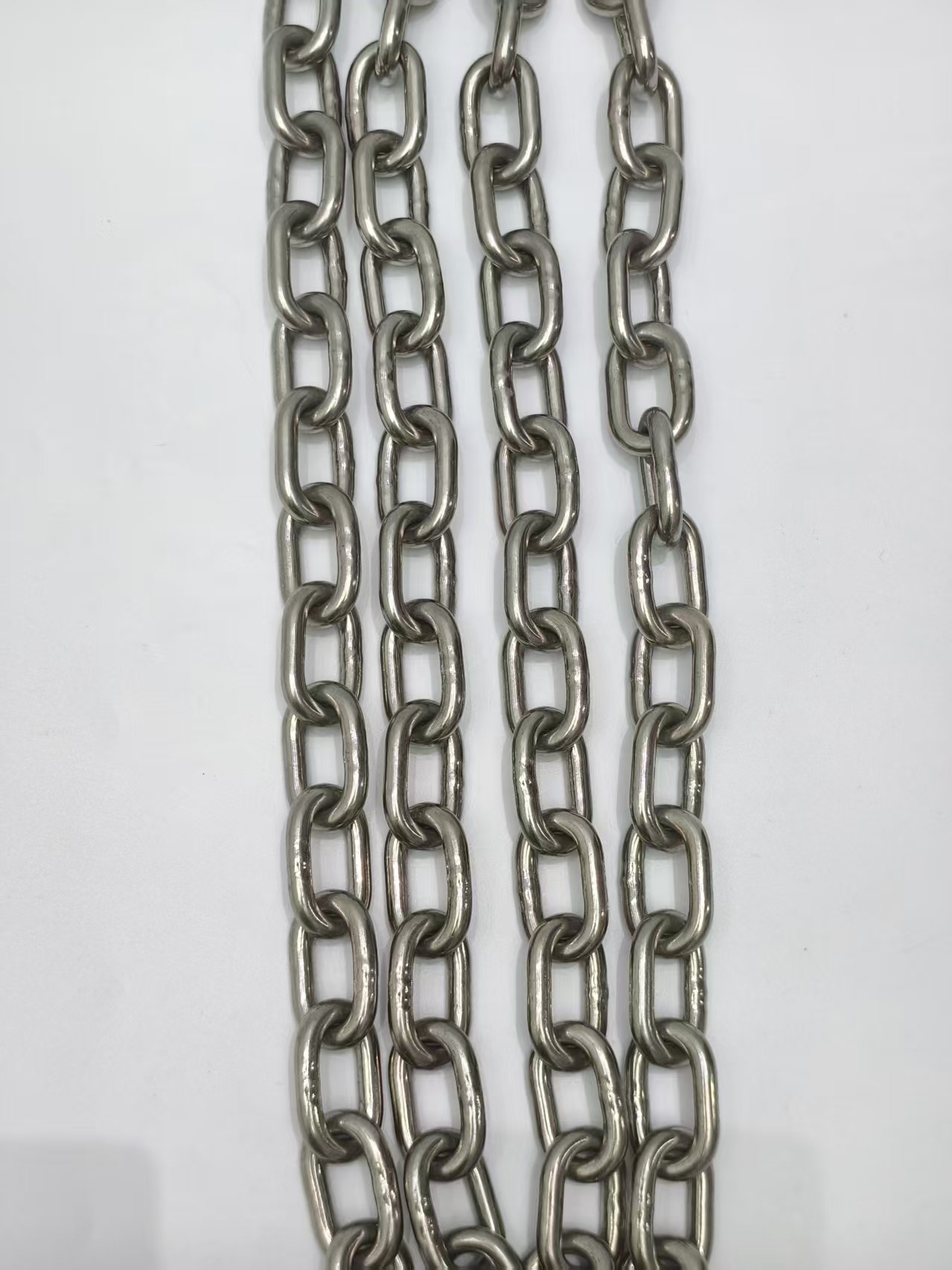

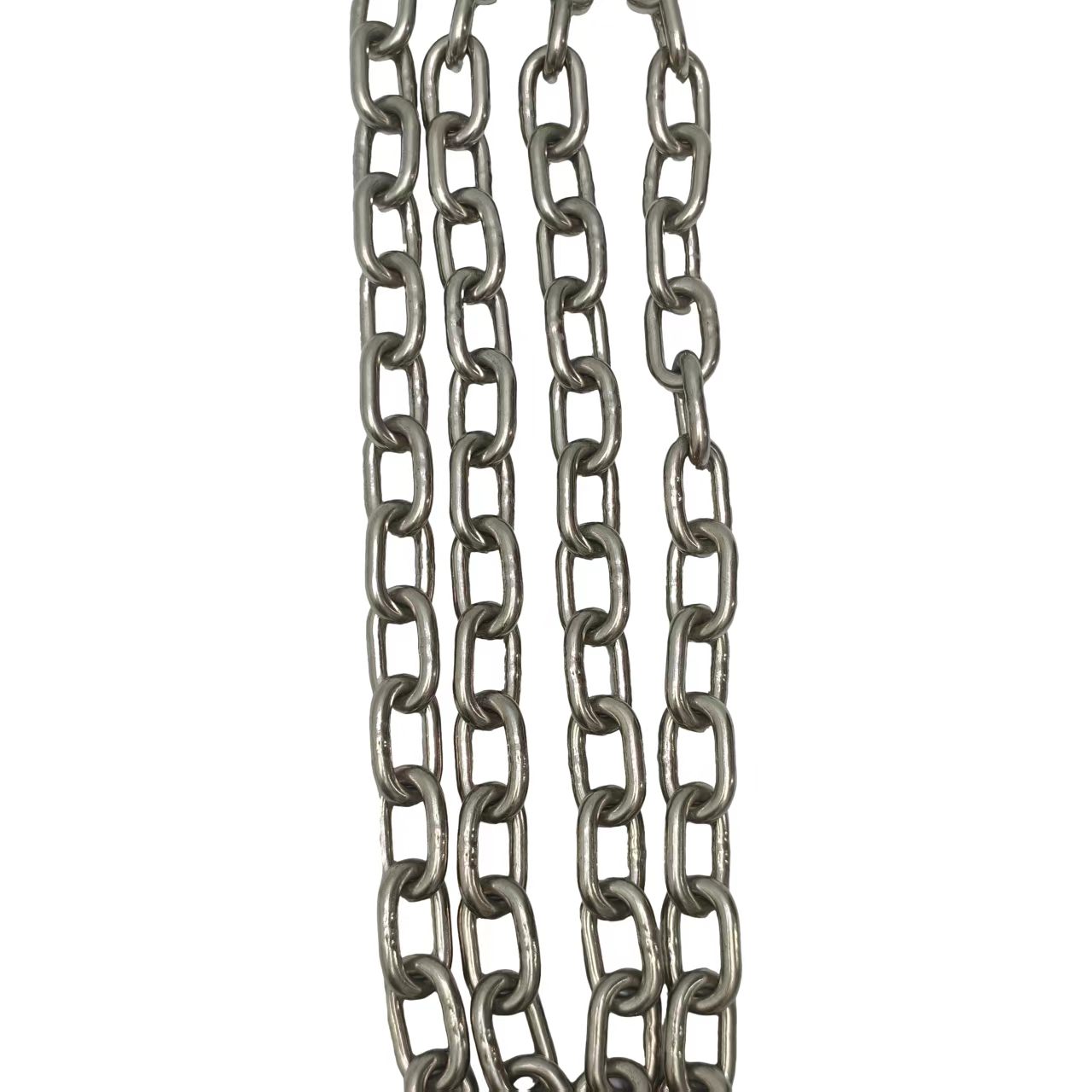

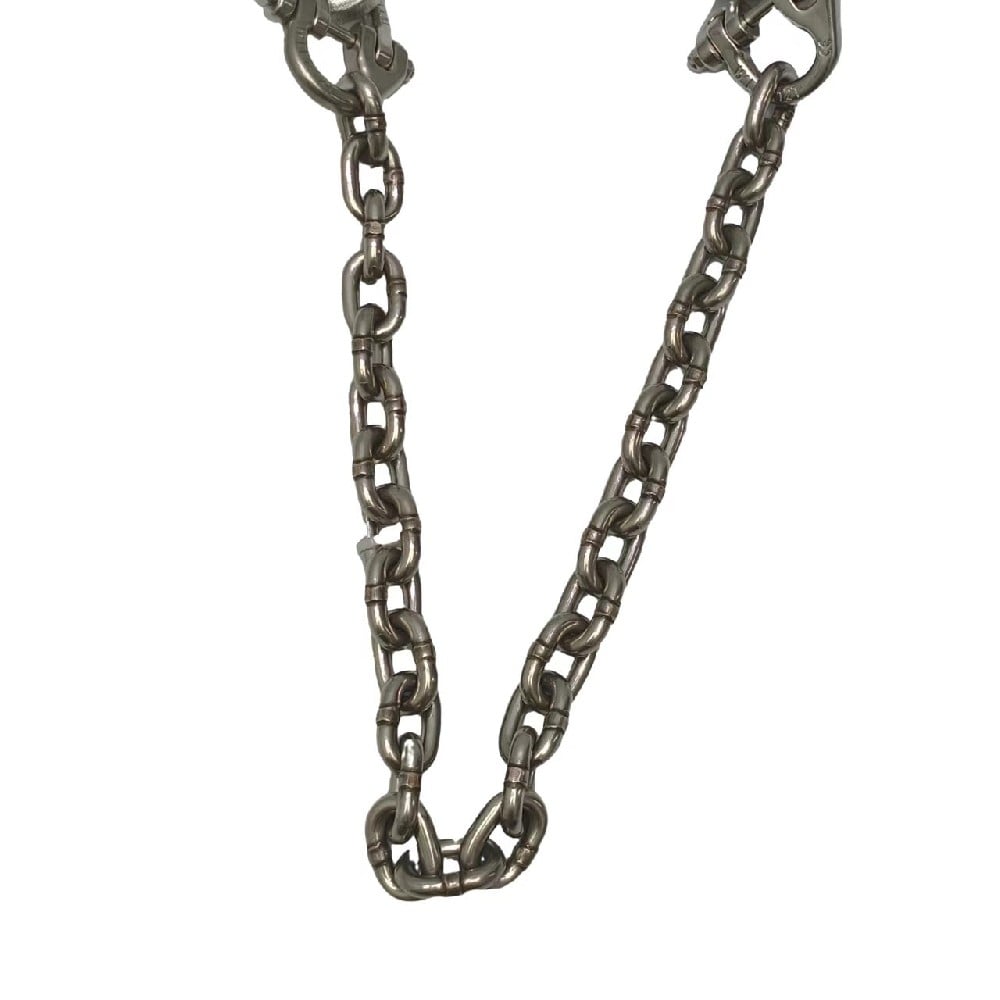

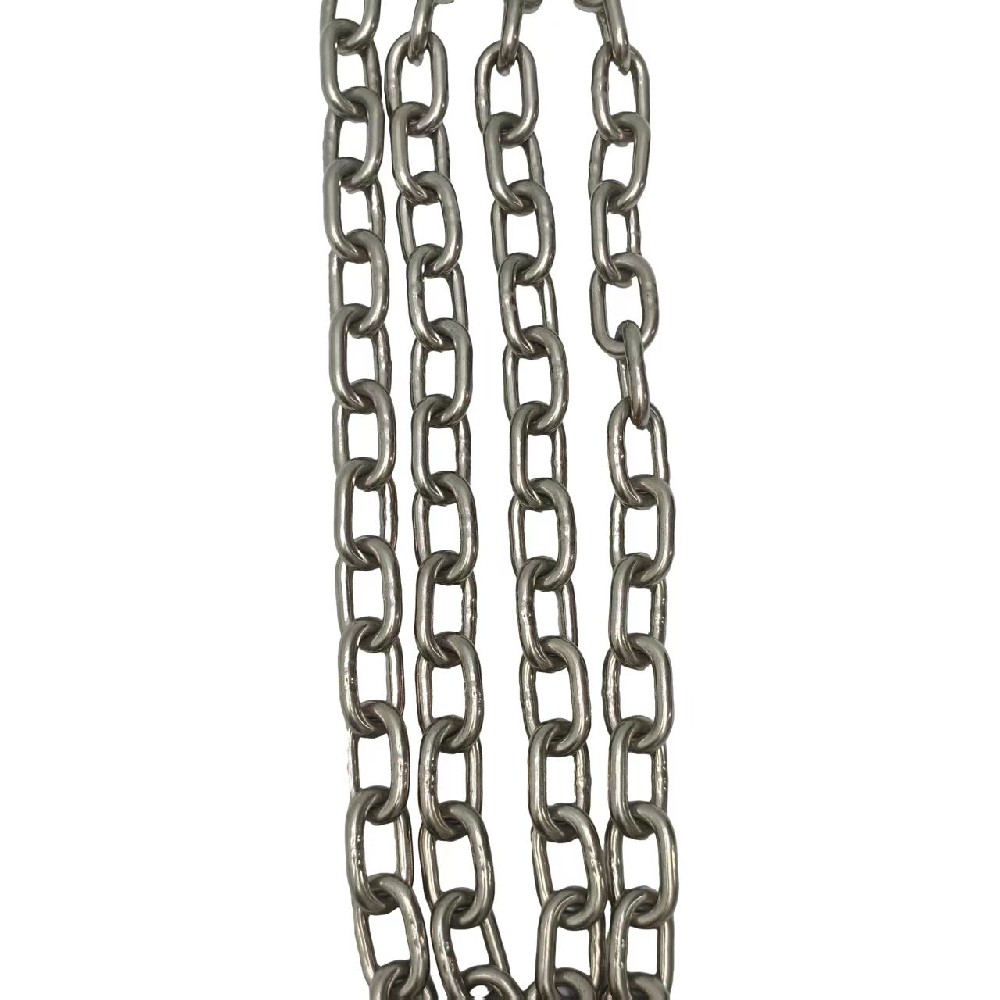

G43 Stainless Steel Chain combines the working strength of a Grade 43 utility chain with the corrosion resistance of stainless steel. TOPONE joins each chain link by Gas Tungsten Arc Welding, also known as TIG welding, under argon shielding.

Unlike galvanized carbon steel chain, this product obtains its corrosion resistance from the stainless steel itself. It does not depend on a zinc, paint or polymer coating that may wear during use. The chain suits humid, coastal, marine and industrial environments where corrosion resistance and a clean metal surface are required.

Typical applications include cargo lashing, gradual towing, agricultural connections, tailgate restraint, guard chains, general industrial securing and marine anchor or windlass systems. Users must select the diameter and WLL from the TOPONE product certificate and verify the compatibility of every hook, shackle, load binder or windlass.

G43 is not an overhead lifting grade. Never use this chain for hoisting, chain slings, cranes, chain blocks, suspended loads or personnel lifting.

Parameter Notes

The WLL applies to an undamaged, straight chain under gradual direct tension. Shock loading, twisting, knotting, side loading and loading over sharp edges can reduce chain capacity.

Do not use a carbon steel G43 load table for this stainless steel product unless TOPONE testing confirms identical dimensions, proof load, breaking load and design factor.

The component with the lowest WLL determines the capacity of the complete chain assembly. Hooks, shackles, connecting links and load binders must match the chain diameter and intended application.

For an anchor or windlass system, confirm the link pitch, inside width and outside width with the windlass manufacturer before ordering.

Name: G43 Stainless Steel Chain
Standard: NACM Welded Steel Chain Specifications as the primary dimensional and mechanical-performance reference; MIL-DTL-32655 only when contractually specified, qualified and certified
MOQ: 100 Meters
Package: Carton + Steel Pallet

Manufacturing Standards

TOPONE manufactures the chain according to the approved stainless steel material specification, product drawing and Welding Procedure Specification.

Each link uses TIG welding under argon shielding. The manufacturing documentation must define the stainless steel designation, chain diameter, link dimensions, weld acceptance requirements, WLL, proof force and minimum breaking force.

NACM welded chain specifications or marine windlass dimensions may be applied only when the purchase order, test results and certificate confirm compliance.

ASTM A413 primarily covers Grade 43 carbon steel chain. It must not be presented as the manufacturing standard for this stainless steel G43 chain without separate technical verification.

EN 818 lifting-chain standards do not apply because this product is not intended for overhead lifting.

Testing Standards

Production inspection includes:

Stainless steel material verification

Chemical composition and mechanical-property verification

Chain diameter and link-dimension inspection

Visual inspection of every TIG weld

Weld penetration or nondestructive examination when specified

Proof-load testing at the approved test force

Breaking-load verification

WLL verification

Surface inspection

Grade and batch traceability

Final inspection certificate

Each production batch must remain traceable to its raw material, welding record and mechanical test results. WLL and minimum breaking load must appear in the applicable product documentation.

Application Standards

Use the chain only for the non-lifting applications stated in the TOPONE technical documentation. Cargo-securement assemblies must meet the applicable transport regulations in the destination market.

When used with a load binder, hook or shackle, every component must carry a compatible WLL. Never exceed the capacity of the lowest-rated component.

Marine anchor-chain use requires dimensional compatibility with the windlass, suitable corrosion resistance for the water conditions and regular inspection for pitting and wear. This commercial G43 chain must not be described as a class-certified ship anchor chain unless the required classification certificate is supplied.

G43 Stainless Steel Chain must never be used for overhead lifting.

Maintenance Standards

Inspect the chain before use and at intervals determined by the working environment. Check every link and TIG-welded area for cracks, deformation, elongation, wear, pitting, crevice corrosion and loss of cross-section.

Rinse the chain with fresh water after seawater or chloride exposure, then dry it before storage. Keep it away from carbon steel grinding dust, contaminated wire brushes and unclean storage racks.

Do not weld, heat, bend, coat or repair a finished G43 stainless steel chain. Remove the chain from service when its marking becomes illegible or when any measurement exceeds the TOPONE discard limit.
