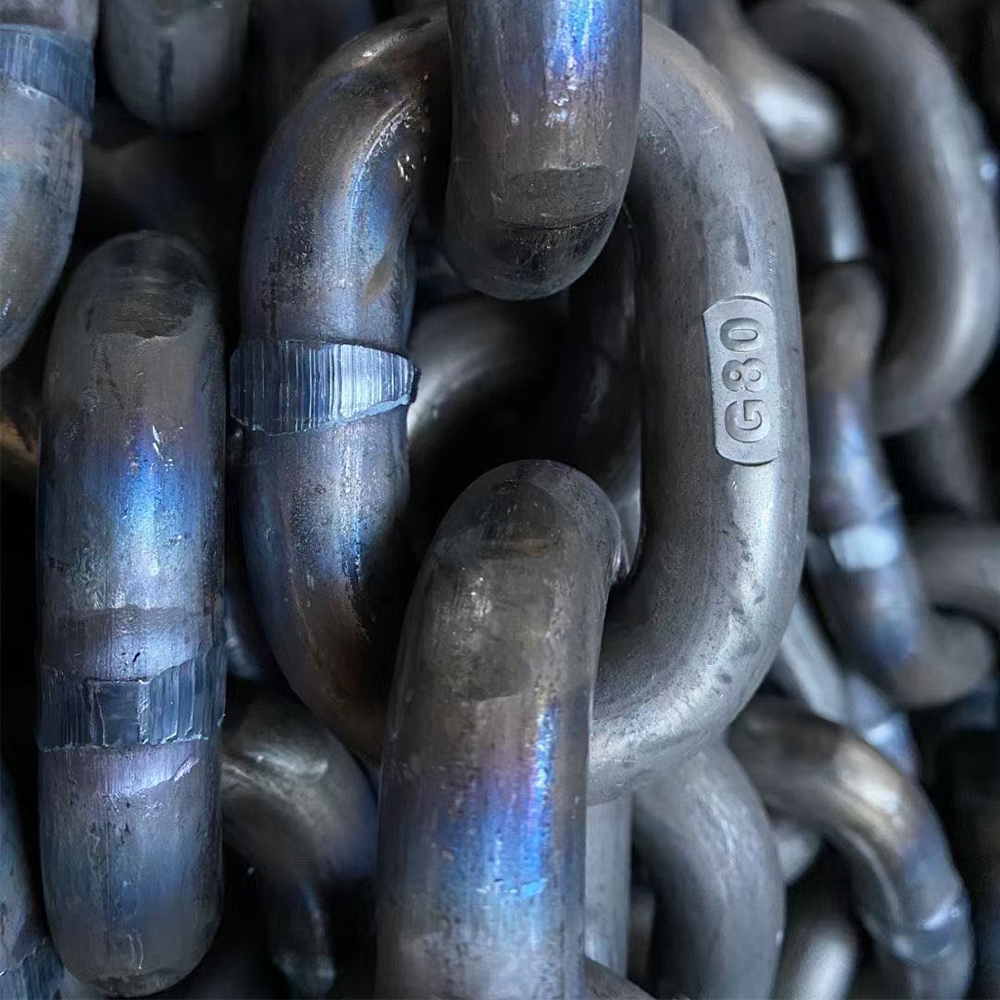

There are three types of wear-resistant chains
1. Low temperature tempering (LTT) G90
Use a temperature lower than A1 during tempering, sacrifice elongation to increase breaking load and hardness (40~42HRC or 390HB), Elongation 14%
2. Quenching only (QO) G60
Only quenching (temperature exceeds AC3) without tempering, sacrifice elongation and breaking load to increase overall hardness (45~47HRC or 450HB), Elongation 10%
3. Carbonitriding (C-N) G40
Through carbonitriding, a hard shell is formed on the surface of the chain (depth: up to 15% of the chain diameter, hardness: up to 64HRC or 800HV), and the core is soft with a certain elongation (relative elongation 1~3.5%).

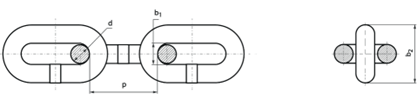

Chain Size d x p | Diameter d | Pitch P | Inside Width b1 min. | Outside Width b2 max. | Weight |
(mm) | (mm) | (mm) | (mm) | (mm) | (kg/m) |
14 x 50 | 14 ±0.4 | 50 ±0.5 | 17 | 48 | 4.0 |
18 x 64 | 18 ±0.5 | 64 ±0.5 | 21 | 60 | 6.6 |
19 x 64.5 | 19 ±0.6 | 64.5 ±0.6 | 22 | 63 | 7.4 |
22 x 86 | 22 ±0.7 | 86 ±0.9 | 26 | 73 | 9.5 |
24 x 86 | 24 ±0.7 | 86 ±0.9 | 28 | 79 | 11.6 |
24 x 87.5 | 24 ±0.7 | 87.5 ±0.9 | 28 | 79 | 11.5 |
26 x 92 | 26 ±0.8 | 92 ±0.9 | 30 | 85 | 13.7 |
30 x 108 | 30 ±0.9 | 108 ±1.1 | 34 | 97 | 18.0 |
34 x 126 | 34 ±1.0 | 126 ±1.3 | 38 | 110 | 22.7 |
38 x 126 | 38 ±1.1 | 126 ±1.4 | 42 | 121 | 30.1 |
38 x 137 | 38 ±1.1 | 137 ±1.4 | 42 | 121 | 29.0 |
42 x 137 | 42 ±1.1 | 137 ±1.4 | 48 | 137 | 36.9 |
42 x 146 | 42 ±1.1 | 146 ±1.5 | 48 | 137 | 36.0 |
Chain Size d x p (mm) | Characteristic | Chain Grade | Test Force (KN) | Breaking Force min. (KN) |
14 x 50 | LTT | G90 | 175 | 277 |
QO | G60 | 125 | 185 | |
C-N | G40 | 75 | 123 | |
18 x 64 | LTT | G90 | 288 | 458 |
QO | G60 | 190 | 305 | |
C-N | G40 | 125 | 205 | |
19 x 64.5 | LTT | G90 | 319 | 510 |
QO | G60 | 213 | 340 | |
C-N | G40 | 143 | 227 | |
22 x 86 | LTT | G90 | 425 | 684 |
QO | G60 | 285 | 456 | |
C-N | G40 | 190 | 304 | |
24 x 86 24 x 87.5 | LTT | G90 | 500 | 814 |
QO | G60 | 340 | 540 | |
C-N | G40 | 225 | 362 | |
26 x 92 | LTT | G90 | 595 | 955 |
QO | G60 | 400 | 637 | |
C-N | G40 | 265 | 425 | |
30 x 108 | LTT | G90 | 793 | 1270 |
QO | G60 | 525 | 848 | |
C-N | G40 | 350 | 565 | |
34 x 126 | LTT | G90 | 1020 | 1635 |
QO | G60 | 680 | 1089 | |
C-N | G40 | 450 | 725 | |
38 x 126 38 x 137 | LTT | G90 | 1275 | 2040 |
QO | G60 | 850 | 1360 | |
C-N | G40 | 565 | 906 | |
42 x 137 42 x 146 | LTT | G90 | 1550 | 2495 |
QO | G60 | 1038 | 1662 | |
C-N | G40 | 693 | 1108 |
