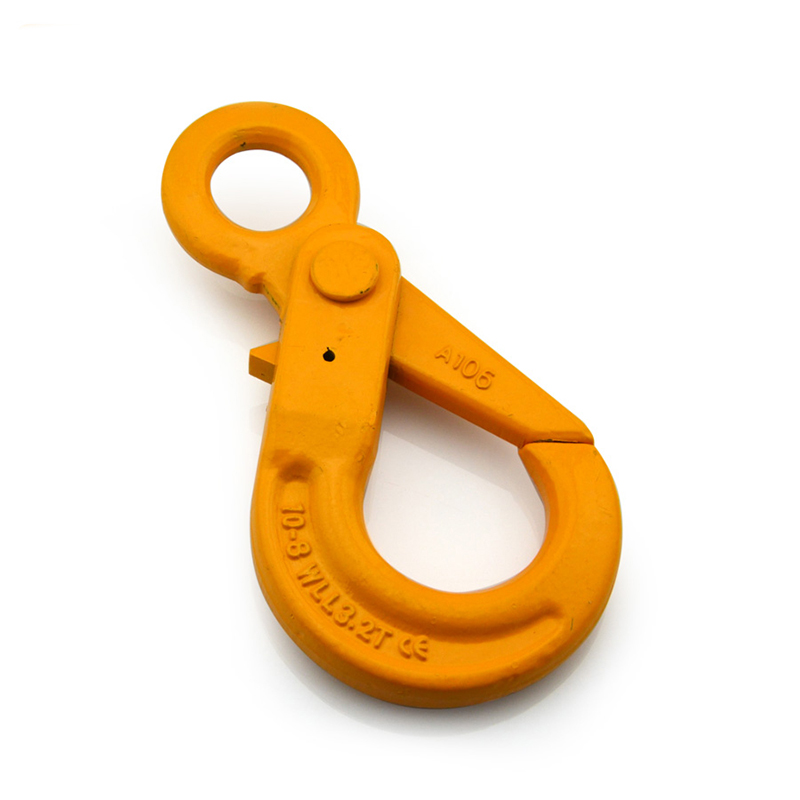

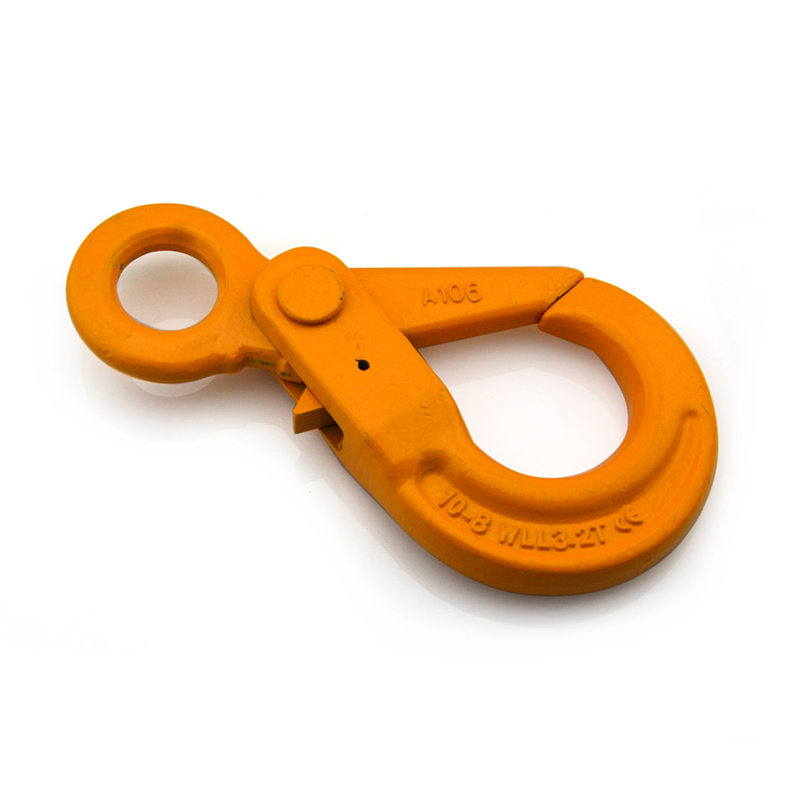

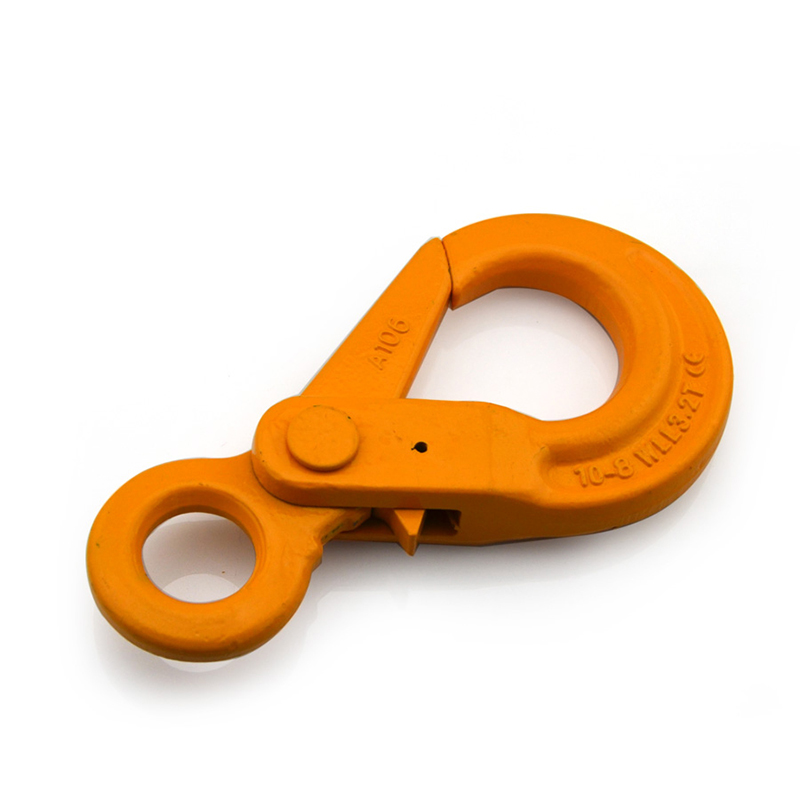

Grade 80 Self Locking Eye HookThe latch on this hook automatically closes when pulling force is applied to the slingDesigned to be attached directly to a length of chain via a connecting linkGrade 80 alloy steel4:1 design factorTough powder coat finishReplacement parts always availableProof tested and certified
| FOR CHAIN SIZE | WORKING LOAD LIMIT (lbs.) | A (in) | D (in) | G (in) | H (in) | O (in) | R (in) | T(in) | WEIGHT (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 7/32″ | 2,500 | 1.1 | 0.43 | 0.63 | 0.83 | 0.83 | 4.29 | 1.38 | 1.12 |
| 9/32-5/16″ | 4,500 | 1.34 | 0.47 | 0.79 | 1.02 | 0.98 | 5.31 | 1.69 | 2.06 |
| 3/8″ | 7,100 | 1.77 | 0.63 | 0.98 | 1.18 | 1.3 | 6.61 | 2.2 | 3.58 |
| 1/2″ | 12,000 | 2.01 | 0.79 | 1.38 | 1.57 | 1.57 | 8.07 | 2.72 | 7.15 |
| 5/8″ | 18,100 | 2.36 | 1.06 | 1.42 | 1.97 | 1.97 | 9.88 | 3.15 | 13.31 |
| 3/4″ | 28,300 | 3.94 | 1.59 | 2.25 | 2.48 | 2.32 | 10.83 | 3.94 | 18.74 |
Name: Grade 80 Self Locking Eye Hook
Package: Carton + Steel Pallet
