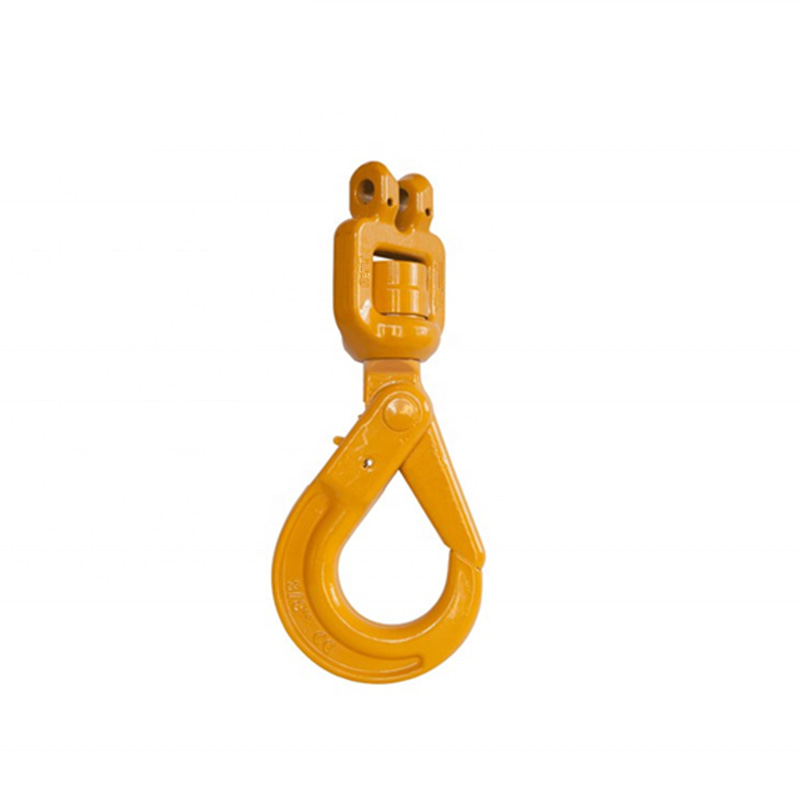

Grade 80 Clevis Self Locking HookThe latch on this hook automatically closes when pulling force is applied to the slingDesigned to attach directly to a length of chain via the engineered clevis headThis engineered head prevents hook to chain mismatchGrade 80 alloy steel4:1 design factorTough powder coat finishReplacement parts always availableProof tested and certified
| FOR CHAIN SIZE | WORKING LOAD LIMIT (lbs.) | A (in) | B (in) | C (in) | G (in) | H (in) | R (in) | T(in) | PxL(in) |
|---|---|---|---|---|---|---|---|---|---|
| 9/32-5/16″ | 4,500 | 1.34 | 0.35 | 0.39 | 0.79 | 1.02 | 4.84 | 1.69 | 0.35×0.89 |
| 3/8″ | 7,100 | 1.77 | 0.47 | 0.55 | 0.98 | 1.18 | 5.63 | 2.2 | 0.51×1.24 |
| 1/2″ | 12,000 | 2.01 | 0.59 | 0.67 | 1.38 | 1.57 | 7.08 | 2.72 | 0.63×1.65 |
| 5/8″ | 18,100 | 2.36 | 0.75 | 0.75 | 1.42 | 1.97 | 8.46 | 3.15 | 0.83×2.03 |
| 3/4″ | 28,300 | 3.94 | 0.98 | 0.87 | 2.01 | 2.48 | 9.25 | 3.46 | 0.94×2.42 |
Name: Grade 80 Clevis Self Locking Hook
Package: Carton + Steel Pallet
