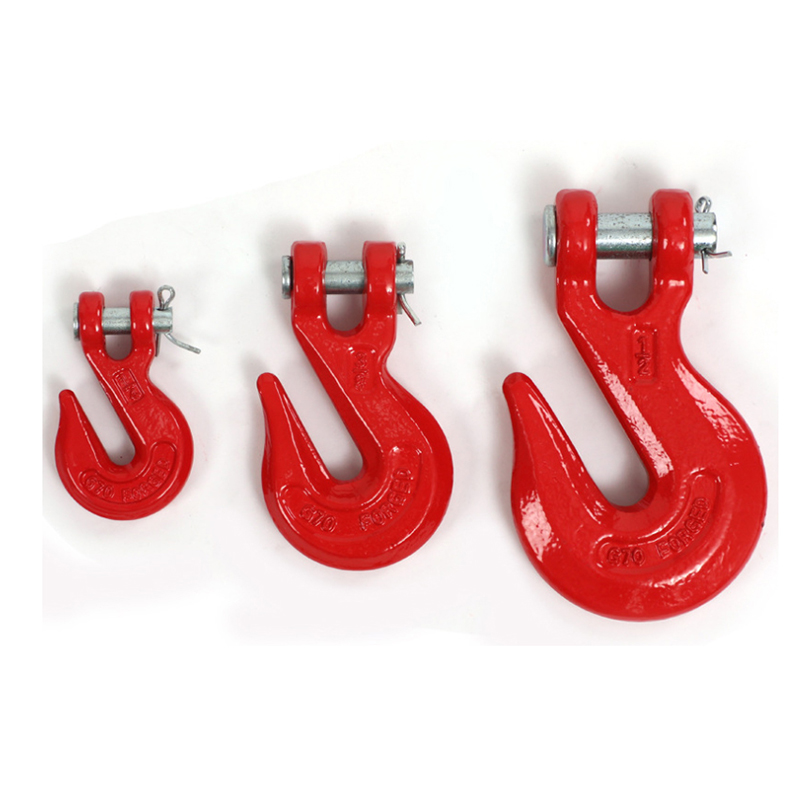

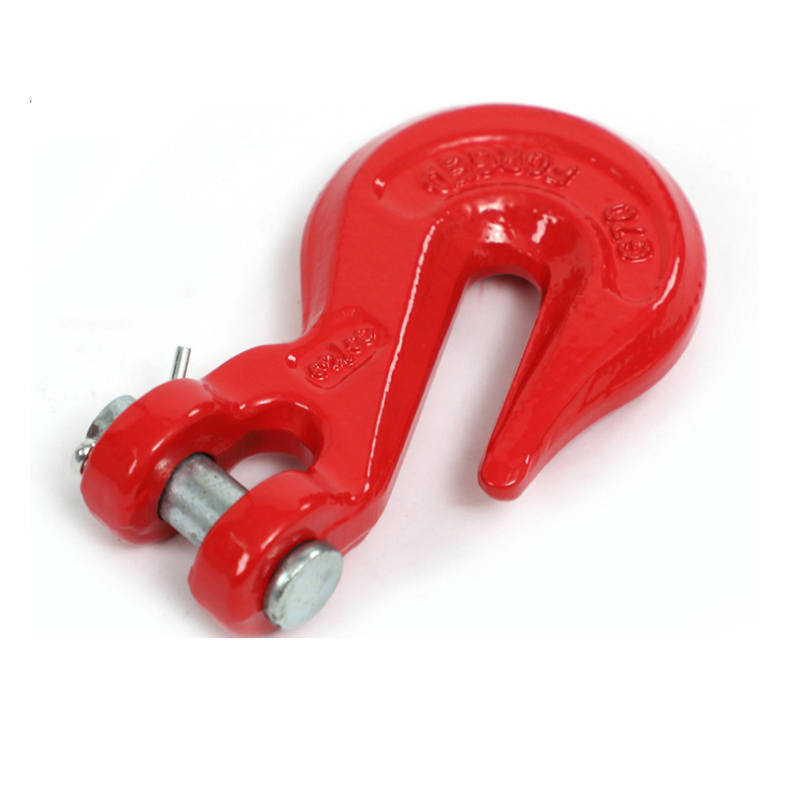

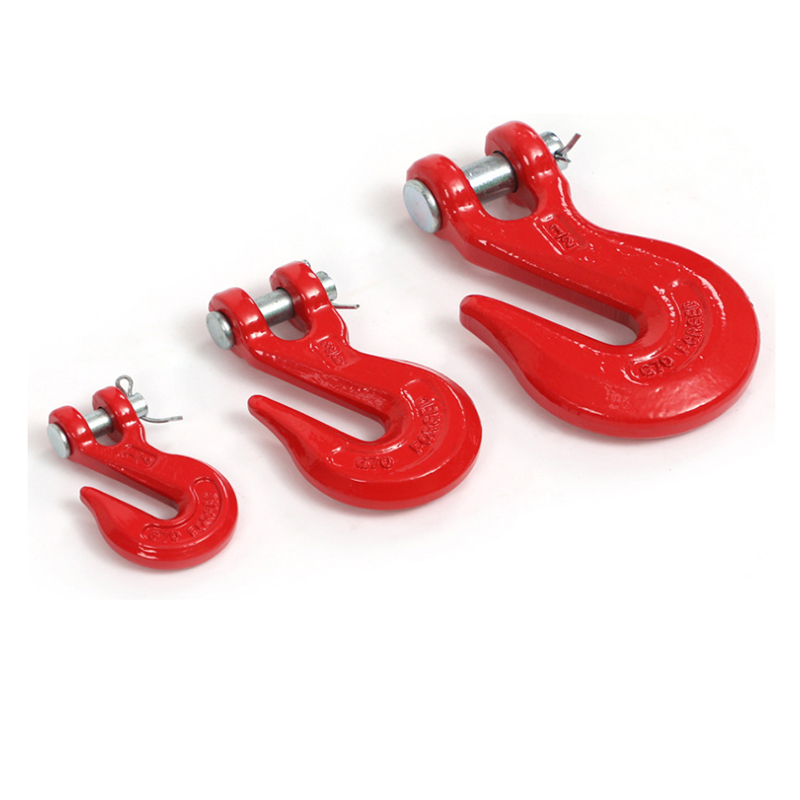

Grade 80 Clevis Grab Hook

Grade 80 Clevis Grab HookCotter Pin AssemblyFor use with tow and binder chainsNOT FOR OVERHEAD LIFTING!

Introduction

Parameter

FOR CHAIN SIZE	WORKING LOAD LIMIT (lbs.)	A (in)	B (in)	C (in)	G (in)	H (in)	R (in)	PxL	WEIGHT (lbs)
9/32-5/16″	4,500	0.39	0.35	0.39	1.18	0.94	1.97	0.35×0.89	0.6
3/8″	7,100	0.51	0.51	0.55	1.73	1.22	2.83	0.51×1.24	1.65
1/2″	12,000	0.67	0.67	0.67	2.09	1.5	3.46	0.63×1.65	2.97
5/8″	18,100	0.79	0.83	0.79	2.52	2.36	4.37	0.83×2.03	6.16
3/4″	28,300	0.94	0.94	0.94	3.35	2.56	5.12	0.94×2.42	10.56
7/8″	34,200	1.02	1.02	1.02	3.43	2.68	5.47	1.02×2.83	12.43

Standards

Name: Grade 80 Clevis Grab Hook

Package: Carton + Steel Pallet
