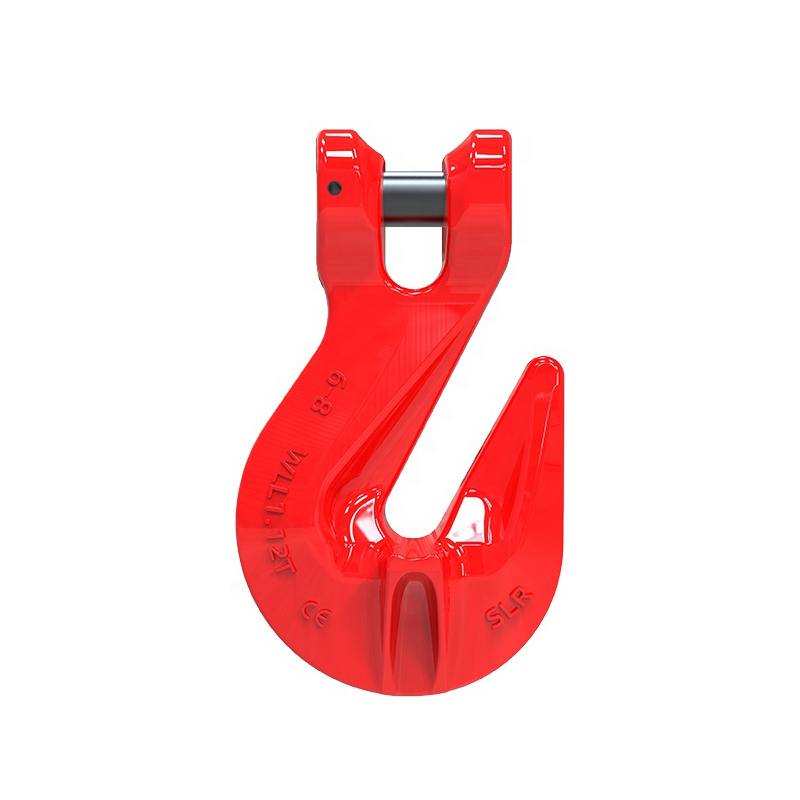

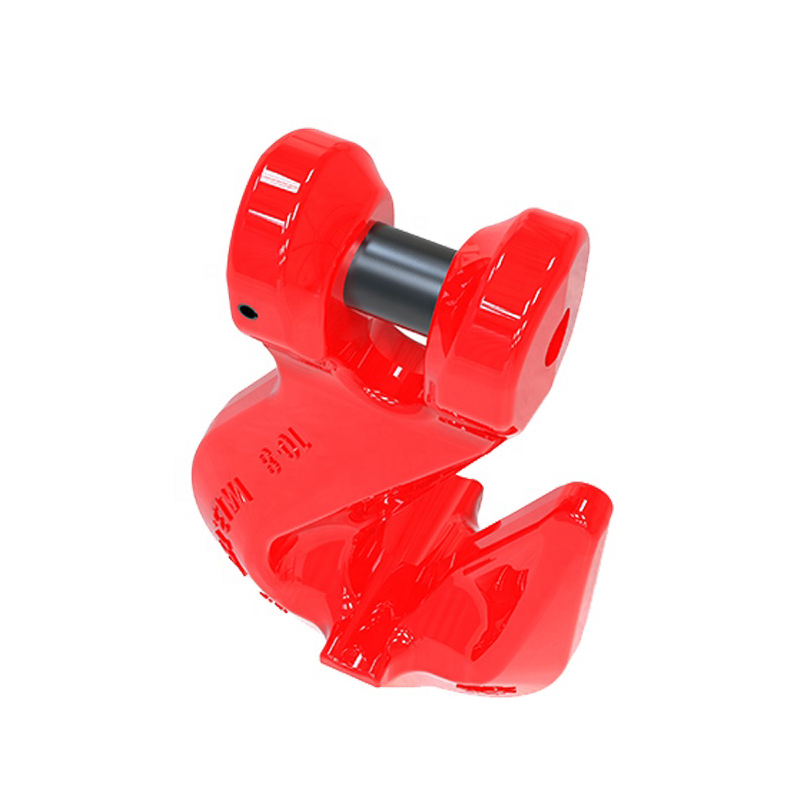

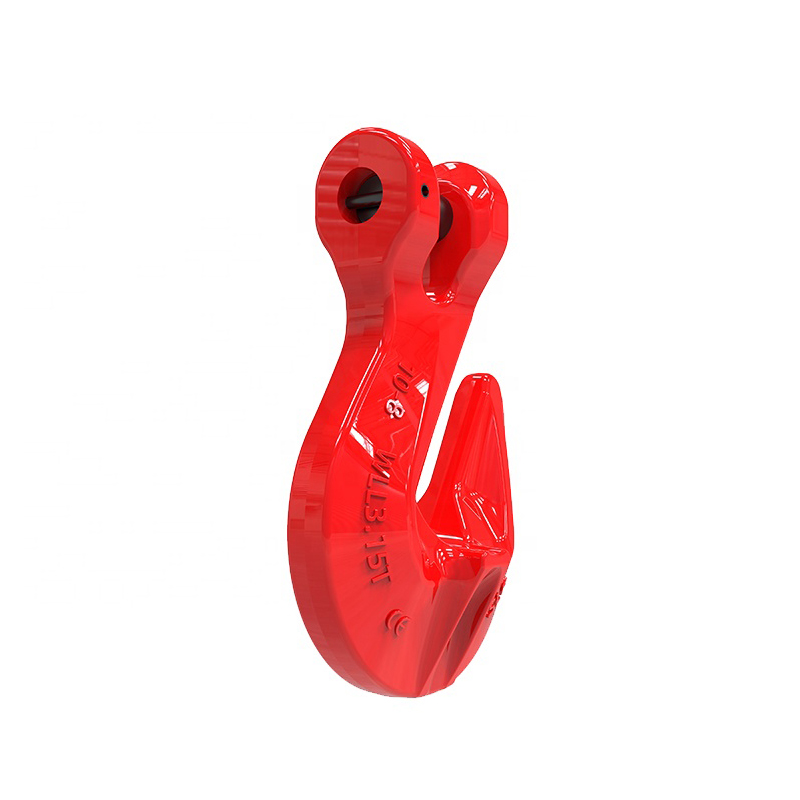

Grade 80 Clevis Grab HookDesigned to be attach directly to a length of chain via the engineered clevis headThis engineered head prevents hook to chain mismatchGrade 80 alloy steel4:1 design factorTough powder coat finishNo reduction in working load limit due to the chain supporting (saddle) in the bowl of the hookReplacement parts always availableProof tested and certified
| FOR CHAIN SIZE | WORKING LOAD LIMIT (lbs.) | A (in) | B (in) | C (in) | G (in) | H (in) | R (in) | PxL | WEIGHT (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 9/32-5/16″ | 4,500 | 0.39 | 0.35 | 0.39 | 1.18 | 0.94 | 1.97 | 0.35×0.89 | 0.6 |
| 3/8″ | 7,100 | 0.51 | 0.51 | 0.55 | 1.73 | 1.22 | 2.83 | 0.51×1.24 | 1.65 |
| 1/2″ | 12,000 | 0.67 | 0.67 | 0.67 | 2.09 | 1.5 | 3.46 | 0.63×1.65 | 2.97 |
| 5/8″ | 18,100 | 0.79 | 0.83 | 0.79 | 2.52 | 2.36 | 4.37 | 0.83×2.03 | 6.16 |
| 3/4″ | 28,300 | 0.94 | 0.94 | 0.94 | 3.35 | 2.56 | 5.12 | 0.94×2.42 | 10.56 |
| 7/8″ | 34,200 | 1.02 | 1.02 | 1.02 | 3.43 | 2.68 | 5.47 | 1.02×2.83 | 12.43 |
Name: Grade 80 Clevis Grab Hook
Package: Carton + Steel Pallet
