Grade 100 Swivel Safety Locking HookTough Powder Coat Finish4:1 Design FactorProof TestedEmbossed with Grade & SizeDesigned for General Purpose LiftingThe Hook Automatically Closes and Locks Under LoadSwivels for Hook Positioning Only Not Designed to Swivel Under LoadSpare Parts Always Available
| Reference Number? | Working Load Limit | For Grade 100 Chain in. | Dimensions (inch)Weight lbs. | Weight Ea. | ||||||
| e | h | a | w | w1 | d2 | g | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| WH70 | 5,700 | 9/32-5/16″ | 7.13 | 1.02 | 0.79 | 1.38 | 1.38 | 0.51 | 1.34 | 2.43 |
| WH100 | 8,800 | 3/8″ | 8.58 | 1.18 | 1.14 | 1.65 | 1.57 | 0.63 | 1.77 | 4.41 |
| WH130 | 15,000 | 1/2″ | 10.59 | 1.57 | 1.38 | 1.93 | 1.85 | 0.79 | 2.05 | 8.82 |
| WH160 | 22,600 | 5/8″ | 12.56 | 1.97 | 1.61 | 2.36 | 2.36 | 0.94 | 2.36 | 14.99 |

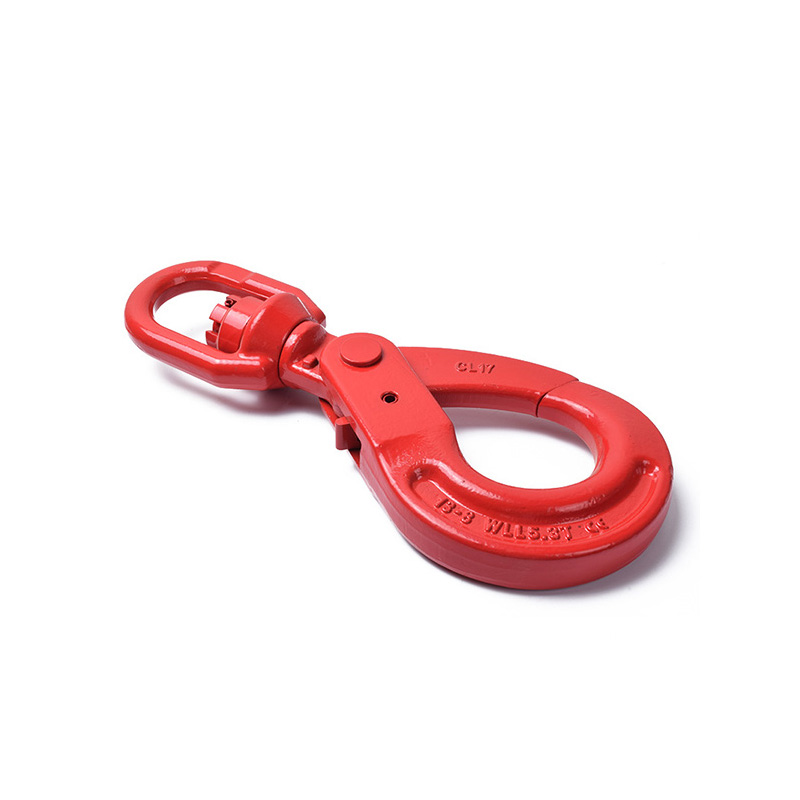

Name: Grade 100 Swivel Safety Locking Hook
Package: Carton + Steel Pallet
