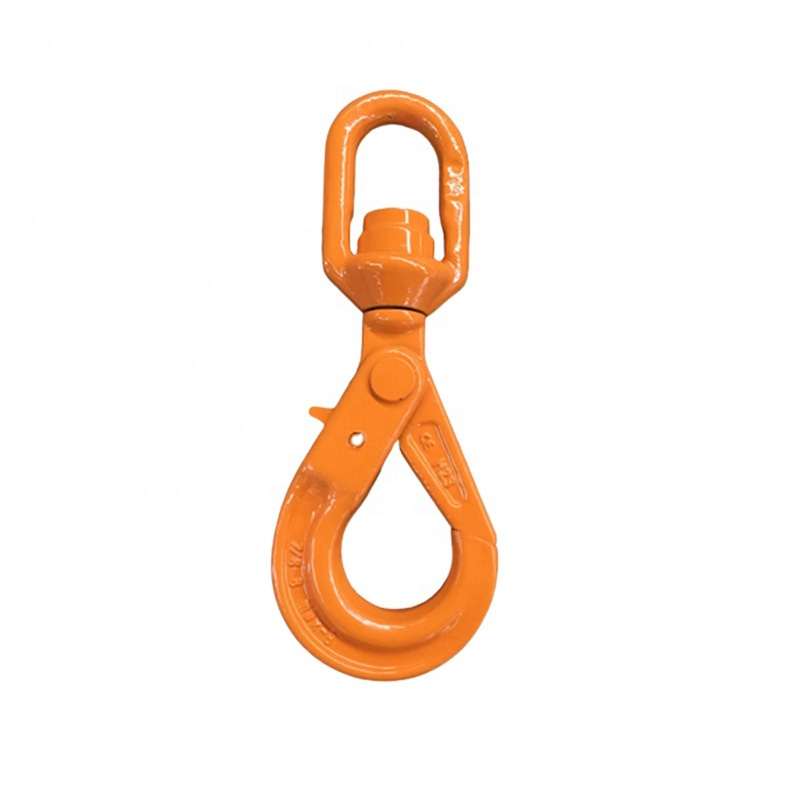

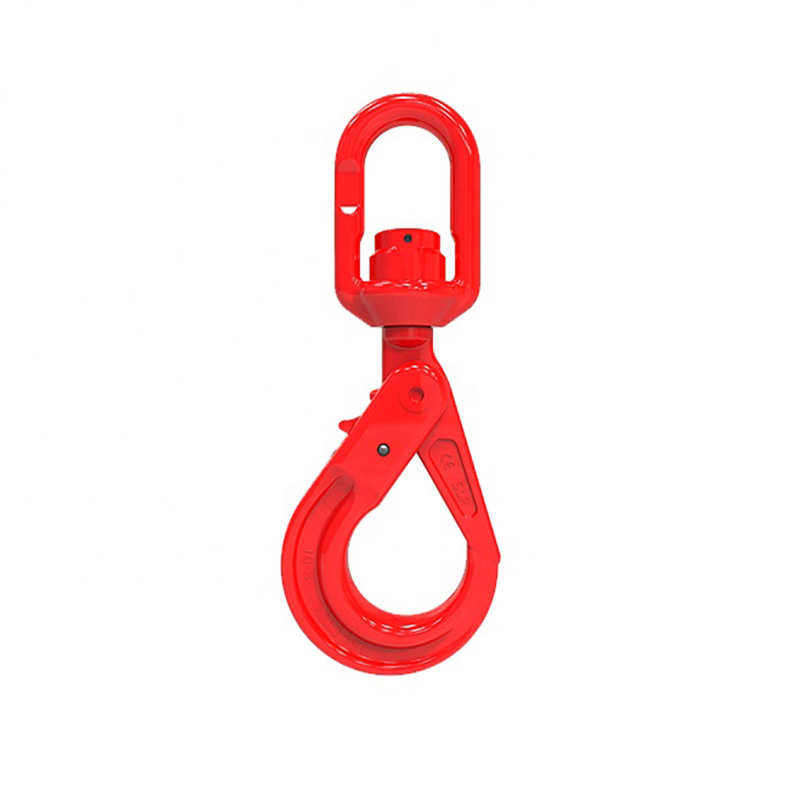

Grade 100 Swivel Grip Safe Locking HookManufactured in accordance with EN 1677- 1.Testing according to ASTM A952/A-DIN PAS 1061.Proof Load tested at 2.5 times the WLL withcertification for each batch manufactured.Design Factor 4:1.Fatigue rated to 20,000 cycles at 1.5 times the WLL.Tempering temperature minimum 400°CBuilt with ball bearing and enables full swivel feature under load.
| Working Load Limit | For Grade 100 Chain in. | Dimensions (inch) | Weight lbs. | |||||||||
| lbs. | tons | A | B | D | H | K | O | P | T | W | ||
| 8,800 | 4.0 | 3/8 | 1.61 | 1.34 | 0.63 | 1.22 | 8.86 | 1.93 | 2.80 | 1.06 | 5.47 | 5.3 |
| 15,000 | 6.7 | 1/2 | 1.81 | 1.73 | 0.83 | 1.54 | 11.22 | 2.24 | 3.15 | 1.34 | 6.85 | 11.4 |
| 22,600 | 10.0 | 5/8 | 2.40 | 1.97 | 0.91 | 1.85 | 13.58 | 3.07 | 4.49 | 1.54 | 8.35 | 18.5 |
| 35,300 | 16.0 | 3/4 | 2.91 | 3.23 | 0.98 | 2.20 | 17.05 | 3.58 | 5.00 | 2.13 | 9.84 | 31.9 |
| 42,700 | 19.0 | 7/8 | 3.82 | 3.74 | 1.30 | 2.32 | 18.70 | 4.13 | 5.94 | 2.20 | 10.24 | 43.8 |
Name: Grade 100 Swivel Grip Safe Locking Hook
Package: Carton + Steel Pallet
