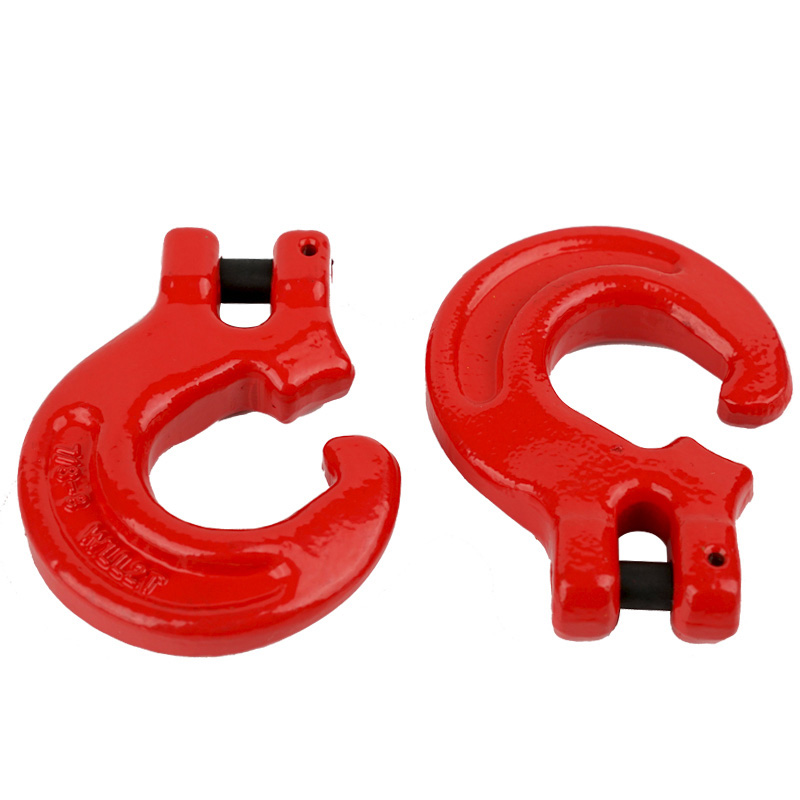

Grade 100 Clevis Foundry HookQuenched and Tempered Alloy Steel.At least 25% greater WLL than traditional G80 products.Testing according to DIN PAS 1061 and ASTM A952/A 952MDesign Factor 4:1.Fatigue rated to 20,000 cycles at 1.5 times the WLL.Tempering temperature minimum 400°CDesigned for the assembly of chain slingswhere wide throat openings are necessary.Before using the hook, check whether hooks without safetylatches are allowed to be used for the particular application.
| Working Load Limit | Dimensions (inch) | Weight (lbs) | |||||
| lbs* | tons* | A | H | K | P | T | |
|---|---|---|---|---|---|---|---|
| 5,700 | 2.5 | 0.35 | 1.06 | 5.24 | 2.44 | 0.75 | 2.1 |
| 8,800 | 4.0 | 0.43 | 1.26 | 6.42 | 2.91 | 0.91 | 4.0 |
| 15,000 | 6.7 | 0.55 | 1.54 | 7.87 | 3.46 | 1.26 | 7.9 |
| 22,600 | 10 | 0.71 | 1.85 | 9.41 | 3.86 | 1.61 | 14.1 |
| 35，300 | 16 | 0.83 | 2.44 | 12.01 | 4.45 | 1.81 | 24.6 |
Name: Grade 100 Clevis Foundry Hook
Package: Carton + Steel Pallet
