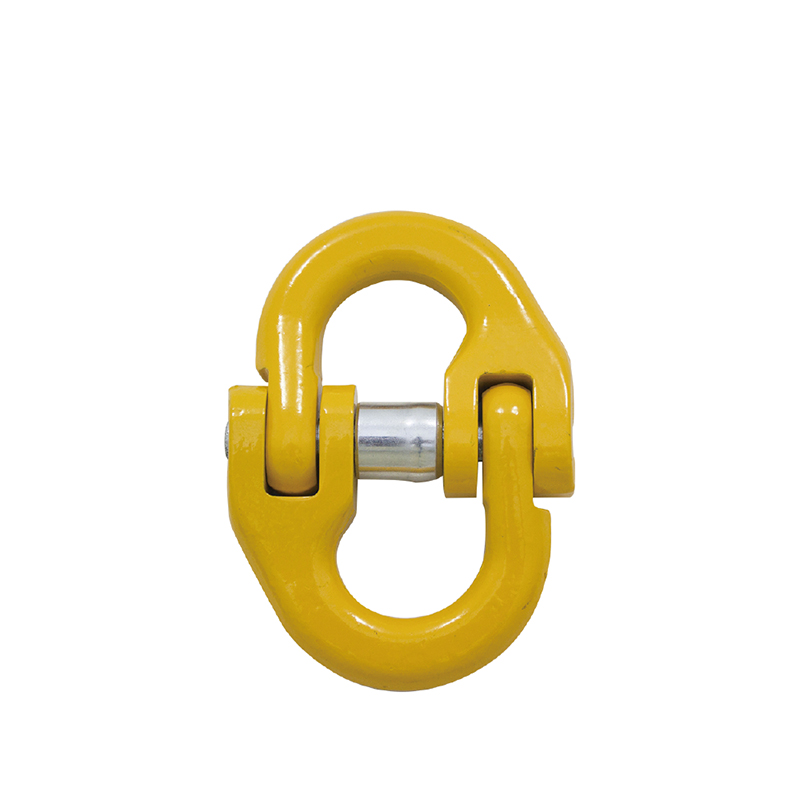

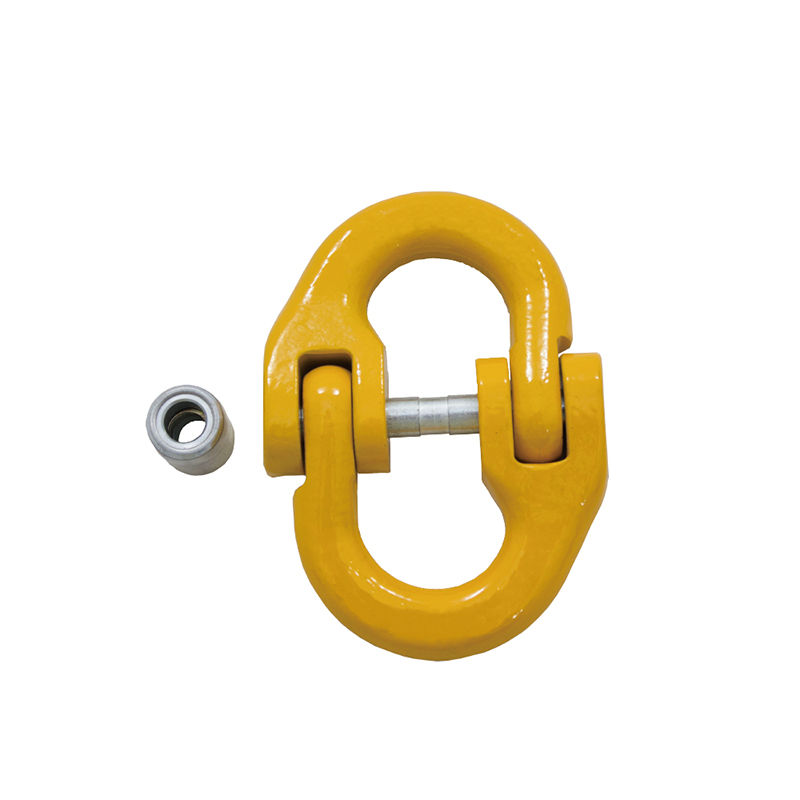

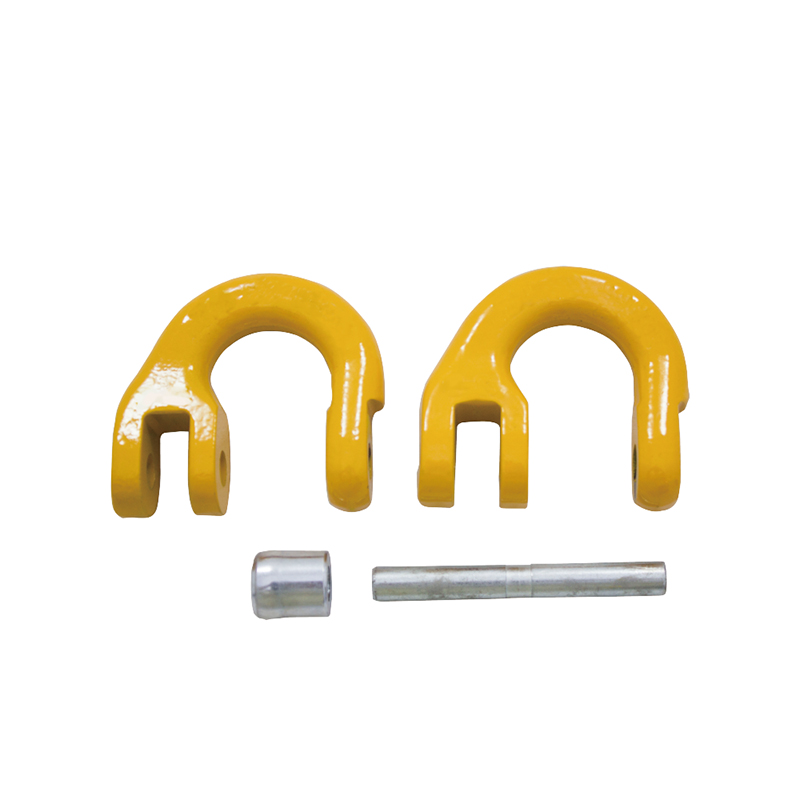

Grade 80 Coupling LinkDesigned to connect same size chain and accessories togetherGrade 80 alloy steel4:1 design factorTough powder coat finishHeavy Duty retaining collarEasy (hammer together) assemblyReplacement parts always availableProof tested and certified
| FOR CHAIN | WORKING LOAD LIMIT | A (in) | C (in) | O (in) | R (in) | P (in) | S (in) | WEIGHT (lbs) |
|---|---|---|---|---|---|---|---|---|
| 7/32″ | 2,700 | 0.63 | 0.71 | 0.65 | 1.69 | 0.28 | 0.27 | 0.15 |
| 9/32″ | 3,500 | 0.73 | 0.79 | 0.79 | 1.93 | 0.33 | 0.3 | 0.22 |
| 5/16″ | 4,500 | 0.89 | 1.02 | 0.98 | 2.75 | 0.37 | 0.35 | 0.55 |
| 3/8″ | 7,100 | 0.98 | 1.26 | 1.06 | 3.03 | 0.47 | 0.43 | 0.77 |
| 1/2″ | 12,000 | 1.18 | 1.38 | 1.26 | 3.35 | 0.61 | 0.61 | 1.5 |
| 5/8″ | 18,100 | 1.3 | 1.57 | 1.54 | 4.05 | 0.83 | 0.83 | 2.42 |
| 3/4″ | 28,300 | 1.73 | 1.89 | 1.85 | 4.57 | 0.91 | 0.91 | 3.74 |
| 7/8″ | 34,200 | 1.93 | 2 | 2.17 | 5.24 | 1.04 | 1.04 | 4.84 |
| 1″ | 47,700 | 2.36 | 2.36 | 2.6 | 5.82 | 1.24 | 1.24 | 9.24 |
| 1-1/4″ | 72,300 | 2.64 | 2.72 | 3.11 | 7.2 | 1.46 | 1.46 | 15.82 |
Name: Grade 80 Coupling Link
Package: Carton + Steel Pallet
