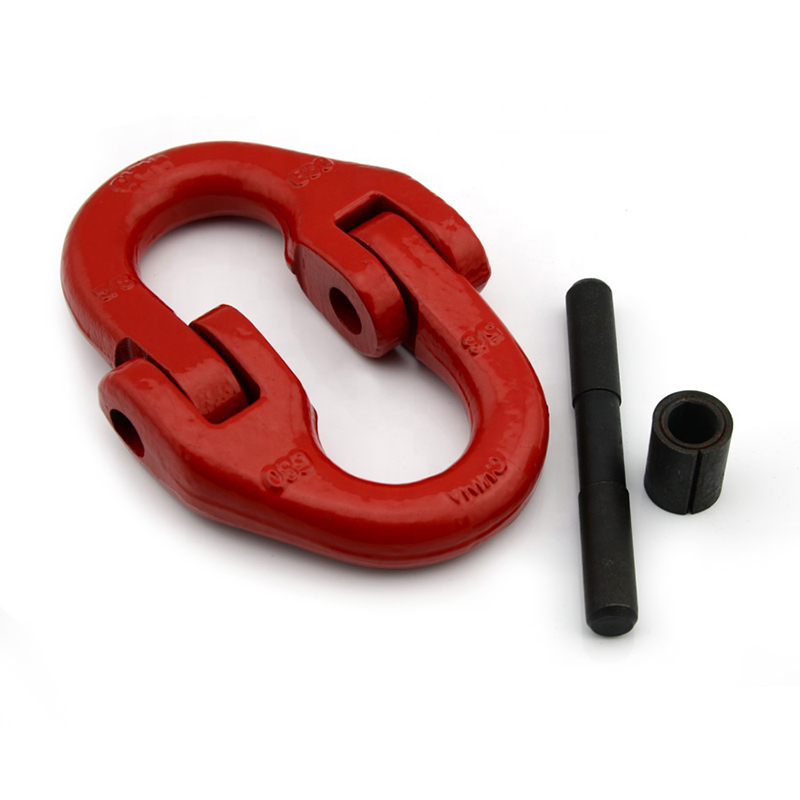

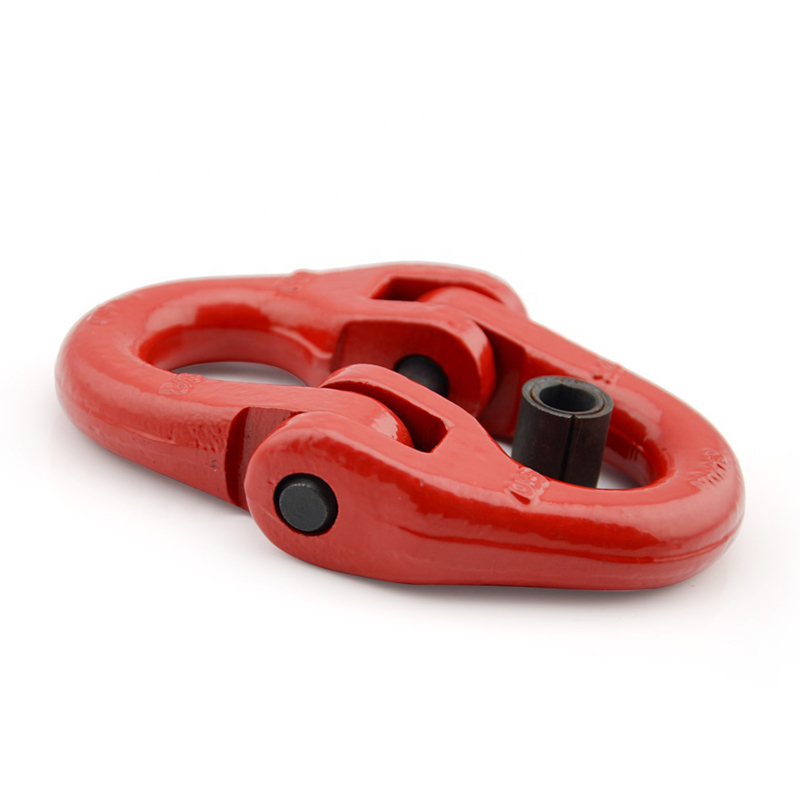

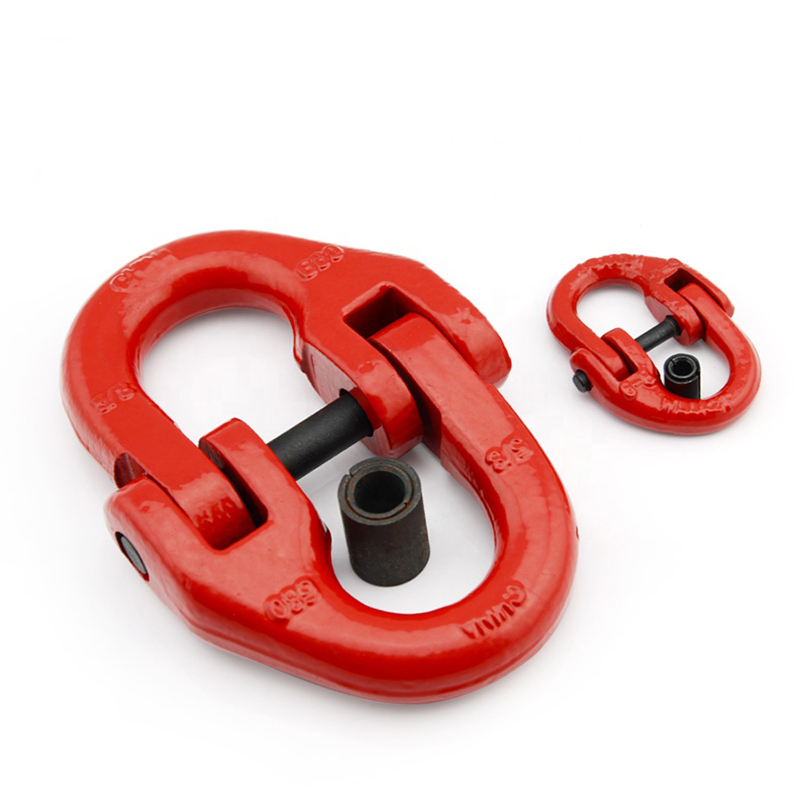

Grade 80 Coupling LinkDesigned to connect same size chain and accessories togetherGrade 80 alloy steel4:1 design factorTough powder coat finishHeavy Duty retaining collarEasy (hammer together) assemblyReplacement parts always availableProof tested and certified
| Working Load Limit | For Grade 80 Chain | Dimensions (inch) | Weight (lbs) | ||||
| Lbs. * | tonnes* | INCH | K | A | D | B | |
| 4,500 | 2.0 | 1/4 – 5/16 | 2.25 | 0.71 | 0.35 | 0.89 | 0.4 |
| 7,100 | 3.15 | 3/8 | 2.68 | 0.99 | 0.50 | 1.06 | 0.7 |
| 12,000 | 5.3 | 1/2 | 3.58 | 1.19 | 0.62 | 1.38 | 1.5 |
| 18,100 | 8.0 | 5/8 | 3.94 | 1.42 | 0.75 | 1.51 | 2.4 |
| 28,300 | 12.5 | 3/4 | 4.80 | 1.65 | 0.87 | 1.81 | 4.2 |
| 34,200 | 15.0 | 7/8 | 5.98 | 1.93 | 0.94 | 2.32 | 6.6 |
| 47,700 | 21.2 | 1 | 6.38 | 2.17 | 1.19 | 2.44 | 10.4 |
| 72,300 | 31.5 | 1-1/4 | 7.96 | 2.72 | 1.42 | 3.11 | 19.4 |
Name: Grade 80 Coupling Link
Package: Carton + Steel Pallet
