DIN5685 link chain,also named DIN5685 round link chain, is manufactured as per Germany standard.It includes DIN5685 short link chain, DIN5685 long link chain. The high strength weld, on the smaller sizes, means high break loads.

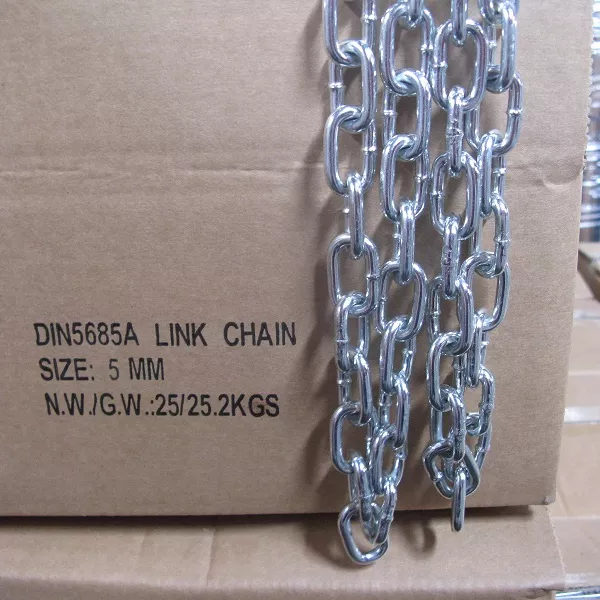

DIN 5685 link chain
Material: carbon steel Q235&Q195, high carbon steel, manganese steel, CM490, super carbon steel.
Surface treatment: primary color, electro-galvanizing, hot-dip galvanizing, blackening, plastic spraying, dipping paint, etc.
Packing: sacks, wrapping wheels, plastic drums, iron drums, wooden boxes, cartons, etc.
Welded Chain.
Not for overload lifting.

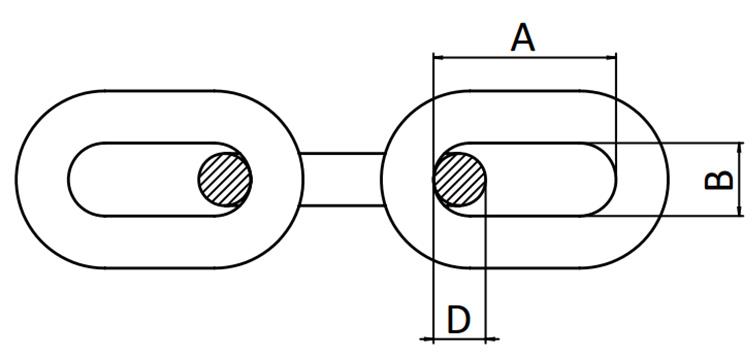

SIZE | INSIDE LENGTH | OUTSIDE WIDTH | WEIGHT PER 100M | WORKING LOAD | BREAKING LOAD | GRADE |
MM | MM | MM | KG | N | N | |
2 | 12 | 8 | 7 | 500 | 1250 | A |
22 | 6 | C | ||||
2.5 | 14 | 10 | 11 | 750 | 2000 | A |
24 | 10 | C | ||||
3 | 16 | 12 | 16.5 | 1120 | 2800 | A |
26 | 15 | C | ||||
4 | 19 | 16 | 30 | 2000 | 5000 | A |
32 | 27 | C | ||||
5 | 21 | 20 | 50 | 3150 | 7750 | A |
35 | 43 | C | ||||
6 | 24 | 24 | 73 | 4500 | 11500 | A |
42 | 63 | C | ||||
7 | 28 | 28 | 100 | 6000 | 15000 | A |
49 | 86 | C | ||||
8 | 32 | 32 | 130 | 8000 | 20000 | A |
52 | 110 | C | ||||
9 | 36 | 36 | 165 | 10000 | 25000 | A |
59 | 141 | C | ||||
10 | 40 | 40 | 205 | 12500 | 31000 | A |
65 | 175 | C | ||||
11 | 44 | 44 | 250 | 15000 | 38000 | A |
72 | 211 | C | ||||
12 | 48 | 48 | 290 | 18000 | 45000 | A |
78 | 255 | C | ||||
13 | 52 | 52 | 345 | 21200 | 53000 | A |
82 | 295 | C |
DIN chain, also known as German standard chain, can be divided into the following standards, DIN 766 chain (short link chain), DIN 764 chain (medium link chain), DIN 763 chain (long link chain), DIN 5685 chain, DIN 22252 chain
