There are several benefits to using DIN 22252 chain in industrial applications. Here are some of the key advantages:
Strength and durability: DIN 22252 chain is made of high-quality alloy steel, which provides excellent tensile strength and corrosion resistance. This makes it ideal for use in heavy-duty applications that require a strong and durable chain.
Resistance to wear and tear: The DIN 22252 chain is designed to resist wear and tear, even under heavy use. This helps to extend the lifespan of the chain, reducing maintenance and replacement costs.
Versatility: DIN 22252 chain is available in a variety of sizes and configurations, making it suitable for use in a wide range of industrial applications. It can be used for conveying heavy loads, lifting and hoisting equipment, and more.
Precision engineering: DIN 22252 chain is manufactured to strict specifications, ensuring precise dimensions and consistent quality. This helps to ensure reliable performance and reduces the risk of chain failure.
Compatibility with other components: The DIN 22252 chain is designed to work seamlessly with other components, such as sprockets and attachments, to form a complete chain drive system. This makes it easy to integrate into existing machinery and equipment.
DIN 22252 Round Link Chain is used for Armored Face Conveyors (AFC), Beam Stage Loaders (BSL), road header machines, coal plows and other equipment that requires this type of chain.

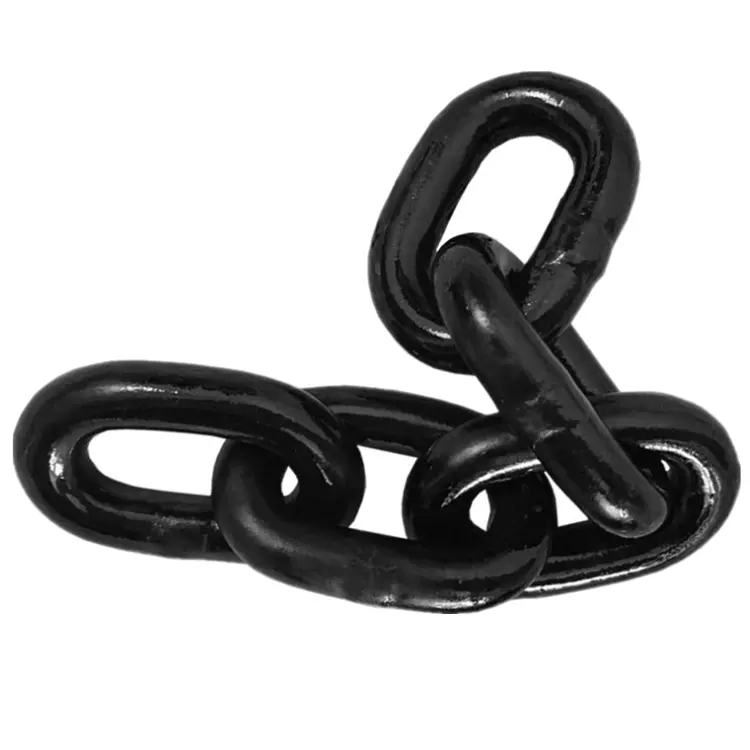

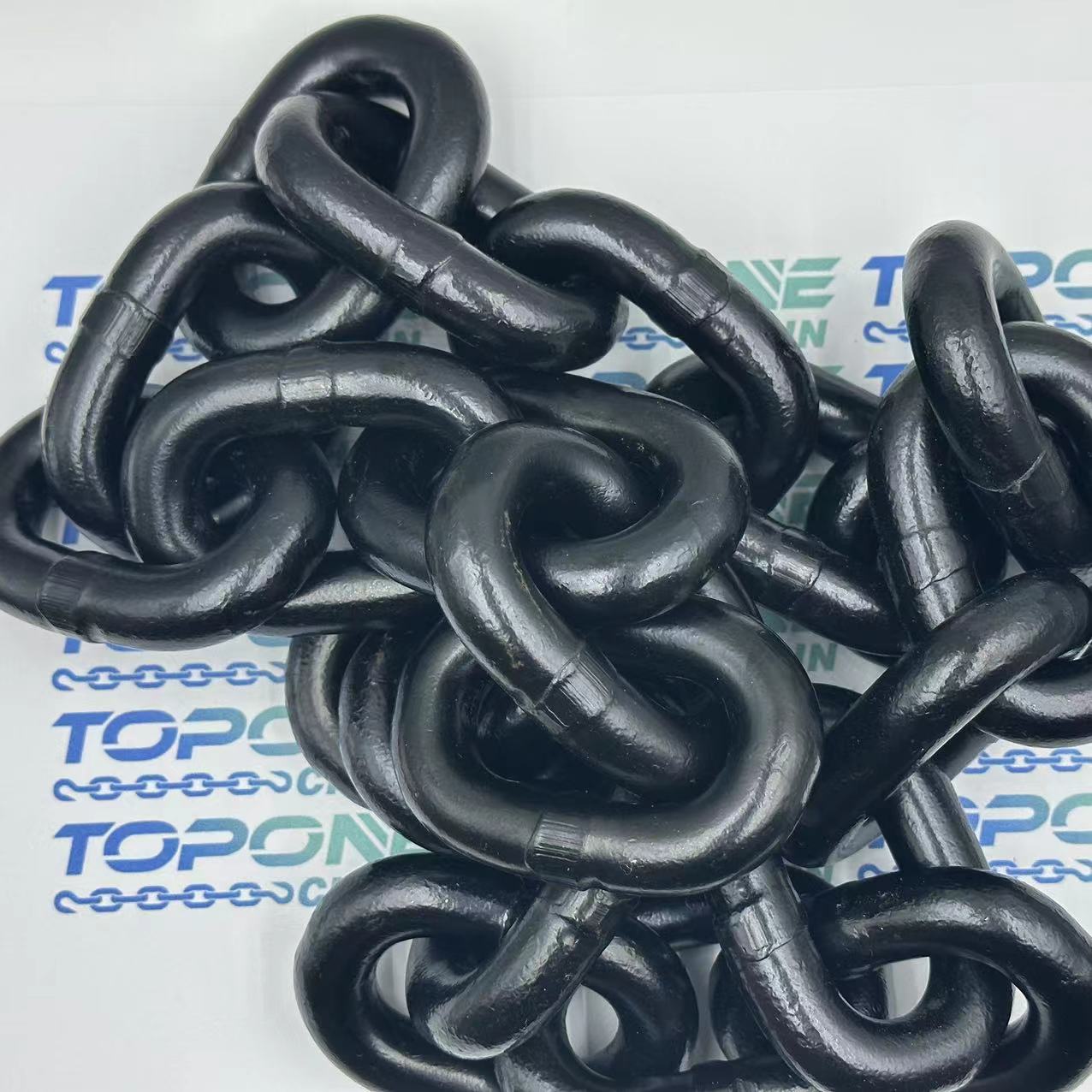

DIN 22252 mining chain
Round link chain, round steel link chain, round link mining chain, DIN 22252 mining chain, mining conveyor chain, flight bar chain system
DIN 22252 chain is a type of chain commonly used in industrial applications. It is designed and manufactured in accordance with the German standard DIN 22252, which specifies the dimensions, materials, and other characteristics of the chain.
The DIN 22252 chain is known for its strength, durability, and resistance to wear and tear. It is typically made of high-quality alloy steel, which provides excellent tensile strength and corrosion resistance.
This type of chain is used in a wide range of applications, including mining, construction, and heavy machinery. It is often used for conveying heavy loads, such as in conveyor systems, or for lifting and hoisting equipment.
The DIN 22252 chain is available in a variety of sizes and configurations to meet different application requirements. It is typically assembled with other components, such as sprockets and attachments, to form a complete chain drive system.
Material: carbon steel high carbon steel, manganese steel,20MN2 steel,25mnV steel
Chain treatment process: heat treatment, carburizing, blackening, electrophoresis, shot blasting
DIN chain, also known as German standard chain, can be divided into the following standards, DIN 766 chain (short link chain), DIN 764 chain (medium link chain), DIN 763 chain (long link chain), DIN 5685 chain, DIN 22252 chain

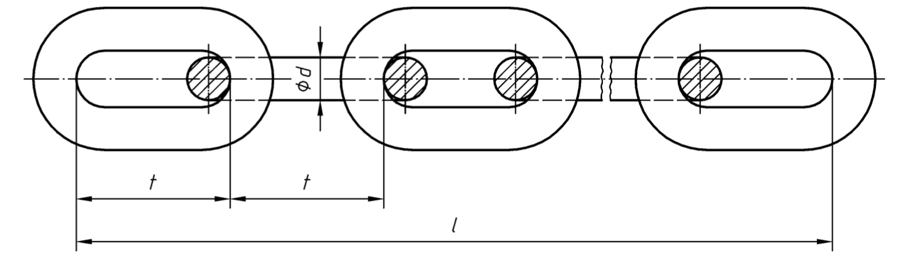

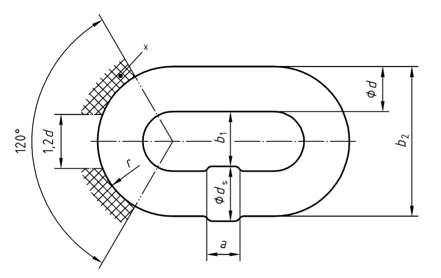

| link size (opp. Weld) | pitch | link width | link weld size | unit weight | ||||
| d (mm) | t (mm) | (mm) | (mm) | kg/m (~) | ||||
| nominal | tolerance | nominal | tolerance | inner | outer | diameter | length | |
| b1 (min.) | b2 (max.) | d1 (max.) | e | |||||
| 10 | ± 0.4 | 40 | ±0.5 | 12 | 34 | 10.8 | 7.1 | 1.9 |
| 14 | ± 0.4 | 50 | ±0.5 | 17 | 48 | 15 | 10 | 4 |
| 18 | ± 0.5 | 64 | ±0.6 | 21 | 60 | 19.5 | 13 | 6.6 |
| 19 | ± 0.6 | 64.5 | ±0.6 | 22 | 63 | 20 | 13 | 7.4 |
| 22 | ± 0.7 | 86 | ±0.9 | 26 | 74 | 23.5 | 15.5 | 9.5 |
| 24 | ± 0.8 | 86 | ±0.9 | 28 | 79 | 26 | 17 | 11.6 |
| 26 | ± 0.8 | 92 | ±0.9 | 30 | 86 | 28 | 18 | 13.7 |
| 30 | ± 0.9 | 108 | ±1.1 | 34 | 98 | 32.5 | 21 | 18 |
| 34 | ± 1.0 | 126 | ±1.3 | 38 | 109 | 36.5 | 23.8 | 22.7 |
| 38 | ± 1.1 | 126 | ±1.3 | 42 | 121 | 41 | 27 | 30.1 |
| 38 | ± 1.1 | 137 | ±1.4 | 42 | 121 | 41 | 27 | 29 |
| 42 | ± 1.3 | 137 | ±1.4 | 48 | 137 | 45 | 30 | 36.9 |
| 42 | ± 1.3 | 146 | ±1.5 | 48 | 137 | 45 | 30 | 36 |
| 42 | ± 1.3 | 152 | ±1.5 | 46 | 133 | 45 | 30 | 35.3 |
| notes: Larger size chain available upon inquiry. | ||||||||
| Link size (d) to be measured at link straight opposite link weld. | ||||||||
| Link width (b1 & b2) to be measured off the link weld. | ||||||||
