Application scenarios:anchor chain,marine hardware windproof bean bag ashtray,boat fishing rod holder accessories,ladder extension,boat ladder,boat boarding ladder,boarding ladder,marine steering wheel,steering wheel,boat steering wheel,Marine hardware; Deck hardware.Led navigation light,boat accessories ,marine yacht accessories
DIN766 SHORT LINK CHAIN:
| Size | Inside Length | Inside Width | Outside Width | Length Per 11 Links | Weight Per M | |||||
| MM | ±MM | MM | +MM | -MM | MM | MM | MM | +MM | -MM | KG |
| 2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1.0 | 0.5 | 0.07 |
| 3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16 |
| 4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.7 | 176 | 2.1 | 1.1 | 0.32 |
| 5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 0.5 |
| 6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8 |
| 7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3.0 | 1.4 | 1.1 |
| 8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4 |
| 9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8 |
| 10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 2.2 |
| 11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4.0 | 2.0 | 2.7 |
| 12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.10 |
| 13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 3.8 |
| 14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4 |
| 16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6.0 | 3.0 | 5.7 |
| 18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3 |
| 19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 | 7.97 |
| 20 | 1.0 | 56 | 1.0 | 0.5 | 24.0 | 68.0 | 616 | 7.4 | 3.7 | 9.0 |
| 22 | 1.2 | 62 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 | 11.0 |
| 23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12 |
| 26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15 |

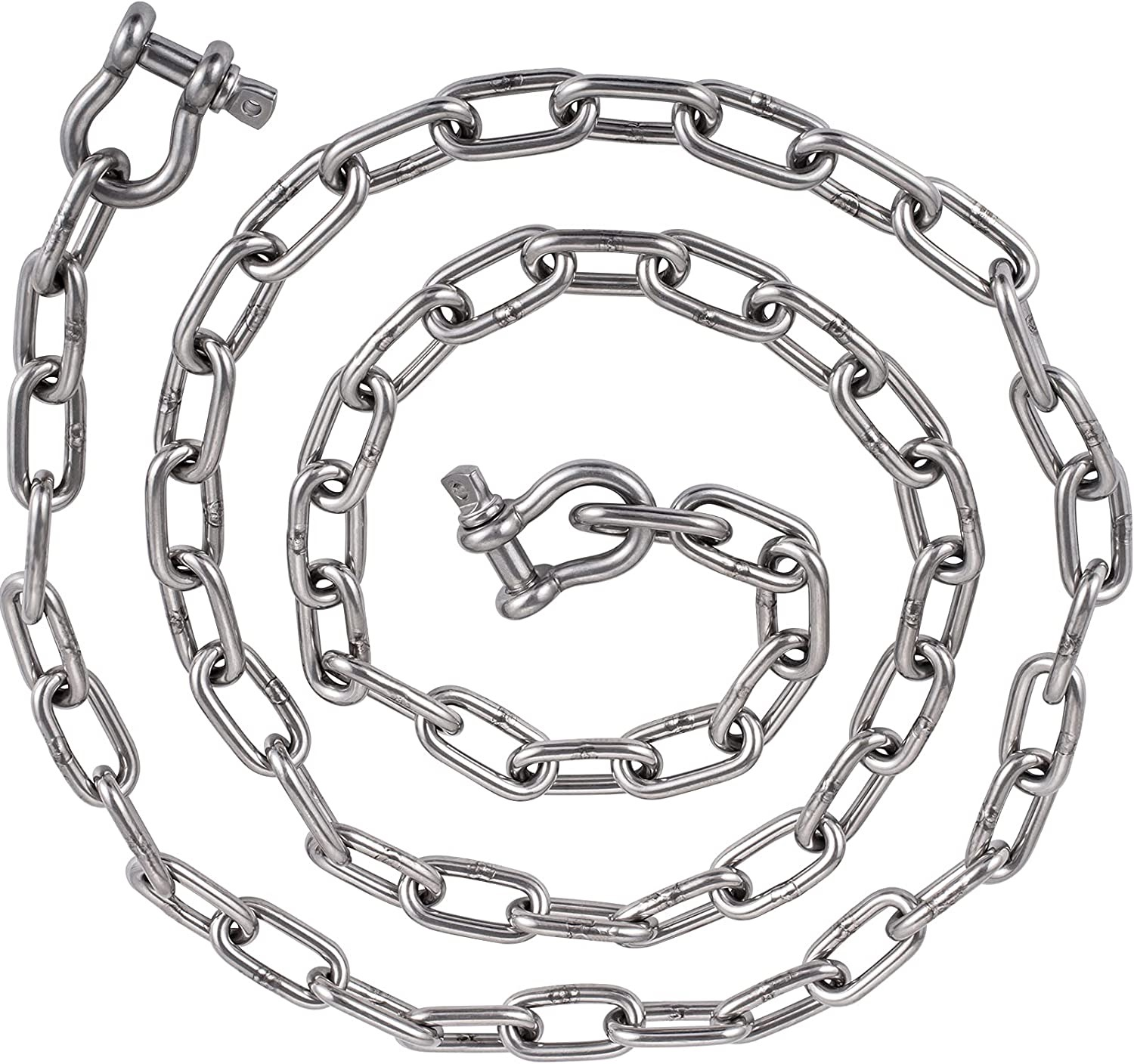

Marine Hardware 316 304 Stainless Steel DIN766 Anchor Link Chains For Boat
Product detail
Product Name | anchor chain |
Material | 316 stainless steel |
Main Items | anchor chain,bearing protectors ,marine hardware windproof bean bag ashtray,mushroom anchor,boat fishing rod holder accessories,boat oval boat handrail hardware,oval boat handrail hardware,boat swim ladder,boat ladder extension,boat ladder,boarding ladder,boat steering wheel accessories,marine steering wheel,car steering wheel,Boat Stern Light ,led underwater light strip,spring loaded flush lift handle,boat hatch lock,underwater led light strip,dome light,Led navigation light,quick release battery terminal,Dual power outlet,Bow chock; Cleat; Hinge; Pipe bases; Deck filler; Bow roller Marine Lamp and so on. |
Brand | TopOne Chain |
Working Load | 1400KG |
Supplier Per | 50m |
Application | anchor chain,marine hardware windproof bean bag ashtray,boat fishing rod holder accessories,ladder extension,boat ladder,boat boarding ladder,boarding ladder,marine steering wheel,steering wheel,boat steering wheel,Marine hardware; Deck hardware.Led navigation light,boat accessories ,marine yacht accessories |
Technology | Precision Cast |
Note | Special specifications and marks can be made according to customers requirements. |
