Hall Anchor close left right

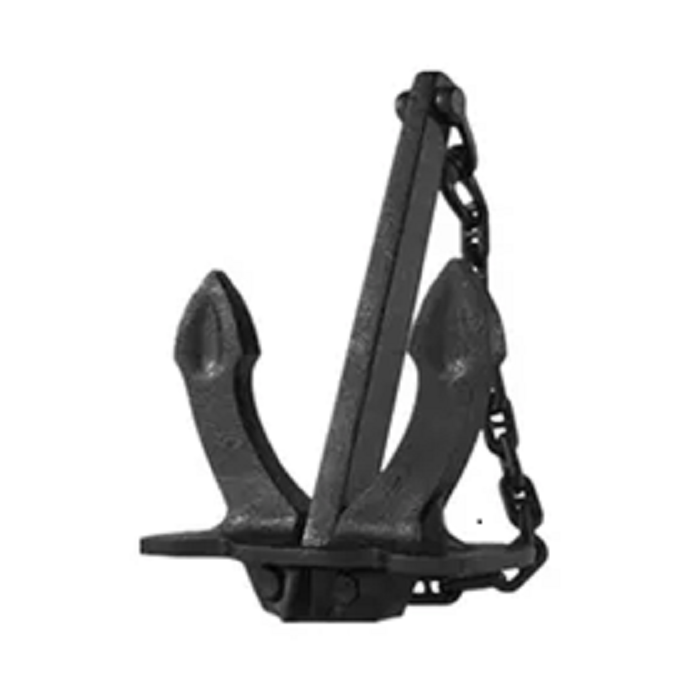

Hall Anchor

A folded anchor is releasable supported on a munition by shear pins through its shank. The anchor's spring loaded stock and arms are extended into their operative mode upon impact of the munition on the target area (water). The anchor is maintained in the folded condition by the locking action of fluke locks mounted on the stock. Spring action of a stock spring against a slider forces the stock to its fully opened position. The slider and link locks the stock into an open position so that it cannot collapse during the anchoring action.

  • Introduction
    Parameter

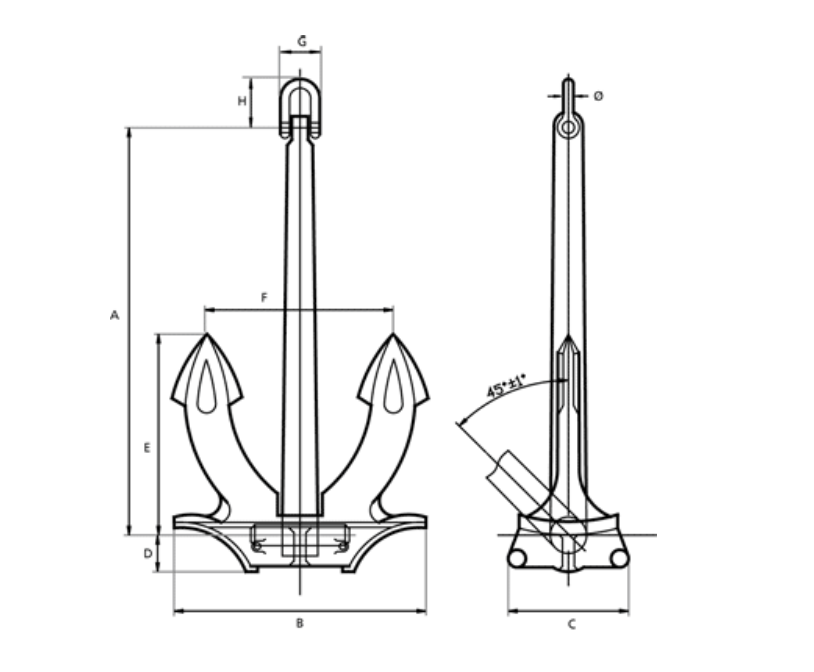

    WeightABCDEFGHø
    Kg mm mm mm mm mm mm mm mm mm
    10385270125421911915160 15
    1641031614649223223577216
    2547636716957259259748420
    3553341118964290290809822
    5059946421471325325809822
    65658505233783553558811524
    75690530244823743748811524
    100760582270904104108811524
    1258146292909744344310013028
    15086667030810347047010013028
    20095273533911451851811314532
    22098275935011753453411314532
    250101978436112155255212516036
    300109584438813059559513917540
    360116089841213863063013917540
    420125596744414967567515219245
    4801300100046015470070016721548
    5701380106049016474574516721548
    6601422109650616976976917523550
    7001453111951617278478417523550
    7801506116053517881381317523550
    9001580122056018885585518325550


    Standards
