Trade Size
Chain Diameter
Inside Link Dimensions
Working Load Limit (WLL)
Length per Drum
Weight per Foot

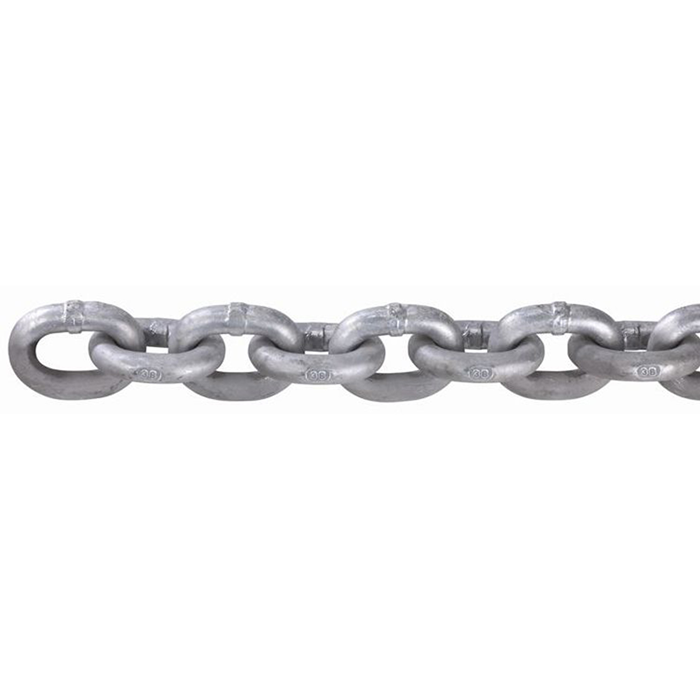

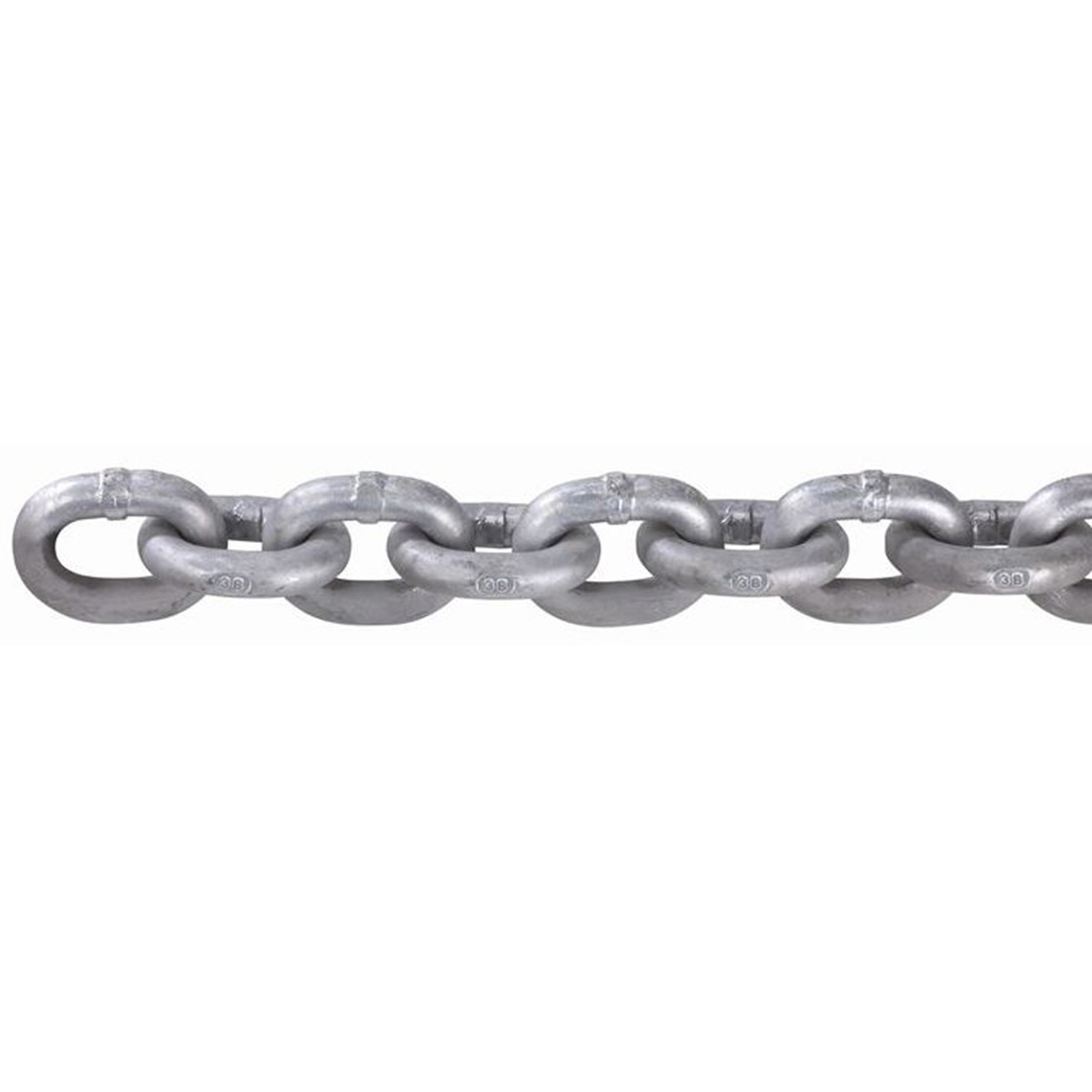

BBB Windlass Chain is manufactured from low carbon welded steel with a short link configuration for marine anchoring and windlass systems. The short pitch design provides smooth engagement with BBB windlass gypsies and reduces chain twisting during deployment and retrieval. Standard trade sizes range from 1/4 in. (7 mm) to 1/2 in. (13 mm). Each chain is proof tested to 2 times the Working Load Limit (WLL) and supplied in standard drum lengths for marine and recreational anchoring applications.
BBB Windlass Chain is a short link welded chain designed for anchor windlass systems on recreational boats, yachts, fishing vessels, and small commercial craft. The chain dimensions comply with the BBB chain profile, allowing accurate engagement with matching windlass gypsies and smooth operation during anchoring.
Manufactured from low carbon steel, the chain is available in sizes from 1/4 in. (7 mm) to 1/2 in. (13 mm). The compact link design improves flexibility, allows the chain to stow efficiently inside the chain locker, and reduces the possibility of twisting or jamming during operation. Standard finishes include hot-dip galvanized, self color, and black finish depending on service requirements.
Each chain is proof tested at 2 times the Working Load Limit (WLL) before shipment. The Minimum Breaking Load is typically 3 to 4 times the WLL, providing the safety margin required for normal anchoring operations. Every production batch is inspected for dimensions, weld quality, and mechanical performance to ensure product consistency and traceability.
Short link BBB chain construction
Low carbon welded steel
Trade sizes from 1/4 in. to 1/2 in.
Proof tested to 2 × WLL
Minimum breaking load typically 3–4 × WLL
Compatible with BBB windlass gypsies
Available in galvanized, black, or self-color finish

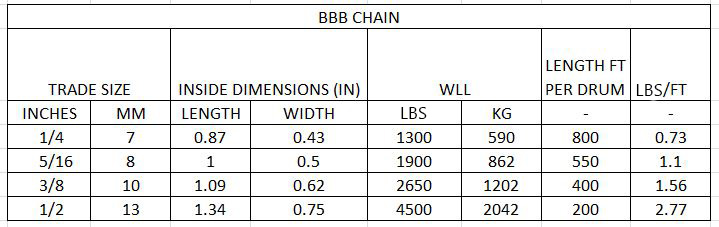

| Trade Size (in.) | Diameter (mm) | Inside Length (in.) | Inside Width (in.) | WLL (lbs) | WLL (kg) | Length per Drum (ft) | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| 1/4 | 7 | 0.87 | 0.43 | 1,300 | 590 | 800 | 0.73 |
| 5/16 | 8 | 1.00 | 0.50 | 1,900 | 862 | 550 | 1.10 |
| 3/8 | 10 | 1.09 | 0.62 | 2,650 | 1,202 | 400 | 1.56 |
| 1/2 | 13 | 1.34 | 0.75 | 4,500 | 2,042 | 200 | 2.76 |
Name: BBB Windlass Chain
MOQ: 100 Meters
Package: Steel Drum / Steel Pallet / Wooden Pallet
Manufacturing Standards: Manufactured from welded low carbon steel in accordance with applicable NACM, ASTM, ASME B30.26, OSHA 1910, and recognized marine anchor chain manufacturing requirements. Available with hot-dip galvanized, black, or self-color finishes for marine applications.
Testing Standards: Each chain is proof tested at 2 times the Working Load Limit (WLL), followed by visual inspection, dimensional verification, weld inspection, and mechanical property testing before shipment. The Minimum Breaking Load is typically 3 to 4 times the Working Load Limit. Batch inspection records and traceability documentation are available upon request.
Application Standards: Suitable for recreational boats, yachts, fishing vessels, workboats, small commercial vessels, anchor windlass systems, mooring applications, and general marine anchoring where BBB chain is specified.
Maintenance Standards: Inspect the chain regularly for corrosion, excessive wear, deformation, cracked welds, elongated links, damaged galvanized coating, and chain compatibility with the windlass gypsy. Replace any chain section showing wear beyond the recommended service limits to maintain safe anchoring performance.
