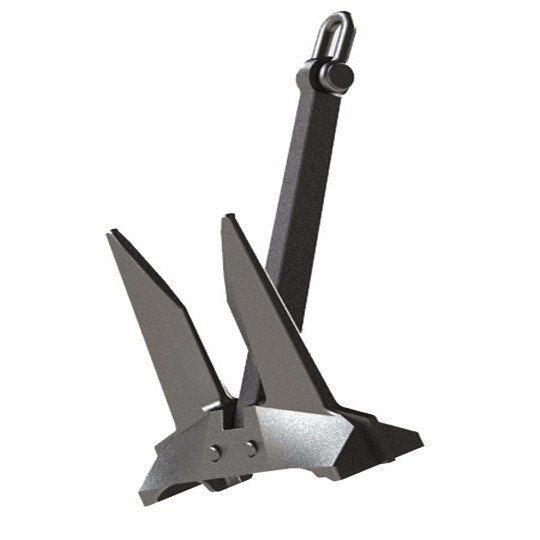

AC-14 High Holding Power (HHP) Anchor is a stockless anchor developed for vessels requiring increased holding capacity without increasing anchor weight. The anchor incorporates a wide crown, long flukes, and reinforced structural sections that allow the flukes to penetrate the seabed rapidly and develop a higher holding force in sand, clay, mud, and mixed seabed conditions.

The anchor is manufactured from marine-grade cast steel and undergoes casting, heat treatment, machining, dimensional inspection, proof load testing, and final assembly before shipment. Standard products are available from 75 kg to 30,000 kg, covering applications from workboats and tugboats to bulk carriers, container ships, tankers, offshore support vessels, and floating platforms.

As a High Holding Power (HHP) anchor, the AC-14 is recognized by major classification societies. Compared with conventional stockless anchors, an HHP anchor can normally be assigned 25% lower anchor weight for the same holding capacity, subject to the applicable classification society rules. The anchor is supplied with matching anchor chains, shackles, swivels, and other anchoring accessories to form a complete anchoring system.

Product Features

   High Holding Power (HHP) stockless design

   Nominal weights from 75 kg to 30,000 kg

   Marine-grade cast steel construction

   Compatible with stud link and studless anchor chains

   Suitable for sand, mud, clay, and mixed seabeds

   Available with hot-dip galvanized or painted finish

   Permanent identification and complete traceability

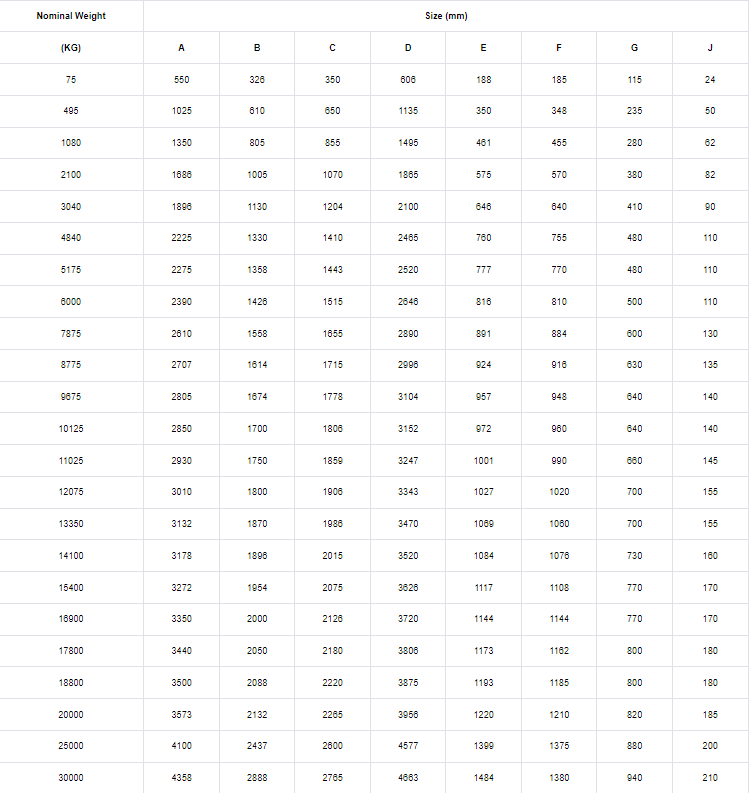

Nominal Weight

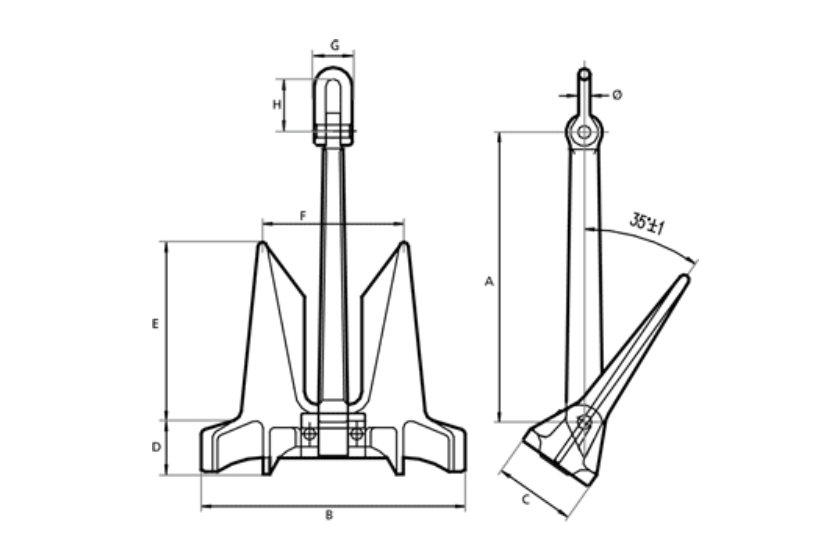

Overall Dimensions
Holding Power
Material Grade
Classification Approval
Surface Finish

AC-14 High Holding Power (HHP) Anchor is a stockless anchor designed for commercial ships, offshore vessels, and marine mooring systems. The anchor features a wide crown and enlarged flukes to achieve a holding power of at least twice that of a conventional stockless anchor under equivalent weight. Standard sizes range from 75 kg to 30,000 kg, with larger capacities available upon request. Manufactured from cast steel conforming to marine specifications, the anchor is available with approvals from ABS, BV, CCS, DNV, LR, NK, KR, RINA, and RS. Each anchor is supplied with permanent identification markings and full inspection documentation.
