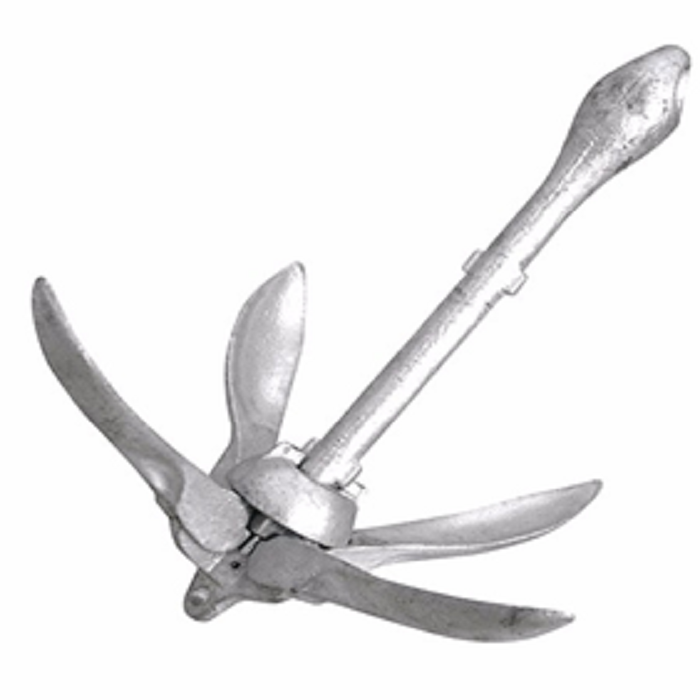

HDG Folding Anchor Type A is a four-fluke grapnel anchor manufactured for portable anchoring applications where storage space is limited. Unlike fixed-fluke anchors, the four anchor arms fold alongside the shank and are secured by a sliding locking collar during transport. Before use, the collar is released to allow the flukes to open into the working position, providing multiple contact points with the seabed.

The anchor is manufactured from welded carbon steel and finished by hot-dip galvanizing (HDG). During the galvanizing process, the steel is immersed in molten zinc at approximately 450°C, forming a metallurgical zinc coating that provides corrosion protection for marine service.

Standard products are available in weights from 0.7 kg to 12 kg, with custom sizes available for special applications. The anchor is commonly used on inflatable boats, dinghies, kayaks, canoes, personal watercraft, and small fishing boats. It performs effectively on sand, mud, gravel, weed, coral, and rocky bottoms, where the multiple flukes can engage irregular seabed surfaces.

Product Features

• Four-fluke folding grapnel design

• Hot-dip galvanized carbon steel construction

• Compact folding structure for onboard storage

• Sliding locking collar for quick deployment

• Weight range from 0.7 kg to 12 kg

• Suitable for freshwater and seawater use

• Available with anchor rope, chain, shackles, and swivels

Name: HDG Folding Anchor Type A

MOQ: 100 Pieces

Package: Carton / Wooden Crate / Steel Pallet

Manufacturing Standards: Manufactured from welded carbon steel in accordance with recognized marine fabrication practices and ISO 1461 requirements for hot-dip galvanized coatings. The anchor is designed for recreational marine anchoring and is available with customized dimensions and weights according to customer requirements.

Testing Standards: Each anchor undergoes dimensional inspection, weld inspection, visual inspection, hot-dip galvanized coating inspection, assembly verification, and functional opening/locking tests before shipment. Material certificates, coating inspection records, and production traceability are available upon request.

Application Standards: Suitable for inflatable boats, dinghies, kayaks, canoes, jet skis, personal watercraft, fishing boats, tenders, and small recreational vessels operating in freshwater and marine environments. The folding grapnel design is particularly suitable where compact storage and quick deployment are required.

Maintenance Standards: Inspect the anchor regularly for corrosion, bent flukes, damaged welds, locking collar wear, shank deformation, and coating damage. Rinse with fresh water after seawater use, lubricate the sliding collar when necessary, and replace the anchor if structural deformation or excessive corrosion is observed.
