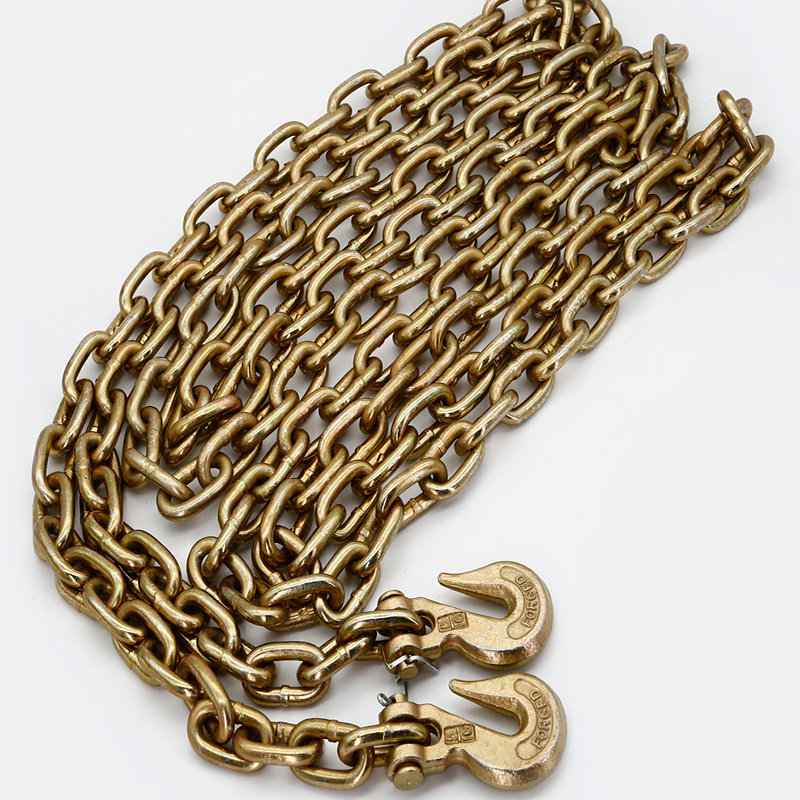

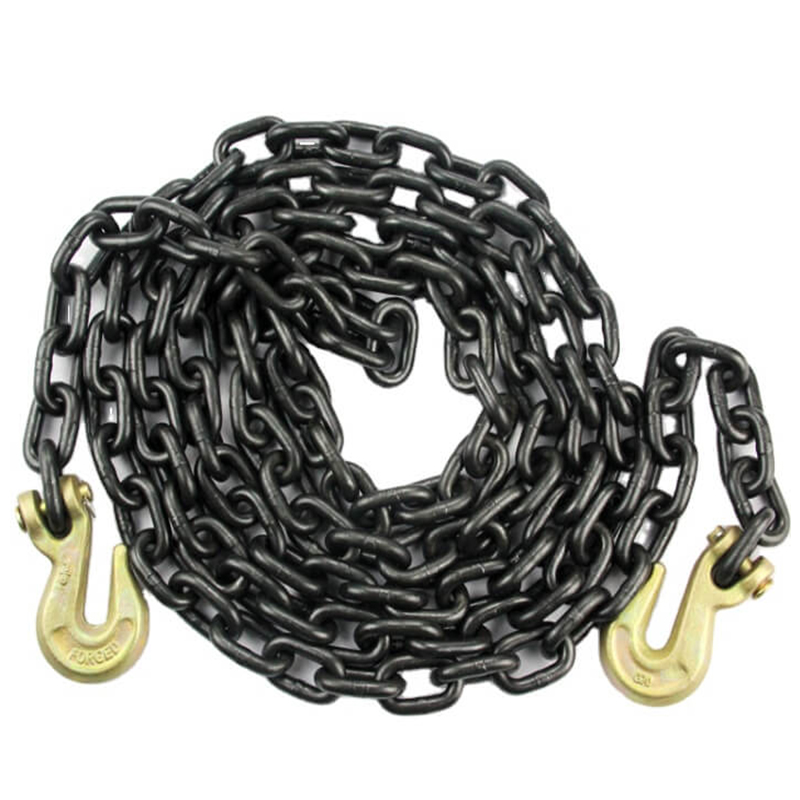

Grade 43 Tow Chain is a steel chain that possess greater tensile strength than Proof Coil Chain. Grade 43 Binder Chains typically has a 50% higher working load limit than Proof Coil or Grade 30 Chain. Grade 43 Towing Chain are also referred to as High Test Tow Chains, or Log Chains. Grade 43 Chain is NOT approved for overhead lifting. The Binder chains are supplied with a clevis grab hook on each end.
All of our Grade 43 Tow Chain is 100 percent Proof Tested. Certs available free of charge.
Please request at the time of order placement
| Size | 1/8” ~ 1” / 4mm ~ 26mm |
| Wll | 400 lbs ~ 17900 lbs / 180 kg ~ 8140kg |
| Surface | Self Colored; Galvanized; Hot Dip Galvanized, etc |
| Material | Premium Carbon Steel |
| Safety Factor | 4 Times of WLL |
| Size D | Inside Lenght A | Outside Width B | Working Load | Test Load | Breaking Load | Weight Per M | |||
| MM | +/-MM | MM | +/-MM | MM | +/-MM | KG | N | N | KG |
| 3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 |
| 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27 | |
| 5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43 | |
| 6 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63 | |
| 7 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86 | |
| 8 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1 | |
| 9 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
| 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75 |
| 11 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11 | |
| 12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
| 13 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95 | |
| 16 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45 | |
| 18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| 19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
| 20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7 | |
| 22 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55 | |
| 25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9 | |
| 28 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9 | |
| 32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2 | |
Standard: Grade 43 Towing Chain / Grade 43 Binder Chain
MOQ: 100 Meters
Package: Carton + Steel Pallet
