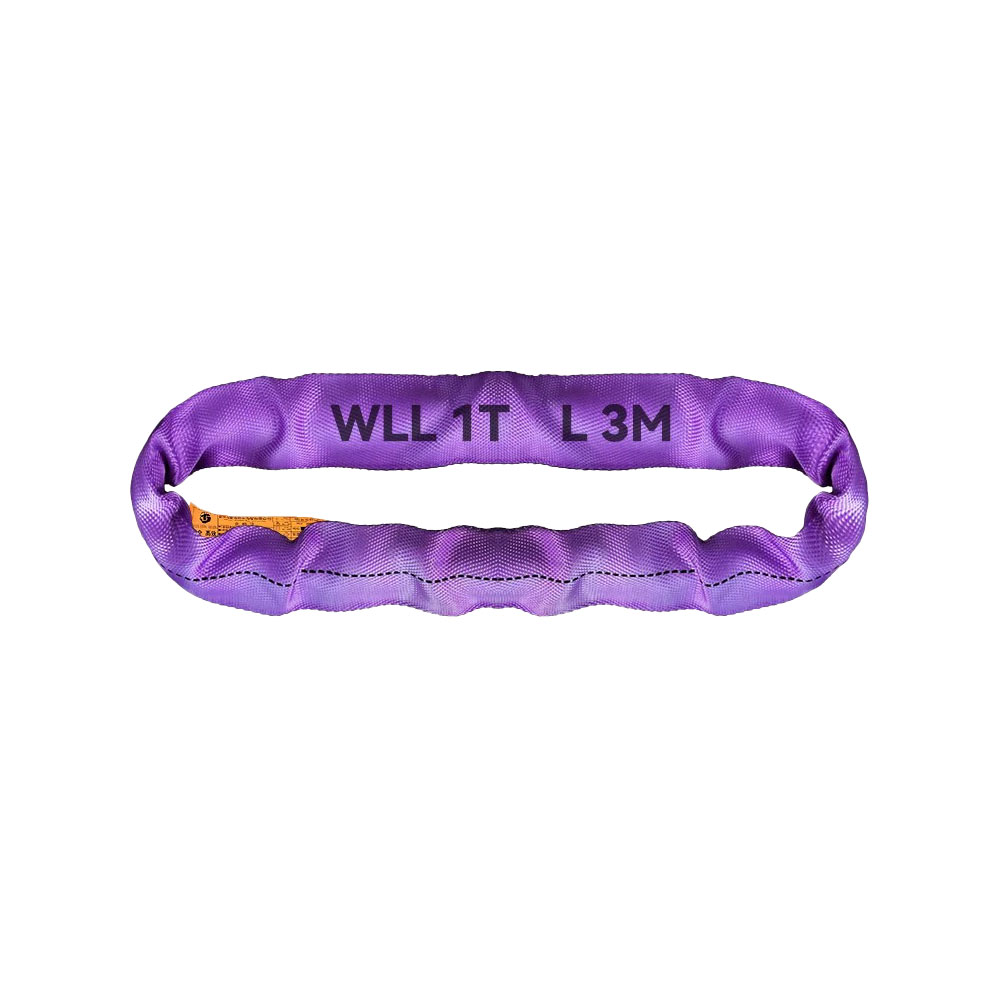

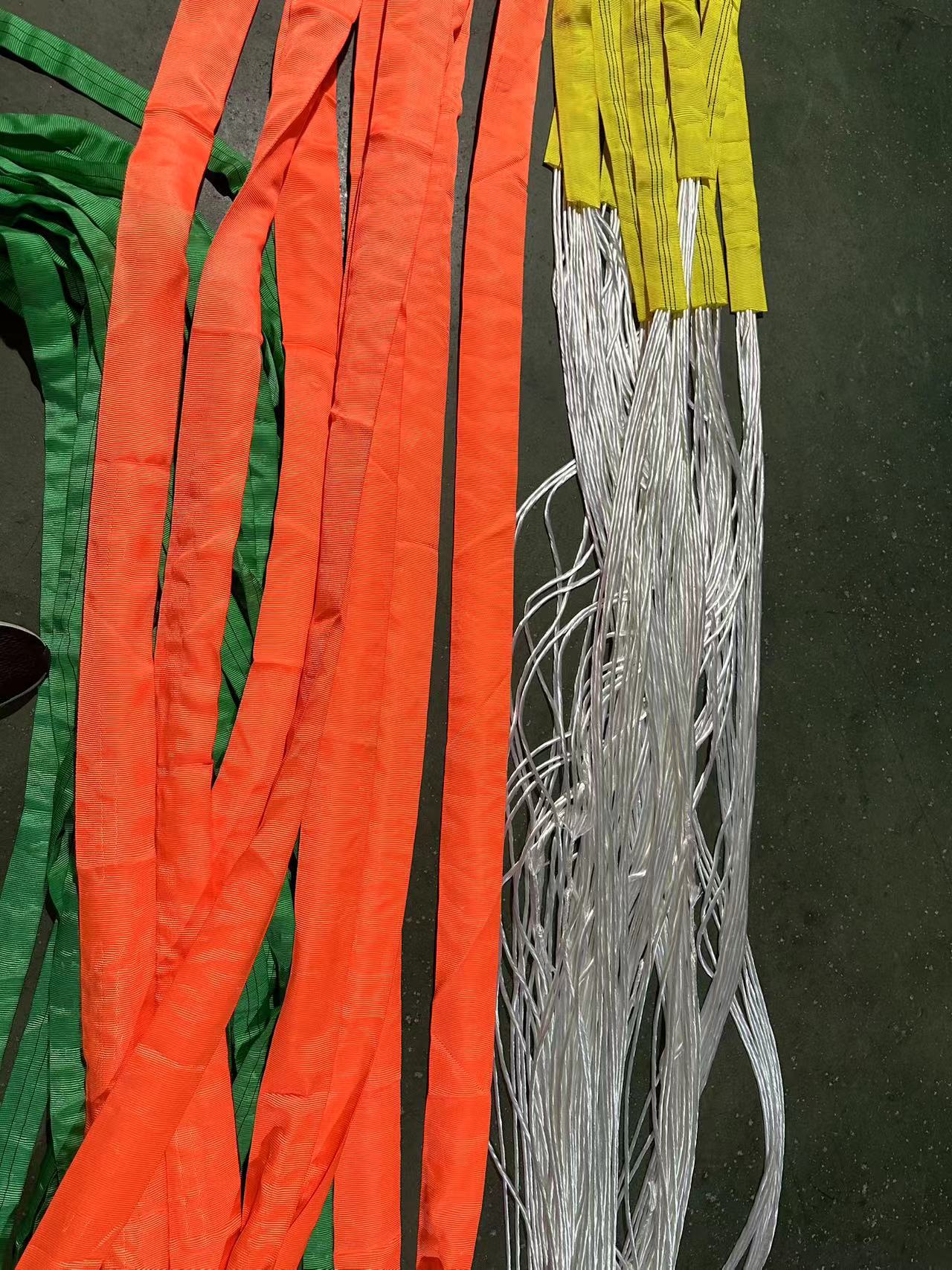

Polyester Round Lifting Slings are a type of sling. They consist of synthetic fibers and are suitable, for example, for lifting and transporting loads that have no attachment points of their own.Available in 1-10m lengths, our 1 ton round (endless) polyester lifting slings are proof load tested and have a 7:1 factor of safety.The endless lifting sling is made up with a seamless outer polyester cover and a core produced from a continuous hank of high-tenacity polyester. They are softer than duplex slings and kinder to delicate surfaces.
Advantages:
1.Flexiblehandling,sincetheshapecanbeadaptedtotheloadandtherespectiveusagerequirements
2.Protectionoftheload
3.Canbestoredinaverysmallspace
4.Notelectricallyconductive
RoundSlings:
1.Technicalspecifications
-ColourcodedaccordingtoEN1492-2.
2.Characteristics
-Lowelongation.
3.Norms
-AccordingtoMachineDirective98/37/EC.
-SafetyFactor:7:1
-SafetyFactorof6:1or5:1isavailableuponrequest
Size Color | Working Load Limit with 1 webbing sling (ton) | Working Load Limit with 2 webbing sling (ton) | |||||||||
Straight lift | Choked lift | Lift in different angle | Straight lift | Choked lift | Straight lift | Choked lift | |||||
0-7° | 7-45° | 45-60° | Up to 45° | 45-60° | 45° | 45° | 45-60° | 45-60° | |||
|
|
|
|
|
|
|
|
|
|
| |
Factor | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8 |
WLL 1T | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8 |
WLL 2T | 2.0 | 1.6 | 4.4 | 2.8 | 2.0 | 1.4 | 1.0 | 2.8 | 2.24 | 2.0 | 1.6 |
WLL 3T | 3.0 | 2.4 | 6.1 | 4.2 | 3.0 | 2.1 | 1.5 | 4.2 | 3.36 | 3.0 | 2.4 |
WLL 4T | 4.0 | 3.2 | 8.0 | 5.6 | 4.0 | 2.8 | 2.0 | 5.6 | 4.48 | 4.0 | 3.2 |
WLL 5T | 5.0 | 4.0 | 10 | 7.1 | 5.0 | 3.5 | 2.5 | 7.1 | 5.60 | 5.0 | 4.0 |
WLL 6T | 6.0 | 4.8 | 12 | 8.4 | 6.0 | 4.2 | 3.0 | 8.4 | 6.72 | 6.0 | 4.8 |
WLL 8T | 8.0 | 6.4 | 16 | 11.2 | 8.0 | 5.6 | 4.0 | 11.2 | 8.96 | 8.0 | 6.4 |
WLL 10T | 10 | 8.0 | 20 | 14.0 | 10 | 7.0 | 5.0 | 14.0 | 11.20 | 10 | 8.0 |
WLL 12T | 12 | 9.6 | 24 | 16.8 | 12 | 8.4 | 6.0 | 16.8 | 13.44 | 12 | 9.6 |
WLL 15T | 15 | 12 | 30 | 21.0 | 15 | 10.5 | 7.5 | 21.0 | 16.80 | 15 | 12 |
WLL 20T | 20 | 16 | 40 | 28.0 | 20 | 14.0 | 10 | 28.0 | 22.40 | 20 | 16 |
WLL 30T | 30 | 24 | 60 | 42.0 | 30 | 21.0 | 15 | 42.0 | 33.60 | 30 | 24 |
WLL 50T | 50 | 40 | 100 | 70.0 | 50 | 35.0 | 25 | 70.0 | 56.00 | 50 | 40 |
WLL 60T | 60 | 48 | 120 | 84.0 | 60 | 42.0 | 30 | 84.0 | 67.20 | 60 | 48 |
WLL 80T | 80 | 64 | 160 | 112 | 80 | 56.0 | 40 | 112 | 89.60 | 80 | 64 |
WLL 100T | 100 | 80 | 200 | 140 | 100 | 70.0 | 50 | 140 | 112.00 | 100 | 80 |
Q1: Do you have relevant certificate?
A1: We have TUV-CE certificate for most of our product, ISO9001 and ISO14001. Meanwhile, we have official quality test report for all products.
Q2: Can I have a sample for testing?
A2: Of course, You just need to pay for the express.
Q3: Can you provide OEM or ODM service?
A3: Yes we can.We can add your logo on the product.
Q4: Do you have inspection procedures for the manufacture line
A4: We have a complete testing process.
