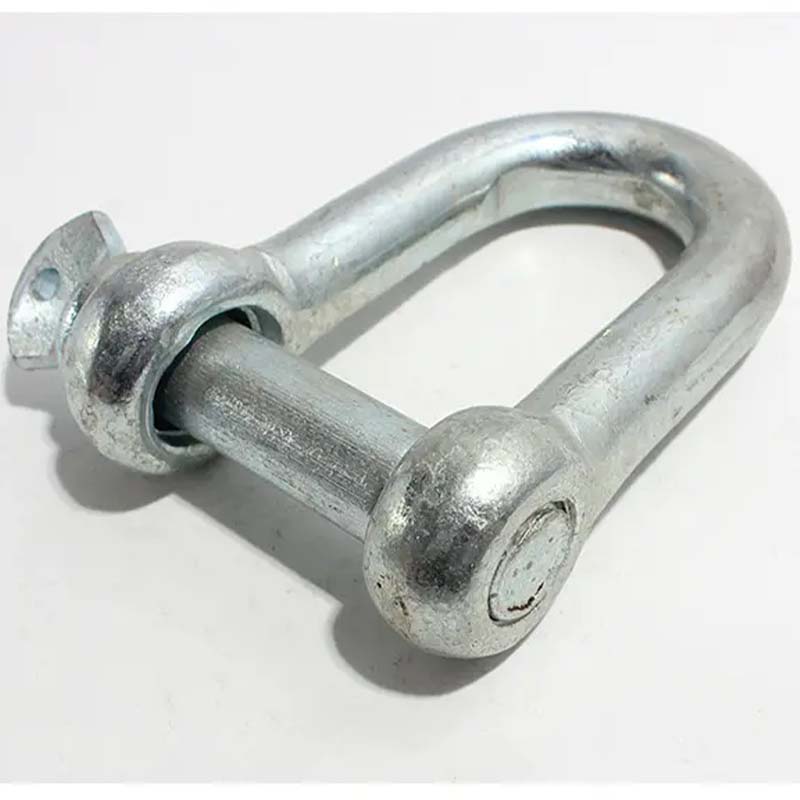

D-shackles are a type of hardware commonly used in marine, industrial and construction applications to connect ropes, cables, chains, and other types of load-bearing elements. They are called D-shackles because they are shaped like the letter “D”, with a rounded bow and a pin through the middle that serves as the pivot point.

In this article, we'll introduce the D-shackle and its various uses, as well as provide pictures to help you understand its design and how it works.

Uses of D-shackles:

Attaching ropes and cables to anchors, winches, and other pulling devices.

Securing loads during transportation.

Joining chains together.

Suspending heavy objects such as engines and hoists.

Design of a D-shackle: The design of a D-shackle is simple and efficient. The bow of the shackle is rounded and symmetrical, providing a secure attachment point for ropes and cables. The pin that runs through the middle of the shackle acts as a pivot point, allowing the shackle to rotate freely and reducing stress on the connecting elements.

Types of D-shackles:

Standard D-shackles.

Screw-pin D-shackles.

Quick-release D-shackles.

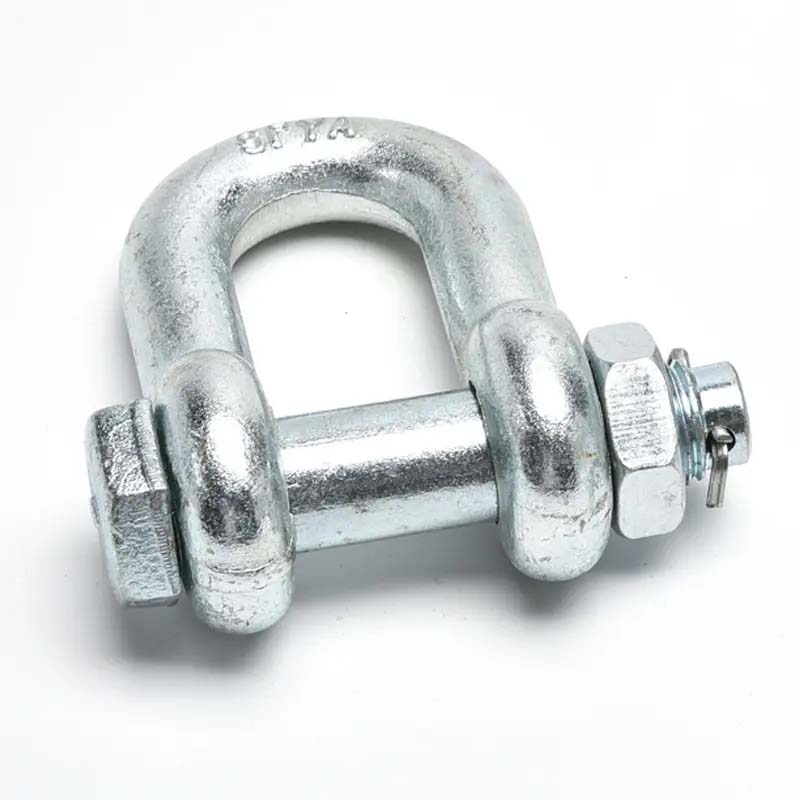

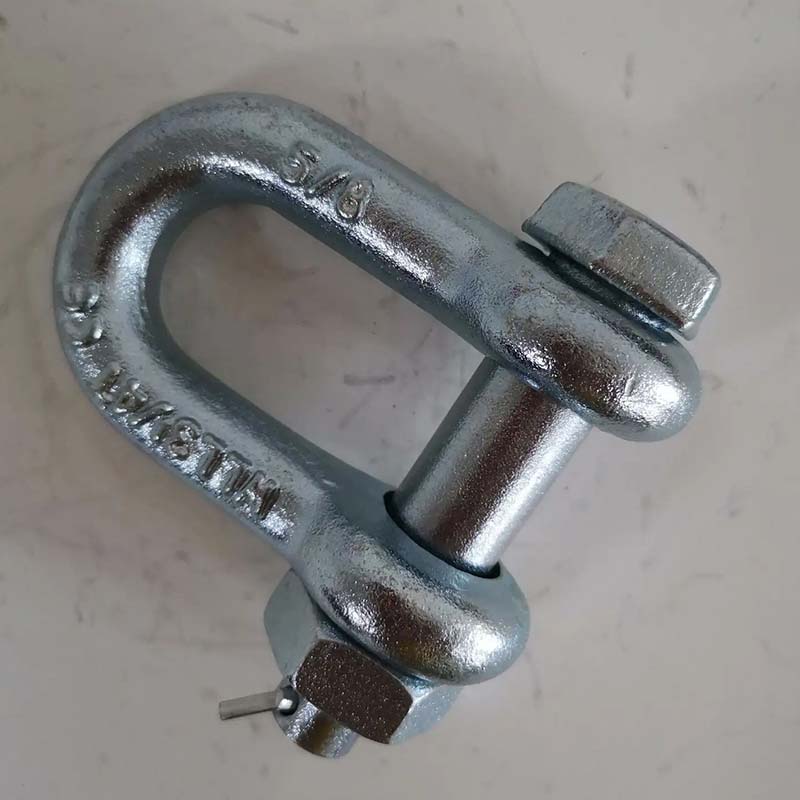

Safety bolt D-shackles.

Capacity: D-shackles are rated by their working load limit, which is the maximum weight they can safely support. It's important to choose a shackle that is rated for the weight of your load and to use the shackle correctly to ensure safe operation.

In conclusion, D-shackles are a versatile and durable type of hardware that are widely used in various applications. With its simple and efficient design, D-shackles provide a secure connection for ropes, cables, chains and other load-bearing elements. When selecting a D-shackle, it's important to choose the right size and capacity for your specific application, and to use the shackle correctly to ensure safe and reliable operation.
