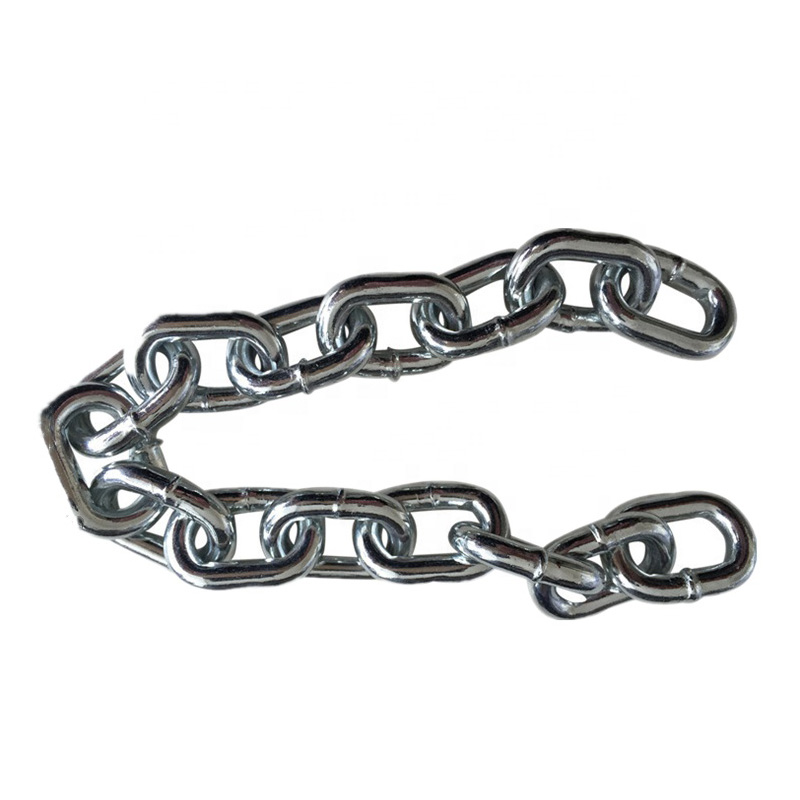

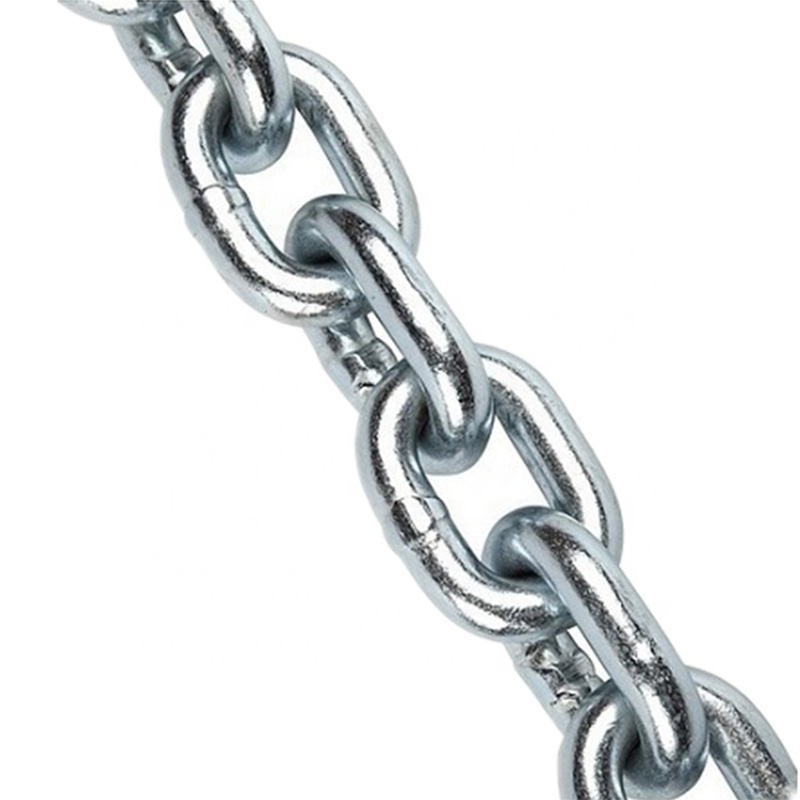

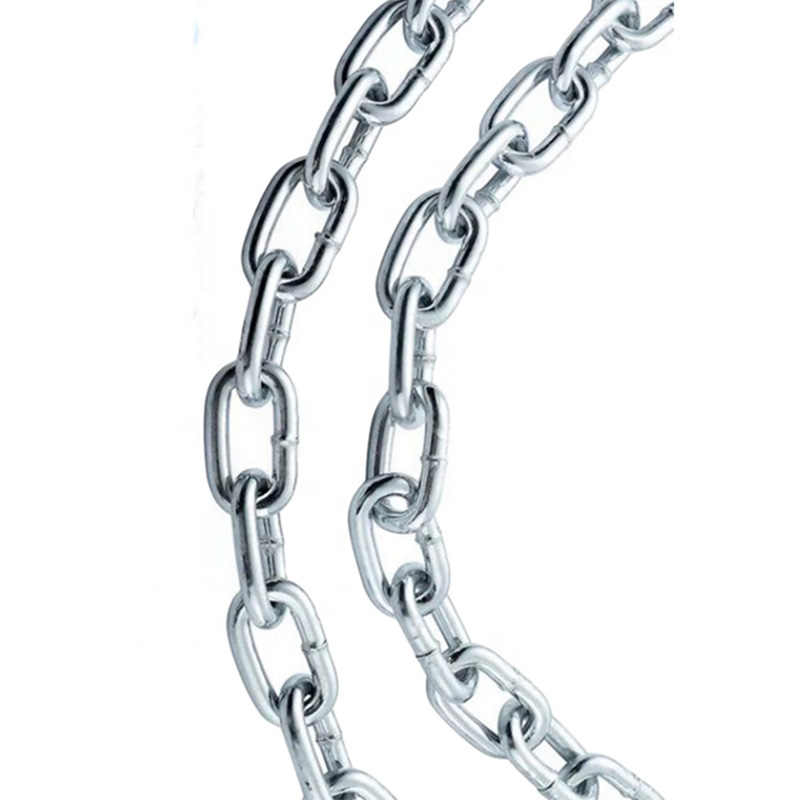

American Standard Hot Dip Galvanized Grade 43 High Test Chain ASTM 80

Grade 43 High Test chain is made from low carbon steel and is a general utility chain for such uses as farm, log chain, tow chain and switch chain.

G43 chain come in both long link (made to NACM specs) and short link (made to ASTM 80 specs). Long Link chain has a longer inside length to save weight and reduce cost. Both long and short link chain have the same strength ratings.

Generally short link chains are more flexible than long link chains.

The Metallurgy of High-Test Carbon Steel

The exceptional durability of the Grade 43 Chain begins with its base material. We utilize a specific grade of low-carbon alloy steel that has been optimized for weldability and toughness. The carbon content is precisely controlled to ensure that the chain remains "ductile because of the balanced ferrite-pearlite microstructure," allowing it to stretch and absorb energy before failure rather than snapping under sudden shock loads. This "high-quality material selection is critical because of the need to maintain structural integrity under the dynamic stresses of heavy-duty hauling."

Advanced Manufacturing: Electric Resistance Welding (ERW)

The strength of a chain is only as good as its weakest weld. TopOne Grade 43 chains are produced using state-of-the-art Electric Resistance Welding (ERW) technology. In this process, the ends of the formed links are pressed together while a high-frequency electric current is passed through the contact point. This creates "localized heating and subsequent molecular fusion because of the resistance to the electrical flow." Unlike traditional forge welding, ERW produces a "clean, high-strength weld because of the absence of external filler metals and the precision control of the heat-affected zone (HAZ)." This ensures that the weld area is as strong as, or stronger than, the parent metal.

The Science of Electro-Galvanization

The Electro Galvanized finish is more than just a cosmetic choice. It is a sophisticated electrochemical process where the chain is submerged in a zinc-salt electrolyte bath. An electric current causes zinc ions to migrate and bond to the surface of the steel. This creates a "uniform protective layer because of the consistent current density across the link surface." This coating is "wear-resistant because of the metallurgical bond formed at the atomic level," providing a sacrificial barrier that prevents rust. While hot-dip galvanizing is thicker, electro-galvanizing is preferred for "precision applications because of the smooth surface that prevents binding in pulleys or tight-clearance hardware."

Durability and Environmental Resistance

• Impact Toughness: The Grade 43 chain is designed to withstand the "abrasive environments of logging and construction because of the surface hardness achieved during the cold-forming process."

• Fatigue Resistance: Engineered to handle thousands of tension cycles, the chain "resists stress-corrosion cracking because of the uniform grain structure of the high-test steel."

• Aesthetic Longevity: The bright, silver-like finish "remains visually appealing over time because of the high-purity zinc used in the plating process," which resists dulling in indoor or covered outdoor storage.

Grade of Chain: NACM (National Association of Chain Manufacturers & ASTM (American Society for Test Materials) classify chains in various grades. The higher the grade, the higher the working load limit for the same size of chain.

Working Load Limit (WLL): (rated capacity) Is the maximum working load that should be applied In direct tension to an undamaged straight length of chain.

Proof Test: (manufacturing test force) Is a term designating the minimum tensile force which has been applied to a chain under a constantly increasing force In direct tension during the manufacturing process. These loads are manufacturing integrity tests and shall not be used as criteria for service or design purpose.

Minimum Breaking Force: The minimum force at which the chain during manufacture has been found by testing to break when a constantly increasing force is applied in direct tension. Breaking force values are not guarantees that all chain segments will endure these loads. This test is a manufacturer’s attribute acceptance test and SHALL NOT be used as criteria for service and design purpose.

Overhead Lifting: The process of lifting that would elevate a freely suspended load to such a position that dropping a load would present a possibility of bodily injury or Property damage.

International Compliance and Certification

The Grade 43 Chain Electro Galvanized Finish is manufactured and tested to meet or exceed the most stringent global standards for industrial chain:

• NACM Specifications: National Association of Chain Manufacturers - The primary standard for welded steel chain in North America.

• ASTM A413 / A413M: Standard Specification for Carbon Steel Chain.

• ISO 1834: Short link chain for lifting purposes - General conditions of acceptance (Modified for Grade 43 utility use).

• ISO 9001: Quality Management Systems - Ensuring "consistent manufacturing quality because of the rigorous batch testing and process documentation."

Rigorous Testing Procedures

• 100% Proof Testing: Every foot of chain is proof loaded to 2 times the WLL during the manufacturing process. This "verifies the integrity of every weld because of the application of a controlled tensile force."

• Destructive Breaking Test: Samples from every production lot are tested to destruction to ensure they "meet the 3:1 safety factor because of the verification of the ultimate tensile strength."

• Elongation Test: The chain must demonstrate a minimum elongation (typically 15%) before failure. This "ensures the chain is ductile because of the ability of the links to deform under extreme overload, providing a visual warning before failure."

• Bend Testing: Links are subjected to a 180-degree bend test to ensure "weld ductility because of the absence of cracking in the heat-affected zone."

Safety, Maintenance, and Inspection

• Overhead Lifting Warning: Grade 43 chain is NOT approved for overhead lifting. For lifting applications, always use Grade 80, 100, or 120 alloy steel chain.

• Pre-Use Inspection: Inspect the chain for "nicks, gouges, or excessive wear because of the potential for localized stress concentrations."

• Wear Limits: Remove the chain from service if the diameter of any link is reduced by more than 10% of its original dimension.

• Corrosion Management: While the electro-galvanized finish is durable, "long-term exposure to saltwater or acidic environments will eventually deplete the zinc layer." For marine environments, consider TopOne's Hot-Dip Galvanized or Stainless Steel options.

• Twisting and Knotting: Never use a chain that is twisted or knotted, as this "reduces the effective strength because of the introduction of bending stresses on the links."

Standard: Grade 43 Chain Electro Galvanized Finish

MOQ: 100 Meters

Package: Carton + Steel Pallet
