The Grade 100 Bushing & Pin Repair Kit represents a critical maintenance solution for industrial lifting operations that depend on Grade 100 chain systems. Unlike complete chain replacement, which can be economically prohibitive and operationally disruptive, this specialized repair kit enables targeted restoration of worn or damaged chain components, extending the operational life of existing chain systems while maintaining full compliance with international safety standards.

Grade 100 chain, which achieves its exceptional strength through a combination of alloy steel composition (specified in DIN 17115) and precision heat treatment (governed by EN 818-1), experiences predictable wear patterns under continuous use. The bushing—the cylindrical bearing surface that allows the chain links to articulate smoothly—and the pin—the axial component that connects adjacent links—are the primary wear points in any chain system. When these components degrade, they compromise the chain's ability to mesh properly with sprockets, leading to accelerated wear, reduced load capacity, and potential safety hazards.

The Grade 100 Bushing & Pin Repair Kit addresses this challenge by providing precision-manufactured replacement components that restore the chain to its original performance specifications. Each component in the kit is manufactured from the same alloy steel formulation as the original chain and subjected to identical heat treatment processes, ensuring dimensional accuracy and mechanical consistency. This is not a generic repair solution; it is a precision engineering product designed specifically for Grade 100 chain systems.

Why Bushings and Pins Fail

The bushing and pin experience continuous mechanical stress during chain operation. The bushing rotates against the pin as the chain articulates around sprockets, creating friction and wear. Over time, this wear manifests as:

• Increased pitch tolerance: The distance between links gradually increases, causing the chain to lose its precise fit with the sprocket.

• Surface degradation: The hardened surface of the bushing wears, reducing its ability to support load distribution.

• Pin wear: The pin's cylindrical surface develops micro-fractures and wear patterns that reduce its structural integrity.

• Loss of rotational freedom: Worn bushings and pins create binding and resistance, increasing mechanical stress on the entire chain.

A Grade 100 chain operating with worn bushings and pins does not fail catastrophically; instead, it degrades gradually, becoming increasingly dangerous. The chain may slip on sprockets, creating shock loads that exceed the design parameters. It may jam, causing sudden stops that generate dynamic forces far exceeding the static working load limit. These conditions create an unpredictable safety environment.

The Solution: Precision Replacement Components

The Grade 100 Bushing & Pin Repair Kit provides a targeted solution to this problem. By replacing only the worn components—rather than the entire chain—operators can:

1 Restore precise chain geometry: New bushings and pins restore the chain's original pitch tolerance, ensuring smooth engagement with sprockets.

2 Recover load capacity: Worn components reduce the chain's effective load-bearing capacity. Replacement restores the chain to its certified working load limit.

3 Extend service life: A chain with worn bushings and pins can often be restored to full operational capability, extending its service life by years.

4 Reduce operational downtime: Targeted component replacement is faster and less disruptive than complete chain replacement.

5 Maintain safety compliance: Each component is manufactured to the same specifications as the original chain, ensuring compliance with ASTM A952 and EN 818-7 standards.

Material Composition and Manufacturing Process

The bushings and pins in this kit are manufactured from fully killed, fine-grain alloy steel that meets the requirements of DIN 17115. This material specification ensures:

• Controlled carbon content: Typically 0.35-0.45% carbon, providing the optimal balance of strength and toughness.

• Alloy element additions: Chromium (0.5-0.8%), nickel (0.3-0.6%), and molybdenum (0.15-0.25%) enhance strength, wear resistance, and impact toughness.

• Strict impurity limits: Sulfur and phosphorus are limited to less than 0.035% each, preventing embrittlement and ensuring consistent material properties.

• Aluminum deoxidation: Ensures the steel is fully killed, eliminating gas porosity and ensuring uniform mechanical properties.

After forming, each bushing and pin undergoes precision heat treatment (quenching and tempering) as specified in EN 818-1. This process:

6 Austenitizes the material at precisely controlled temperatures (typically 850-900°C), dissolving the alloy elements into the iron matrix.

7 Quenches rapidly in oil or water to transform the austenite into martensite, creating the high-strength microstructure.

8 Tempers at controlled temperature (typically 400-500°C) to relieve internal stresses and optimize toughness while maintaining strength.

The result is a component with a hardness of approximately 45-50 HRC (Rockwell hardness), providing the optimal combination of strength and wear resistance for continuous chain articulation.

Dimensional Precision and Interchangeability

Grade 100 chain systems are engineered to extremely tight tolerances. The Grade 100 Bushing & Pin Repair Kit maintains these tolerances through precision manufacturing:

• Bushing outer diameter: Machined to ±0.01 inches (±0.25 mm) to ensure proper fit within the chain link.

• Bushing inner diameter: Machined to ±0.005 inches (±0.13 mm) to ensure precise fit on the pin.

• Pin diameter: Machined to ±0.005 inches (±0.13 mm) to ensure smooth rotation within the bushing.

• Pin length: Machined to ±0.01 inches (±0.25 mm) to ensure proper link spacing.

These tolerances are not arbitrary; they are engineered to maintain the chain's pitch accuracy (the distance between pins), which is critical for smooth engagement with sprockets. A chain with worn bushings and pins may have pitch variations exceeding 0.05 inches (1.27 mm) over a 10-link section. Replacement components restore this pitch accuracy to less than 0.02 inches (0.51 mm).

Installation and Maintenance Guidance

Proper Installation Procedure

To ensure optimal performance and safety, follow these installation guidelines:

1 Inspect the chain: Before installing replacement bushings and pins, inspect the chain for other damage. If links are cracked, bent, or show signs of corrosion, the chain should be replaced rather than repaired.

2 Remove the old bushing and pin: Use a chain breaker tool to carefully remove the old bushing and pin. Avoid damaging the chain link itself.

3 Clean the link: Remove any debris, rust, or corrosion from the chain link cavity where the new bushing and pin will be installed.

4 Install the new bushing: Insert the new bushing into the chain link cavity. Ensure it is fully seated and aligned with the link.

5 Install the new pin: Insert the new pin through the bushing. The pin should slide smoothly with minimal resistance. If resistance is encountered, do not force the pin; instead, check for misalignment or debris.

6 Verify alignment: Ensure the pin is fully seated and the bushing is properly aligned. The chain should articulate smoothly without binding.

7 Test the articulation: Manually flex the chain to verify smooth articulation. There should be no grinding sounds or resistance.

Maintenance After Installation

After installing replacement bushings and pins:

• Monitor the chain: Observe the chain during initial operation for any signs of binding, slipping, or unusual noise.

• Lubricate appropriately: Apply the same lubricant that was used on the original chain. Do not over-lubricate, as excess lubricant can attract debris.

• Inspect regularly: Periodically inspect the repaired chain for signs of wear or damage. If additional components show signs of wear, consider replacing them as well.

• Document the repair: Maintain records of the repair, including the date, components replaced, and any observations about chain condition.

Available Sizes

The Grade 100 Bushing & Pin Repair Kit is available in multiple sizes to accommodate different Grade 100 chain specifications. Each size is specifically engineered for a particular chain diameter and working load limit.

Material Specifications

Dimensional Specifications

Performance Characteristics

Kit Contents

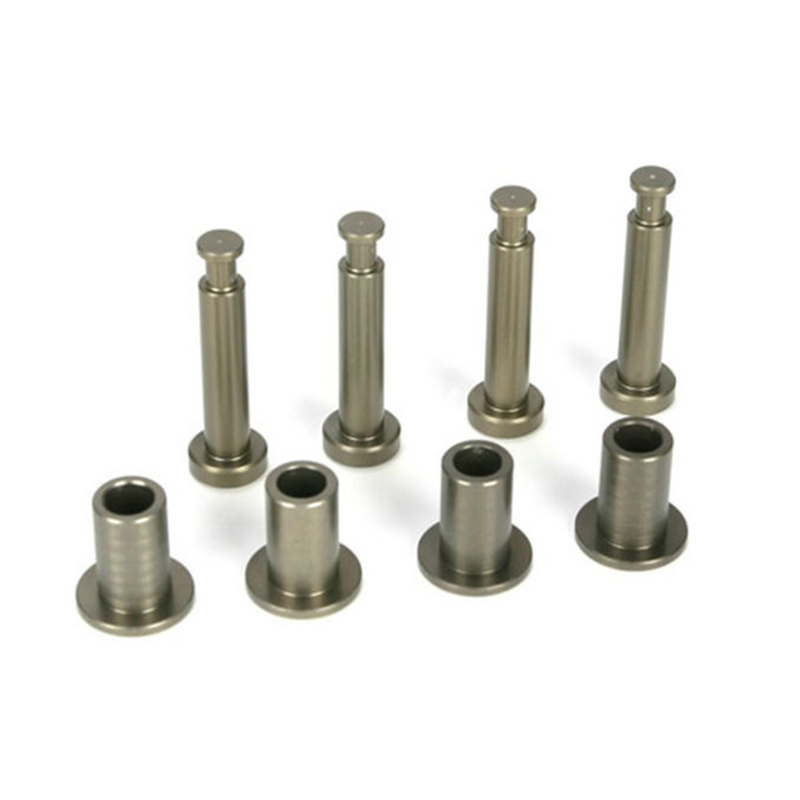

Each Grade 100 Bushing & Pin Repair Kit includes:

• Replacement Bushings: Quantity varies by chain size (typically 4-10 bushings per kit)

• Replacement Pins: Quantity varies by chain size (typically 4-10 pins per kit)

• Installation Instructions: Detailed guidance on proper installation and alignment

• Material Certification: Documentation confirming compliance with DIN 17115

• Test Report: Proof load test documentation confirming component integrity

The Grade 100 Bushing & Pin Repair Kit is engineered and manufactured in full compliance with the following international standards:

ASTM A952 - Standard Specification for Chain, Welded, Double Loop, Alloy Steel, for Lifting

ASTM A952 is the primary American standard governing Grade 100 chain systems. This standard specifies:

• Material requirements: Alloy steel composition with specific carbon, chromium, nickel, and molybdenum content ranges

• Manufacturing requirements: Welding parameters, heat treatment specifications, and dimensional tolerances

• Testing requirements: Proof load testing, tensile testing, and hardness verification

• Design factors: Minimum 4:1 design factor for Grade 100 chain

• Certification: Requirement for material certification and test reports

The bushings and pins in this kit meet or exceed all material and dimensional requirements specified in ASTM A952 Section 3 (Material) and Section 5 (Dimensions).

EN 818-7 - Short Link Chain for Lifting Purposes — Safety — Part 7: Fine Tolerance Hoist Chain, Grade T (Types T, DAT and DT)

While EN 818-7 is primarily focused on hoist chains, it establishes the European standard for fine tolerance chain systems. Key provisions relevant to this kit include:

• Material specification: References DIN 17115 for alloy steel composition

• Heat treatment: Specifies quenching and tempering parameters to achieve required hardness

• Dimensional tolerances: Establishes the tight tolerances required for smooth chain operation

• Proof load testing: Requires 100% proof load testing of chain components

• Design factor: Specifies minimum 4:1 design factor

The bushings and pins in this kit comply with EN 818-7 dimensional and material requirements, ensuring compatibility with both American and European Grade 100 chain systems.

DIN 17115 - Steel for Welded Round Steel Link Chains - Technical Conditions of Delivery

DIN 17115 is the German material standard that specifies the alloy steel composition for chain applications. This standard requires:

• Fully killed steel: Deoxidized with aluminum to eliminate gas porosity

• Fine-grain structure: Achieved through controlled rolling and heat treatment

• Specific alloy content: Carbon (0.35-0.45%), chromium (0.5-0.8%), nickel (0.3-0.6%), molybdenum (0.15-0.25%)

• Strict impurity limits: Sulfur and phosphorus ≤ 0.035% each

• Material certification: Requirement for certified mill test reports

The bushings and pins in this kit are manufactured from steel that meets or exceeds DIN 17115 specifications, with full material certification provided.

EN 818-1 - Short Link Chain for Lifting Purposes — Safety — Part 1: General Conditions of Acceptance

EN 818-1 establishes the general requirements for chain manufacturing, including:

• Welding specifications: Parameters for welding chain links to ensure full strength

• Heat treatment: Quenching and tempering procedures to achieve required hardness and toughness

• Dimensional tolerances: Specifications for link dimensions and pitch accuracy

• Testing procedures: Proof load testing, tensile testing, and hardness verification

• Documentation: Requirements for test reports and material certification

The manufacturing process for bushings and pins in this kit follows EN 818-1 specifications for heat treatment and quality control.

Certification and Testing

100% Proof Load Testing

Each bushing and pin in the kit undergoes individual proof load testing to verify structural integrity. The proof load is set at 2.5 times the chain's working load limit for the corresponding chain size. For example:

• 5/8" Grade 100 chain (WLL: 22,600 lbs) → Proof load: 56,500 lbs per component

• 1" Grade 100 chain (WLL: 58,000 lbs) → Proof load: 145,000 lbs per component

This non-destructive test is designed to expose any hidden material defects, welding flaws, or manufacturing defects that could lead to premature failure. Any component showing permanent deformation or other signs of failure is immediately rejected.

Material Certification

Each kit includes a material certification document that verifies:

• Chemical composition: Certified analysis confirming compliance with DIN 17115

• Mechanical properties: Tensile strength, yield strength, elongation, and impact toughness

• Heat treatment parameters: Documentation of quenching and tempering temperatures

• Hardness verification: Surface hardness measurements confirming 45-50 HRC range

Dimensional Verification

Each bushing and pin is dimensionally verified using precision measuring instruments:

• Micrometers: For critical diameters (±0.005 inches tolerance)

• Calipers: For lengths and overall dimensions (±0.01 inches tolerance)

• Surface profilometer: For surface finish verification (Ra 0.4-0.8 µm)

Design Factor and Safety

The Grade 100 Bushing & Pin Repair Kit maintains the 4:1 design factor that is fundamental to Grade 100 chain systems. This design factor means:

• The chain's certified minimum breaking force is at least 4 times its working load limit

• The bushings and pins are engineered to support this 4:1 safety margin

• When properly installed, a chain restored with these components will perform at the same safety level as a new chain

Regulatory Compliance

The Grade 100 Bushing & Pin Repair Kit is designed for use in lifting applications that are subject to regulatory oversight in many jurisdictions:

• OSHA (United States): Complies with 29 CFR 1910.184 (Slings and Rigging Hardware)

• CSA (Canada): Complies with CSA B335 (Safety Code for Rigging)

• EU Machinery Directive: Complies with 2006/42/EC requirements for lifting equipment

• Australian Standards: Complies with AS 1418.1 (Cranes, Hoists and Winches)
