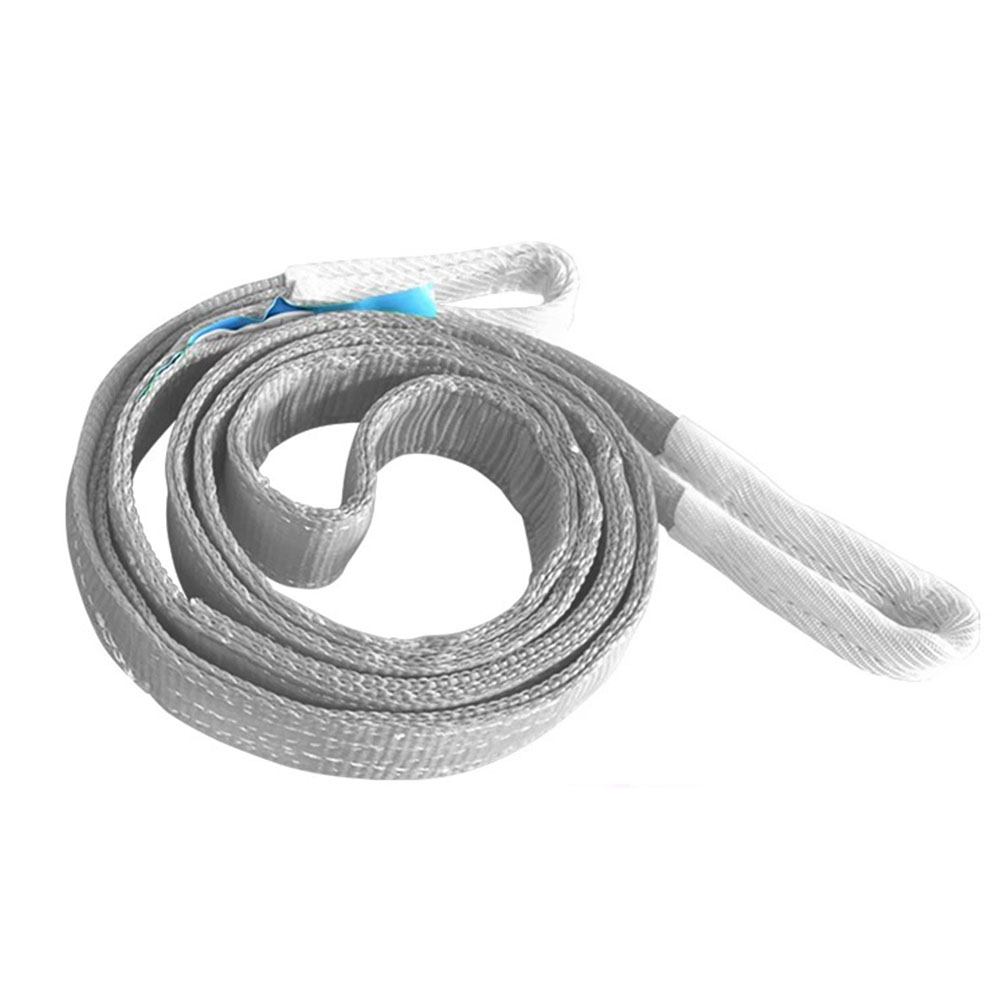

Flat webbing sling is a top - notch solution for lifting jobs. Its Polyester construction guarantees strength. We offer safety factors from 5:1 to 8:1, and it complies with GS and CE requirements. You can customize the length, making it suitable for diverse applications.
Size Color | Width (mm) | Working Load Limit with 1 webbing sling (kg) | Working Load Limit with 2 webbing sling (kg) | |||||||
Straight lift | Choked lift | Lift in different angle | Straight lift | Choked lift | Straight lift | Choked lift | ||||
0-7° | 7-45° | 45-60° | 45° | 45° | 45-60° | 45-60° | ||||
|
|
|
|
|
|
|
|
| ||
Factor | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 | |
WLL 1T | 30 | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800 |
WLL 2T | 50 | 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600 |
WLL 3T | 75 | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400 |
WLL 4T | 100 | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200 |
WLL 5T | 125 | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000 |
WLL 6T | 150 | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800 |
WLL 8T | 200 | 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400 |
WLL 10T | 250 | 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000 |
WLL 12T | 300 | 12000 | 9600 | 24000 | 16800 | 12000 | 16800 | 13440 | 12000 | 9600 |
ISO4878, EN1492-1/2:2000,ASME B30.9-2003,EN12195-2:2000
Warning
1.Failure to comply with this warning may result in serious load
damageand death or injury.
2.Use only if trained.
3.Can fail if damaged, misused or overloaded.
4.Inspect sling for damage before each use.
5.Always protect sling webbing from sharp edges of load.
6.Do not attempt to use sling above rated lifting capacity.
7.Do not use sling if rated capacity tag is removed or unreadable.
8.Avoid acid, alkali and sunlight.
9.Do not tie knots in sling webbing as strength is greatly reduced.
10.Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear,or other defects.
