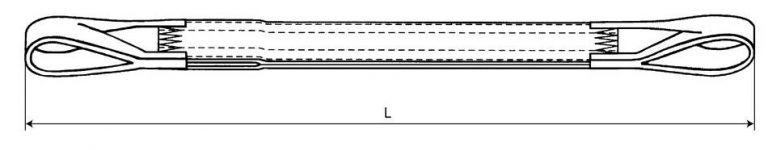

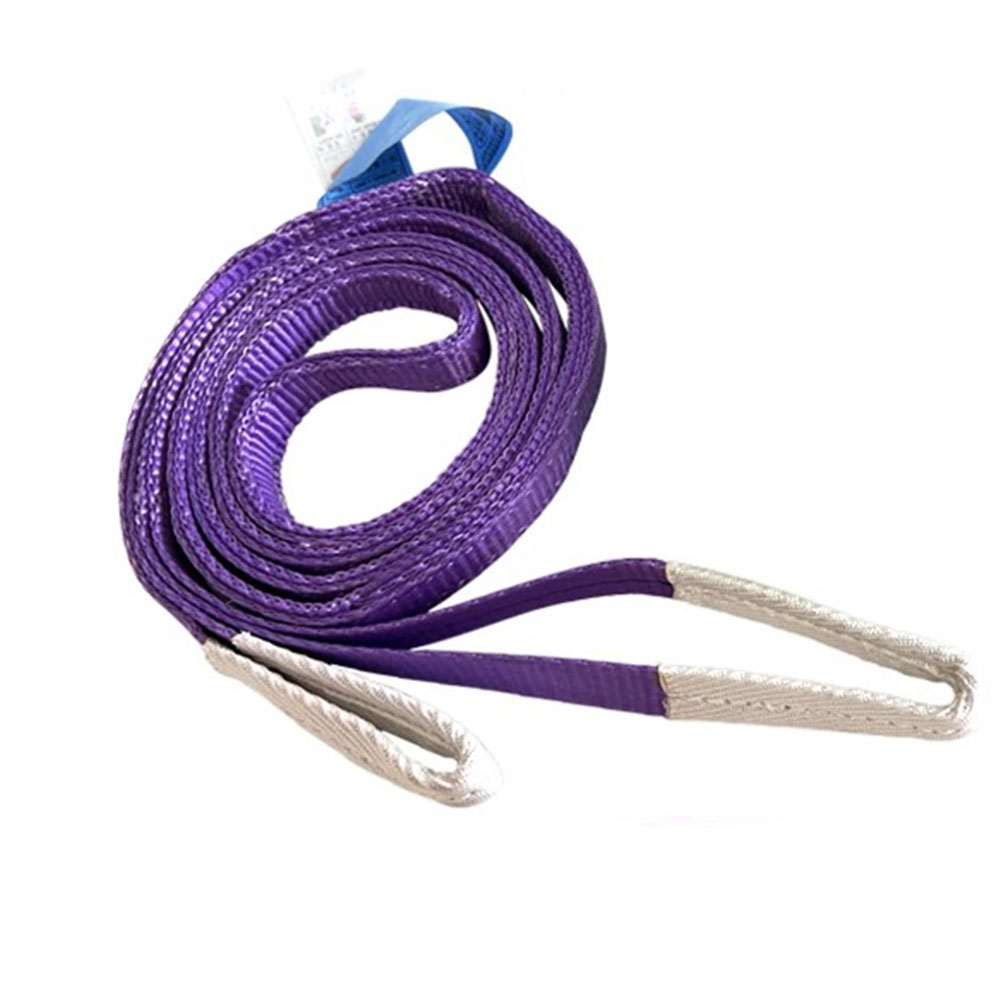

Polyster flat webbing sling is also called Duplex eye-eye webbing sling.It is made of Polyester, Nylon, Polypropylene.We can provide the products that the safety factor includs 5:1,6:1,7:1,8:1.It meets the safety requirements of GS,CE.Clients can choose specific length according to specific requirements.The color can be coded so as to easily recognize the right websling for the accurate purpose
Working Load Limit (WLL): 1000kg.
Width:25/30/50mm.
According to EN1492-1: 2000, ASME B30.9, AS1353-1.
Strong, flexible & lightweight.
Polyester construction.
High resistance to abrasion.
Safety factor available: 5:1, 6:1, 7:1, 8:1.
With reinforced lifting eyes.
Length available: 1m to 20m.
Complied with GS CE safety require.

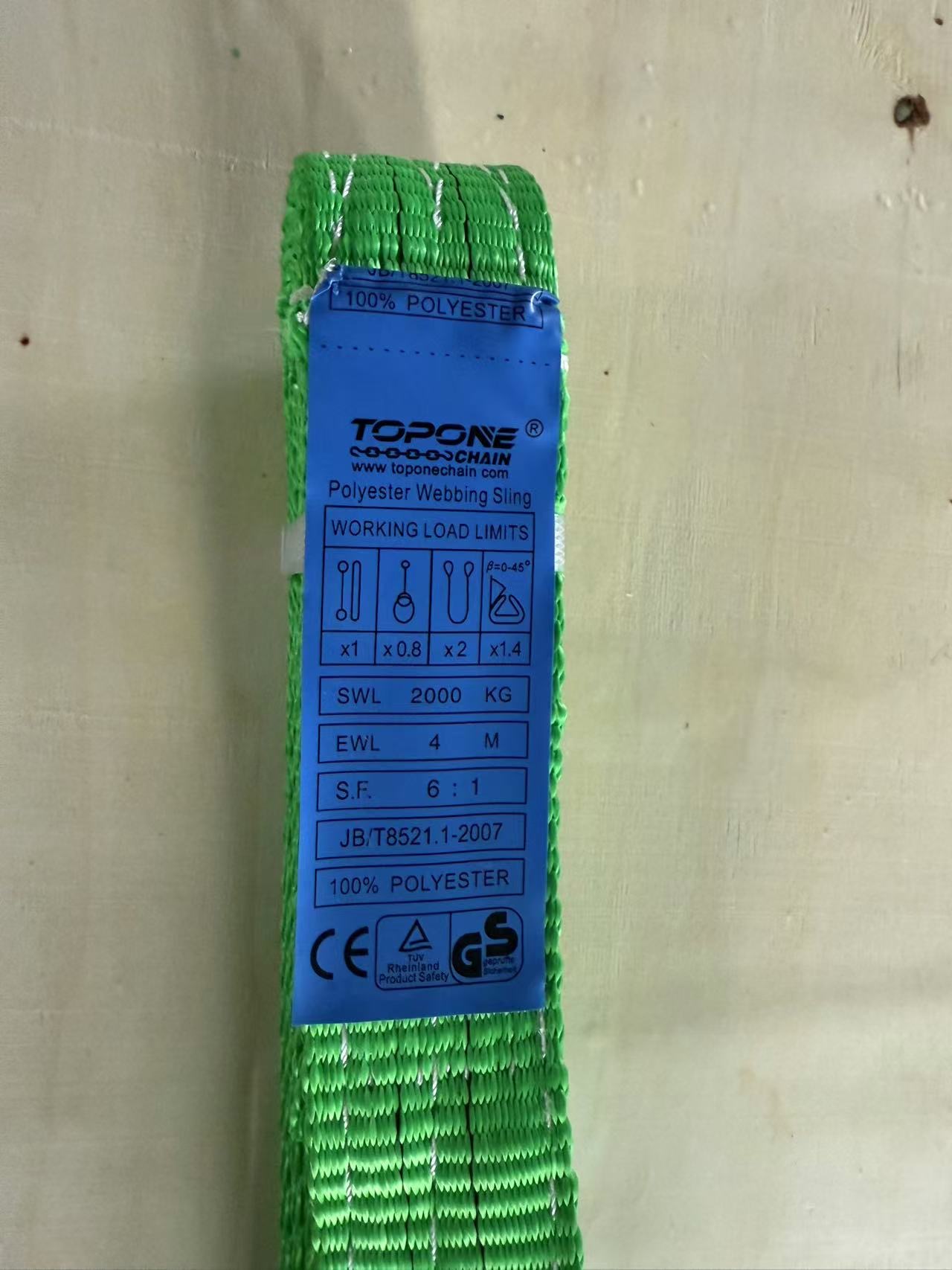

Each sling is proof tested, individually serial numbered, tagged and complete with Test Certificate.
Size Color | Width (mm) | Working Load Limit with 1 webbing sling (kg) | Working Load Limit with 2 webbing sling (kg) | |||||||
Straight lift | Choked lift | Lift in different angle | Straight lift | Choked lift | Straight lift | Choked lift | ||||
0-7° | 7-45° | 45-60° | 45° | 45° | 45-60° | 45-60° | ||||
|
|
|
|
|
|
|
|
| ||
Factor | 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 | |
WLL 1T | 30 | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800 |
WLL 2T | 50 | 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600 |
WLL 3T | 75 | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400 |
WLL 4T | 100 | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200 |
WLL 5T | 125 | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000 |
WLL 6T | 150 | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800 |
WLL 8T | 200 | 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400 |
WLL 10T | 250 | 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000 |
WLL 12T | 300 | 12000 | 9600 | 24000 | 16800 | 12000 | 16800 | 13440 | 12000 | 9600 |
ISO4878, EN1492-1/2:2000,ASME B30.9-2003,EN12195-2:2000
Warning
1.Failure to comply with this warning may result in serious load
damageand death or injury.
2.Use only if trained.
3.Can fail if damaged, misused or overloaded.
4.Inspect sling for damage before each use.
5.Always protect sling webbing from sharp edges of load.
6.Do not attempt to use sling above rated lifting capacity.
7.Do not use sling if rated capacity tag is removed or unreadable.
8.Avoid acid, alkali and sunlight.
9.Do not tie knots in sling webbing as strength is greatly reduced.
10.Do not use sling if there are any signs of cut webbing, heat or chemical damage, excessive wear,or other defects.
